2D-20 - ELECTRICAL 90-824052R3 JUNE 2002

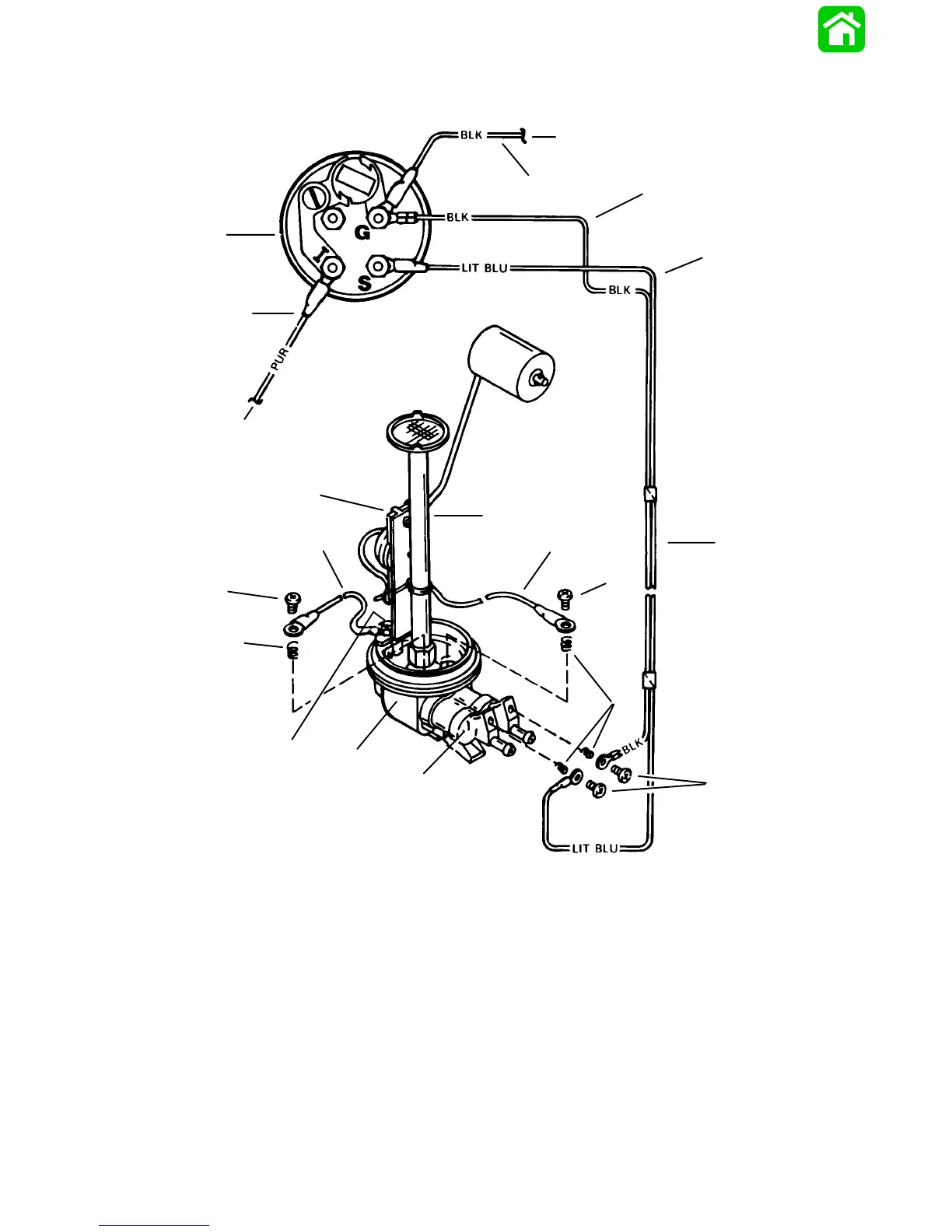

Oil Level Gauge Wiring Diagram
a
b
c
i
o
m
n
j
k
l
h
g
f
p
q
r
s
t
e
d
a - To 12 Volt Source
b - PURPLE Wire (Connect to Trim Indicator Gauge “I” [or
POSITIVE (+) 12 Volt Source that is Turned “ON” and
“OFF” with Ignition Switch])
c - Oil Level Gauge
d - BLACK Wire (Connects to NEGATIVE Ground)
e - To Ground
f - BLACK Wire (From Gauge to Oil Clip Connector)
g - LIGHT BLUE Sender Lead to Gauge
h - Wiring Harness (LT. BLU. and BLACK)
i - Screw (10-16 x 5/8 in.)
j - Spring
k - Oil Clip Connector
l - Adaptor Housing
m - Screw (10-16 x 1/4 in.)
n - Spring
o - Screw (10-16 x 5/8 in.)
p - BLACK Wire
q - Oil Level Sender Unit
r - Oil Pick-Up Tube
s - WHITE Lead (from Oil Level Sender)
t - Screw (10-16 x 5/8 in.)
