90-824052R3 JUNE 2002 ATTACHMENTS/CONTROL LINKAGE - 7-13
RideGuide Steering Cable/
Attaching Kit Installation
(92876A6)
Dual Cable - Dual Outboard
WARNING
Quicksilver Super RideGuide Steering (dual
cables) MUST BE USED with this attaching kit.
Failure to adhere to this requirement could result
in steering system failure.
Refer to “Quicksilver Accessories Guide” to
determine correct length of steering cable and
remote control cables.
IMPORTANT: Steering cable and remote control
cables MUST BE THE CORRECT LENGTH, sharp
bends on too-short cables result in “kinks”;
too-long cables require unnecessary bends and/
or loops. Both conditions place extra stress on
the cables and reduce the performance of the
steering system.
Installation Requirements
IMPORTANT: The distance from each outboard’s
centerline to the side of transom opening MUST
BE a minimum of 16 in. (406mm).
This kit contains all necessary parts to connect both
outboards to RideGuide Steering Cables for 23-1/2
in. thru 27-1/2 in. (597mm thru 699mm) outboard
centerline spacing. If outboard centerline distance is
other then specified, refer to end of this instruction
manual for optional extension couplers.
DETERMINE ROUTING OF STEERING CABLES
Use “1” or “2”, following, to route steering cables:
1. Parallel cable routing: Cables routed together
down starboard side of boat Refer to “Parallel
Routed Steering Cables and Attaching Kit
Installation,” immediately following.
2. Opposite side cable routing: One cable routed
down starboard side of boat and one cable routed
down port side of boat. Refer to “Opposite Side
Routed Steering Cables and Attaching Kit
Installation,” located on page 7-20 of this
instruction manual.
CAUTION
With this kit installed, the upper (outboard)
mounting bolts MUST BE installed so that hex
head end of bolts is on the inside of boat
transom, as illustrated. Failure to install upper
mounting bolts, as shown in illustration, could
result in interference between steering cable nut
and ends of mounting bolts when outboard is
tilted up.

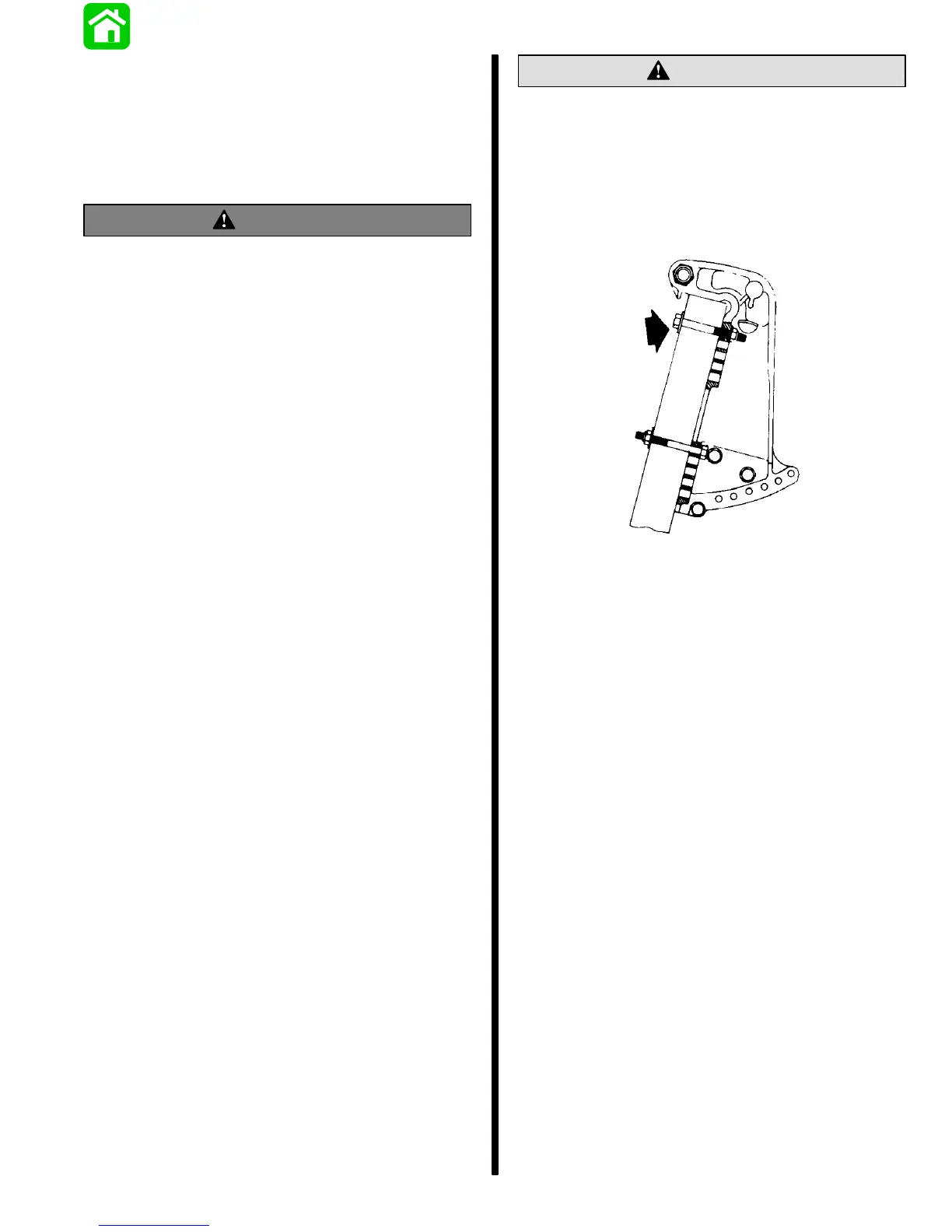

Install upper bolts so that hex head end of bolts is on
the inside of boat transom.
Parallel Routed Steering Cables and
Attaching Kit Installation
(Both Steering Cables Routed Together Down
Starboard Side of Boat)
SUPER RIDEGUIDE STEERING KIT
INSTALLATION
IMPORTANT: Steering cable must be installed
into tilt tube of port outboard before outboard is
mounted on boat transom.
Both gear racks or rotary steering heads must be
installed so that both steering cables will be
routed together on the same side of the boat and
will push- and-pull together.
1. Install Super RideGuide Steering Kit in
accordance with instructions included with Super
RideGuide Kit.
