90-824052R3 JUNE 2002 MID-SECTION - 5B-7

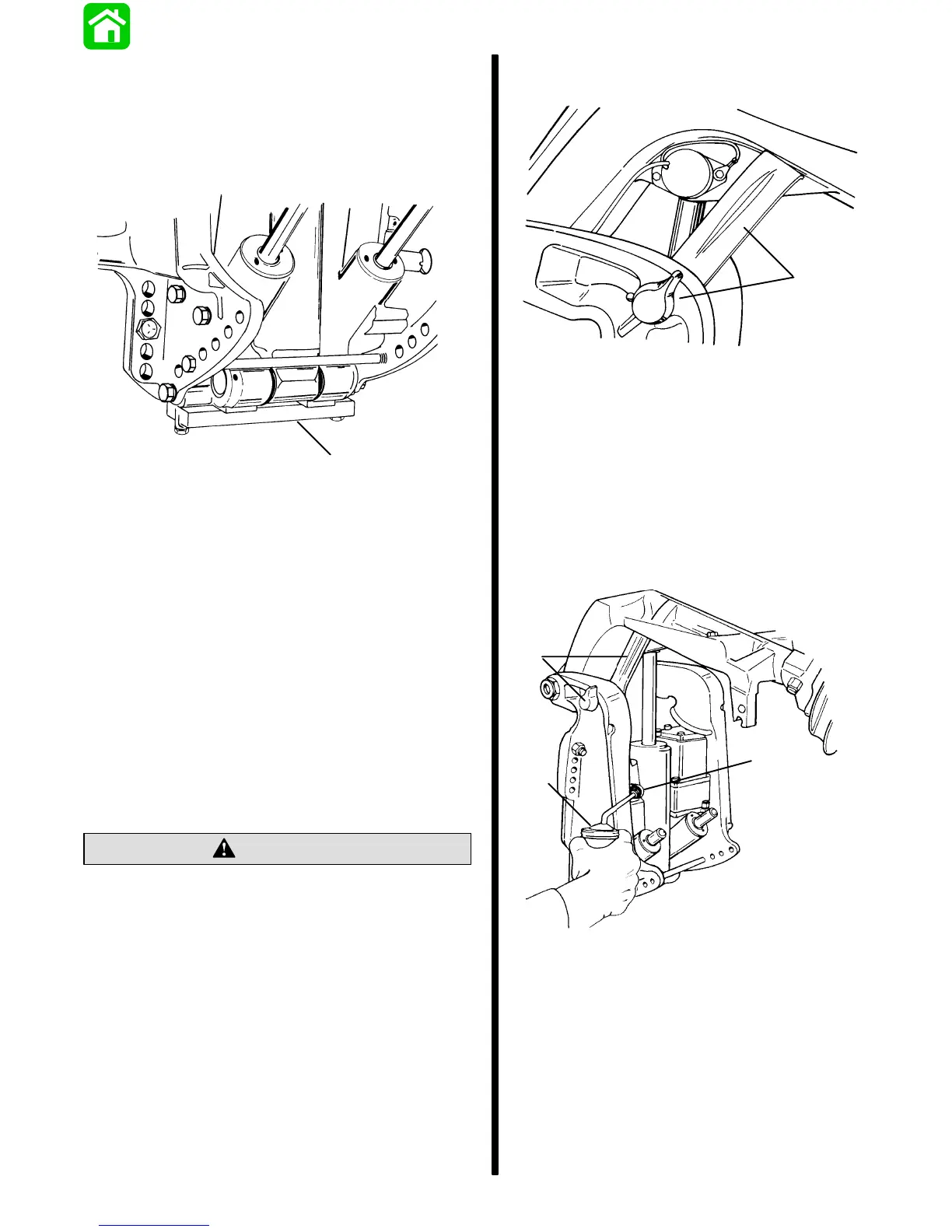

Anode Plate
Anode plate is a self-sacrificing alloy plate that is
consumed gradually by corrosion while providing
protection to the midsection and power trim from
galvanic corrosion. Replace anode plate when it is
50% consumed.
27932
a
a - Anode Plate
IMPORTANT: Do not paint or place protective
coating on anode plate, or corrosion protection
function will be lost.
Trim Indicator Gauge
A Quicksilver Trim Indicator Gauge accessory kit is
available for the power trim sender (if not previously
installed).
Check, Fill and Purge - Power Trim
System
TO CHECK:
CAUTION
Tilt outboard to full “Up” position and engage tilt
lock lever before checking fluid level. System is
pressurized. Extend trim and tilt rams fully to
depressurize system.
Remove fill plug and O-ring. System is full when oil
level is present at filler hole. Tighten fill plug securely.
NOTE: Automatic Transmission Fluid (ATF) Type F,
FA, Dexron II or Dexron III may be used.
51368
a
a - Tilt Lock Lever
TO FILL:
IMPORTANT: This trim system is pressurized.
Remove “Fill” plug only when outboard is tilted
to the full “Up” position or the trim/tilt rams are
fully extended. Retighten “Fill” plug before tilting
outboard down or retracting tilt/trim rams.
Remove “Fill” plug and O-ring. System is full
when oil level is present at fill hole. Tighten “Fill”
plug securely.
51344
b
a
c
a - Fill Plug and O-ring
(remove to fill system, tighten securely)
b - Oil Can (fill system with Quicksilver Power
Trim and Steering Fluid)
c - Tilt Lock Lever (engage to support engine
in “Up” position)
TO PURGE:
IMPORTANT: Fill plug and O-ring must be
tightened securely before purging system.
To Next Page
