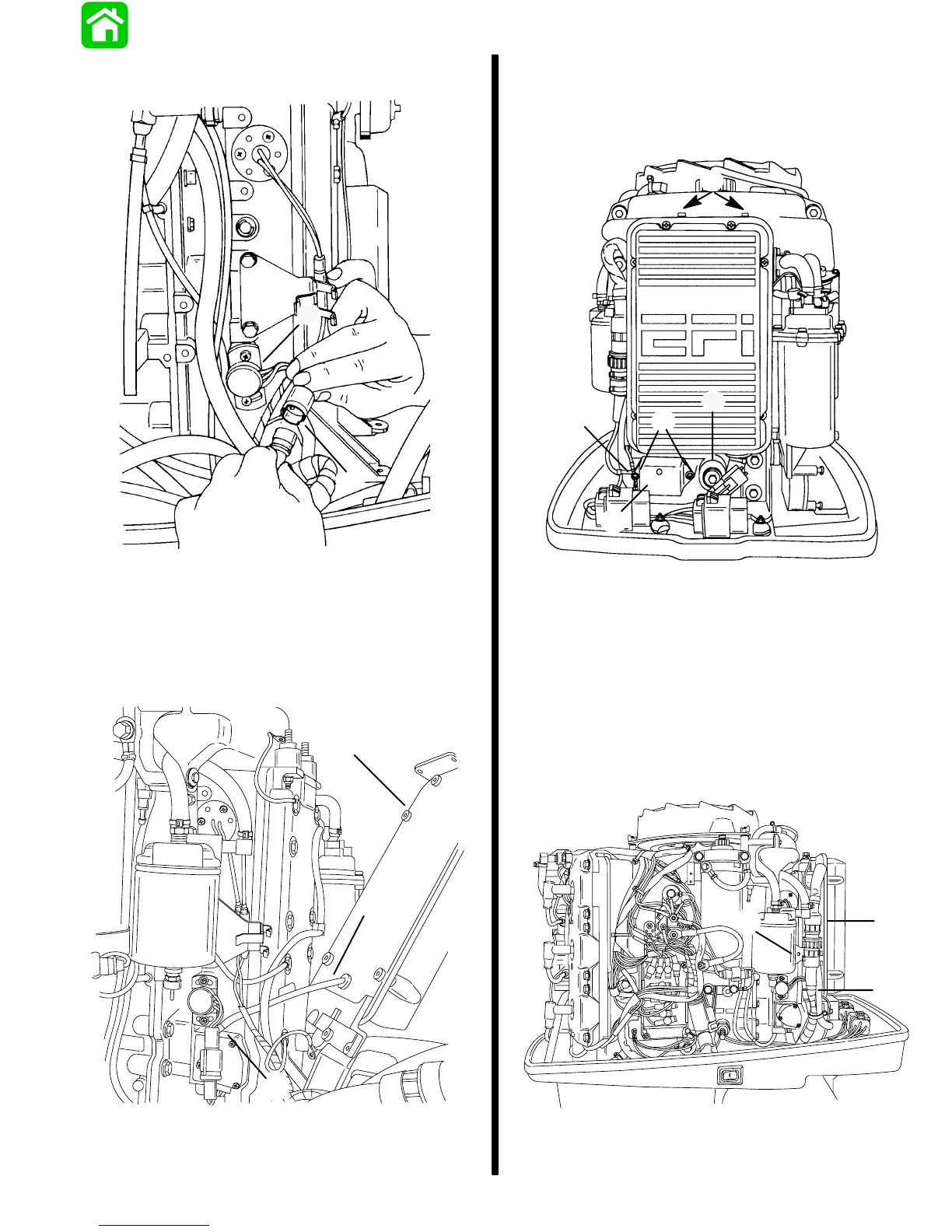

90-824052R3 JUNE 2002 FUEL SYSTEMS - 3D-69
3. Connect throttle position sensor at 3 pin
connector.
51787
a
b
a - Throttle Position Sensor
b - 3 Pin Connector
ECM Installation
1. Connect MAP sensor hose from ECM to manifold
fitting. Place ECM on manifold studs.
55199
c
b
a
a - MAP Sensor Hose
b - Fitting
c - ECM
2. Secure ECM to manifold using nuts and screw.
Torque nuts and screw to 45 lb. in. (5.0 N·m).
3. Secure water sensing module and ground wires
with screws. Torque screws to 25 lb. in. (3.0 N·m).
e
d
b
a
55173
c
a - Nuts
b - Screw
c - Water Sensing Module
d - Screws
e - Ground Wires
4. Connect ECM harness to engine harness at con-
nector. Install harness into harness bracket with
connecting ring below or above bracket arms.
IMPORTANT: DO NOT force connecting ring
between bracket arms.
a
b
c
55175
a - ECM Harness
b - Engine Harness
c - Bracket
To Next Page
