90-824052R3 JUNE 2002 FUEL SYSTEMS - 3E-5
Set Up Instructions for Oil Injection
System
CAUTION
Be careful not to get dirt or other contamination
in tanks, hoses or other components of the oil
injection system during installation.
CAUTION
Oil injected engines additionally, must be run on
a 50:1 gasoline/oil mixture in the fuel tank for the
first 30 gallons of fuel. Refer to engine break-in
procedures in the Operation & Maintenance
Manual.
CAUTION
If an electric fuel pump is to be used on engines
with oil injection, the fuel pressure at the engine
must not exceed 4 psi (27 kPa). If necessary,
install a pressure regulator between electrical
fuel pump and engine and set at 4 psi (27 kPa)
maximum.
INSTALLING REMOTE OIL TANK
1. The remote oil tank should be installed in an area
in the boat where there is access for refilling.
The tank should be restrained to keep it from moving
around, causing possible damage.
An acceptable means of restraining the tank would
be the use of eye bolts and an elastic retaining strap
about the mid-section of the tank taking care that any
metal hooks do not puncture the tank.
Keep in mind, when installing in tight areas, that this
tank will be under pressure when the engine is oper-
ating and will expand slightly.
2. Oil hoses when routed thru engine well, must be
able to extend to the hose fittings on engine.
3. Oil hoses must be arranged so they cannot
become pinched, kinked, sharply bent or
stretched during operation of the outboard.
NOTE: An oil hose extension kit (41729A3) is avail-
able for the remote oil tank.

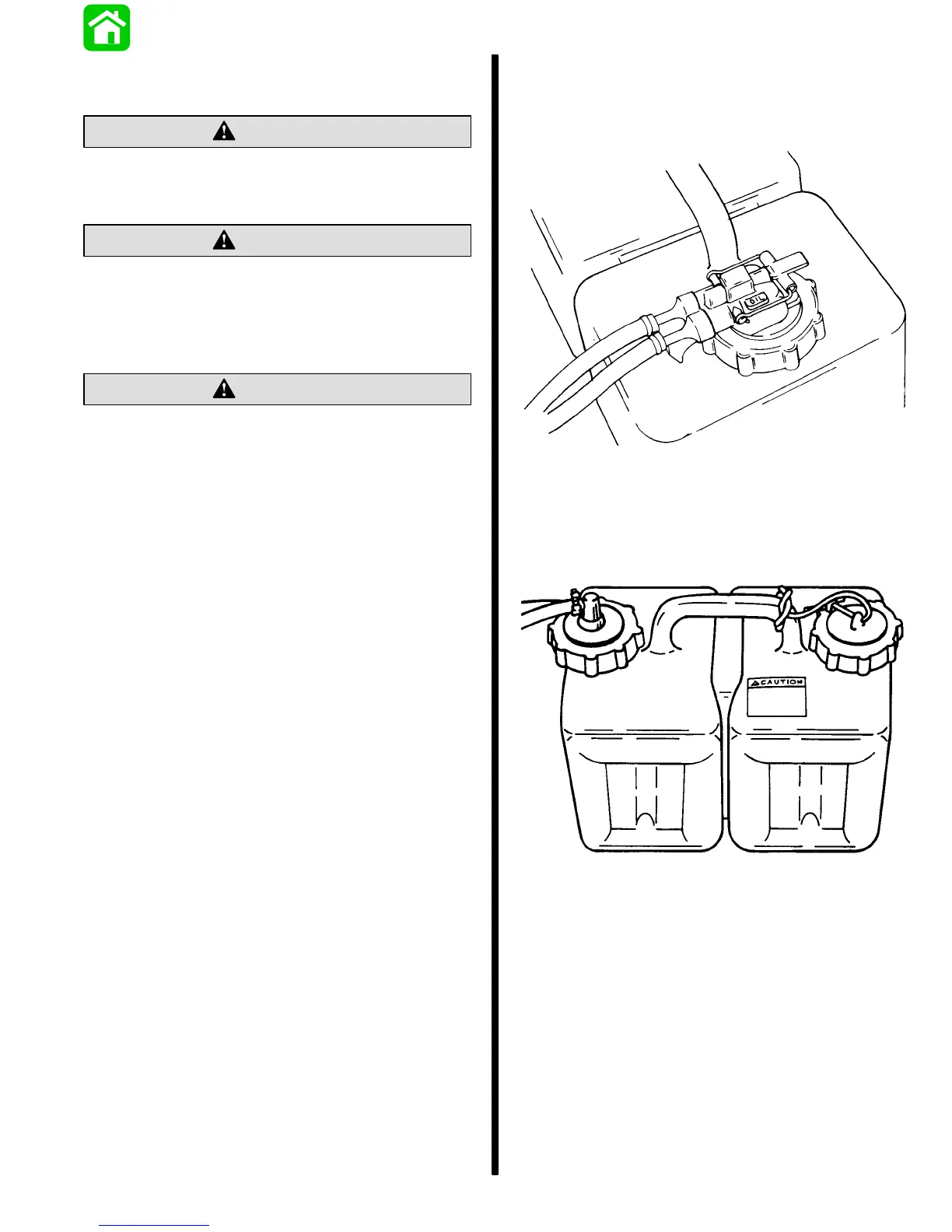

22750
Quick Disconnect Type Hose Connection
27733
One Piece Type Hose Connection
To Next Page
