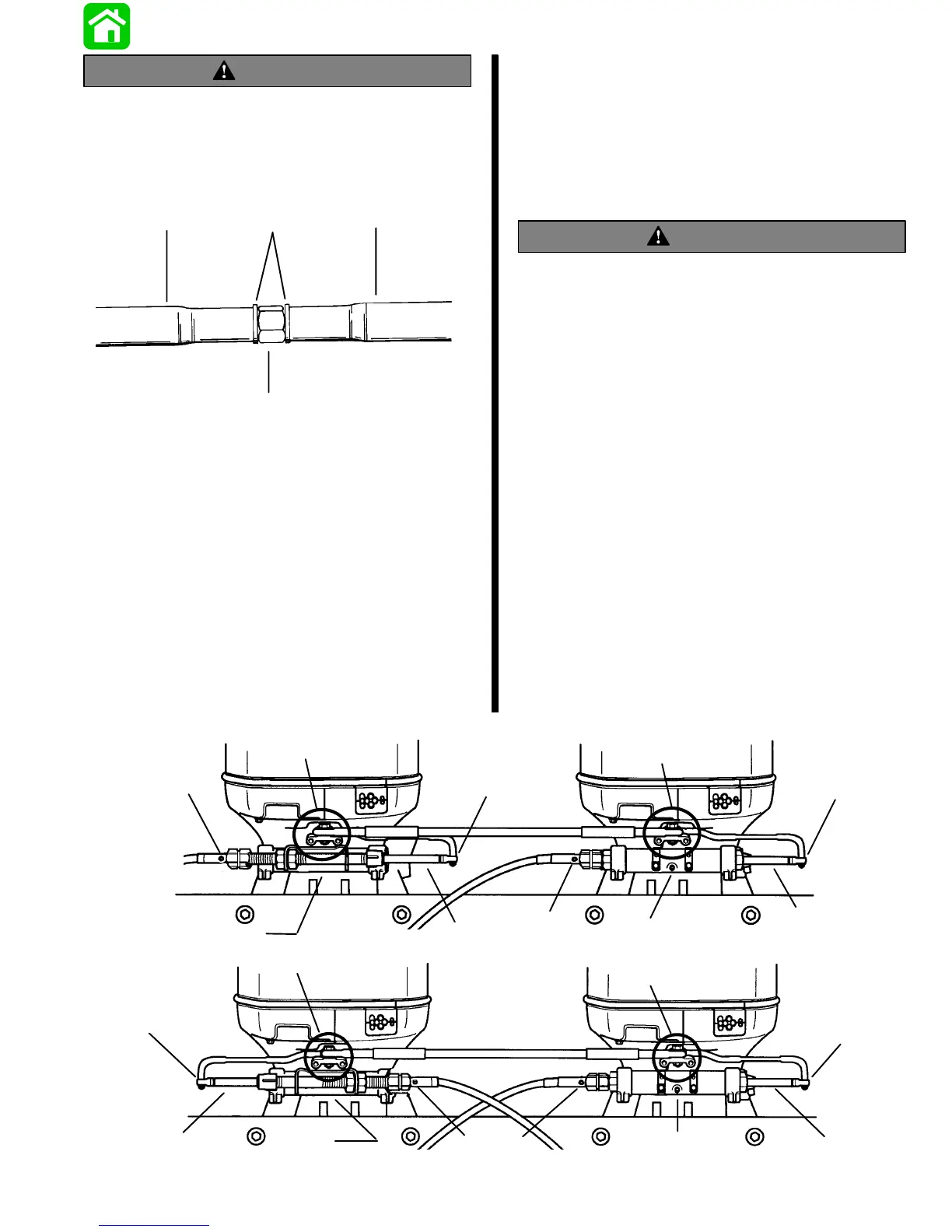

Lubrication Points for Parallel Cable Routing Installations
Lubrication Points for Opposite Side Cable Routing Installations
28168
28175
a
d
c
b
a
a
a
b
c
d
c
d
b
aaa
a
b
c
d
90-824052R3 JUNE 2002 ATTACHMENTS/CONTROL LINKAGE - 7-27
WARNING
When 2 couplers are connected together with
coupler link rod, a lock washer must be used on
each side of coupler link rod, and link rod must
be torqued to 20 Ib. ft. (27.0 N·m) into end of each
coupler.
a
ba
c
51890
a - Couplers Connected Together
b - Lock washers
c - Coupler Link Rod [Torque to 20 lb. ft. (27.0 N·m) into End
of Each Coupler]
Maintenance Instructions
Maintenance inspection is owner’s responsibility and
must be performed at intervals specified, following:
Normal Service - Every 50 hrs. of operation or 60
days (whichever comes first)
*Severe Service - Every 25 hrs. of operation or 30
days (whichever comes first)
*Operation in a salt water area is considered
“Severe Service.”
1. Carefully check steering system components for
wear. Replace worn parts.
2. Check steering system fasteners to be sure that
they are torqued to correct specifications.
NOTE: RideGuide Steering Cables are lubricated at
the factory and require no additional lubrication at
initial installation.
WARNING
Core of each steering cable (transom end) must
be fully retracted into cable housing before
lubricating cable. If cable is lubricated while
extended, hydraulic lock of cable could occur.
3. With core of RideGuide Steering Cable (transom
end) fully retracted, lubricate transom end of
steering cables thru grease fittings (a) with 2-4-C
w/Teflon (92-825407A12). Lubricate exposed
portion of cable ends (b) with 2-4-C w/Teflon.
4. Lubricate pivot points (c) of steering link rods and
ball joints (d) of link rods/steering coupler with
SAE 30W Motor Oil.
5. Inspection and lubrication of steering head
assembly (rotary or straight rack) should be
performed once each year (by your Authorized
Dealer) or whenever steering mount and/or
steering head are disassembled, or if steering
effort has increased. Lubricate with 2-4-C
w/Teflon.
