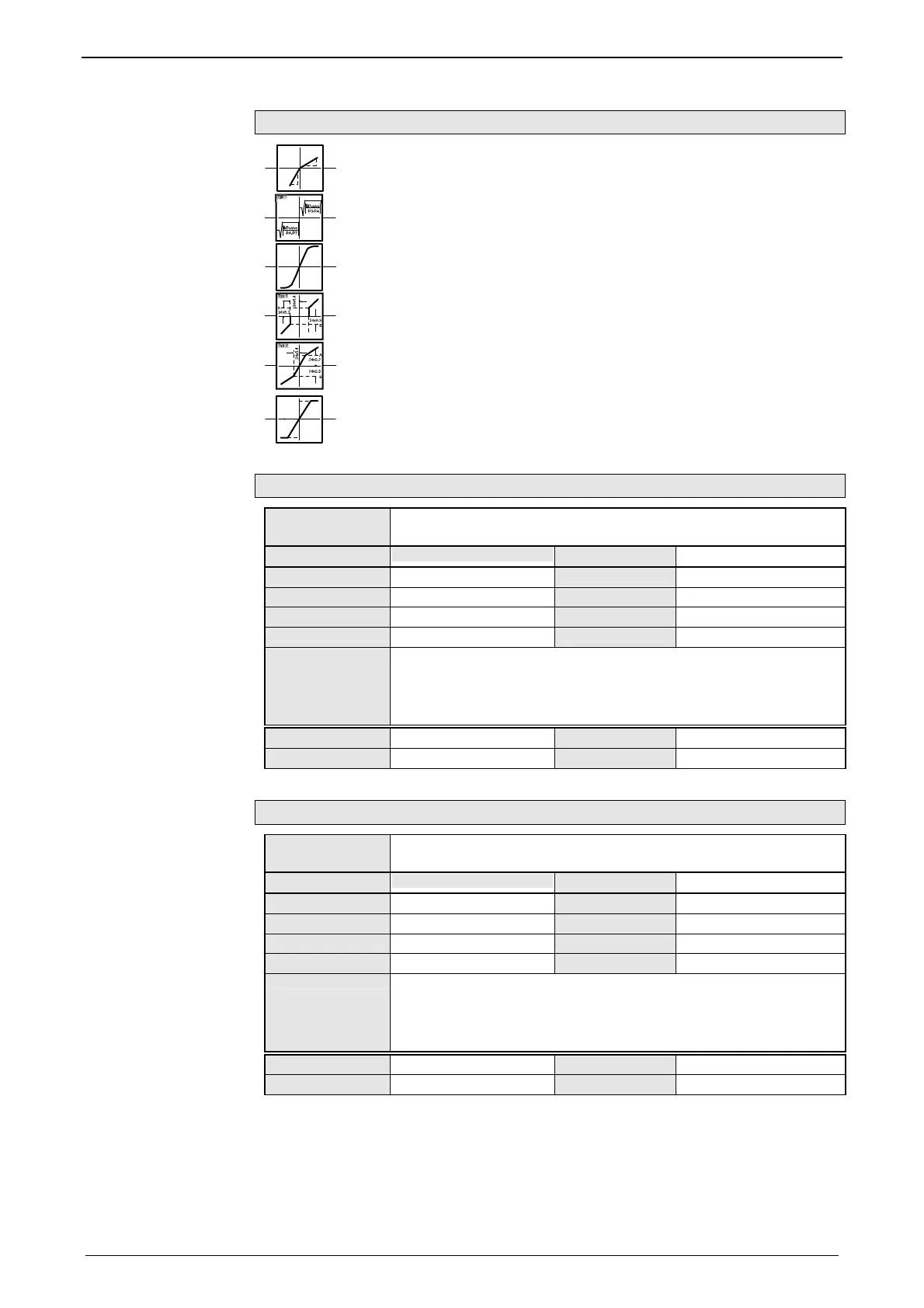

Setting up Compax3 C3F_T40
132 192-121102 N04 June 2008
Conditioning Chain Symbols
24x1.5
24x1.4
Direction dependent gain
Direction dependent pressure compensation
24x3.2
Non-linear characteristic (valve characteristic)
Deadband
No signal is transmitted in a range definable by objects.
Change of gain for small signals.
In a range definable by objects, the signal is transmitted with changed
gain.
24x0.4
24x0.3
Limitation
The signal is limited to a range definable by objects.
Object 2400.3: Upper limit of ocntrol signal
Object name
C3Plus.OutputConditioningChain_Ch0_Upper_Limit
Object No. 2400.3 HEDA-channel
no
Access:
Read/write
Valid after:
VP
CodeSys object:
yes
CodeSys format:
INT
Unit
%
Minimum value
0 %
Maximum value
100 %
Remark:
Upper limit of valve output 0
Objects of the other conditioning chains: 24x0.3
(x = 0,1,2,3 = Conditioning Chain No.)
CAN No.
-
PD object:
no
Profibus-No. (PNU)
-
Bus format:
I16
Object 2400.4: Lower limit of the control signal
Object name
C3Plus.OutputConditioningChain_Ch0_Lower_Limit
Object No. 2400.4 HEDA-channel
no
Access:
Read/write
Valid after:
VP
CodeSys object:
yes
CodeSys format:
INT
Unit
%
Minimum value
0 %
Maximum value
100 %
Remark:
Lower limit of valve output 0
Objects of the other conditioning chains: 24x0.4
(x = 0,1,2,3 = Conditioning Chain No.)
CAN No.
-
PD object:
no
Profibus-No. (PNU)
-
Bus format:
I16
