Motion control C3F_T40
196 192-121102 N04 June 2008

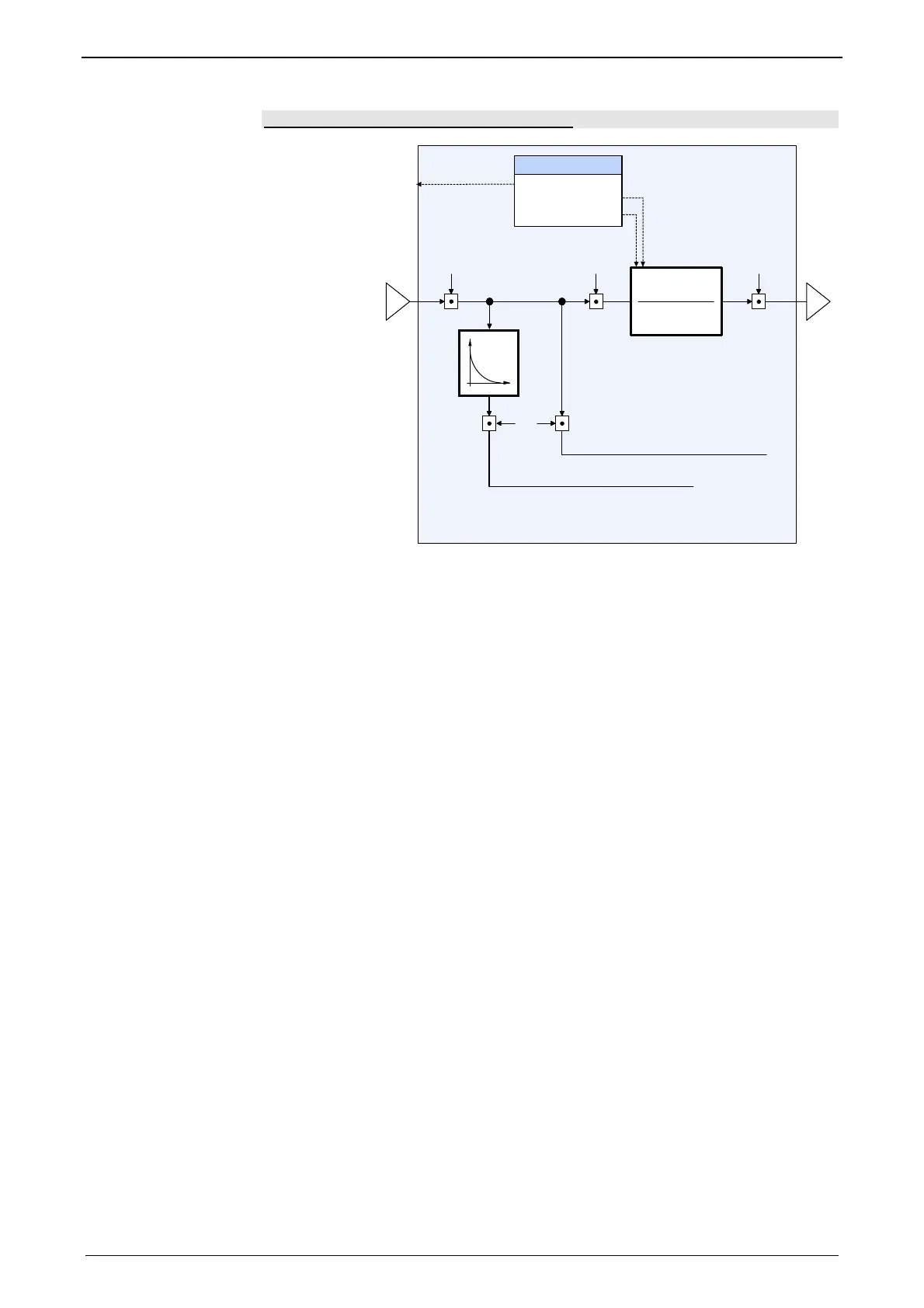

Structure of the "electronic cam" function
Direction
Source
-1 / +1
MD 1/SD
numerator
denominator
Gearing
MD
1141.7 C3.Gear_actual_masterposition
1141.8 C3.Gear_actual_master_speed
Gearing structure
MC_GearIn
Master
RatioNumerator
RatioDenominator
D E
D: / E:
additional structure (see page 102)
Direction -1 / +1: with direction reversal (under configuration of signal sources)
factor -1 is applied.
The "virtual master" source is not available with Compax3 T30.
