Setting up Compax3
192-121102 N04 June 2008 67
With motor reference point
In this chapter you can read about:
Machine zero only from motor reference ........................................................................... 67
With direction reversal switches ........................................................................................ 68
Machine zero only from motor reference
In this chapter you can read about:
MN-M 33,34: MN at motor zero point ................................................................................ 67
MN-M 130, 131: Determine absolute position via distance coding
.................................... 67

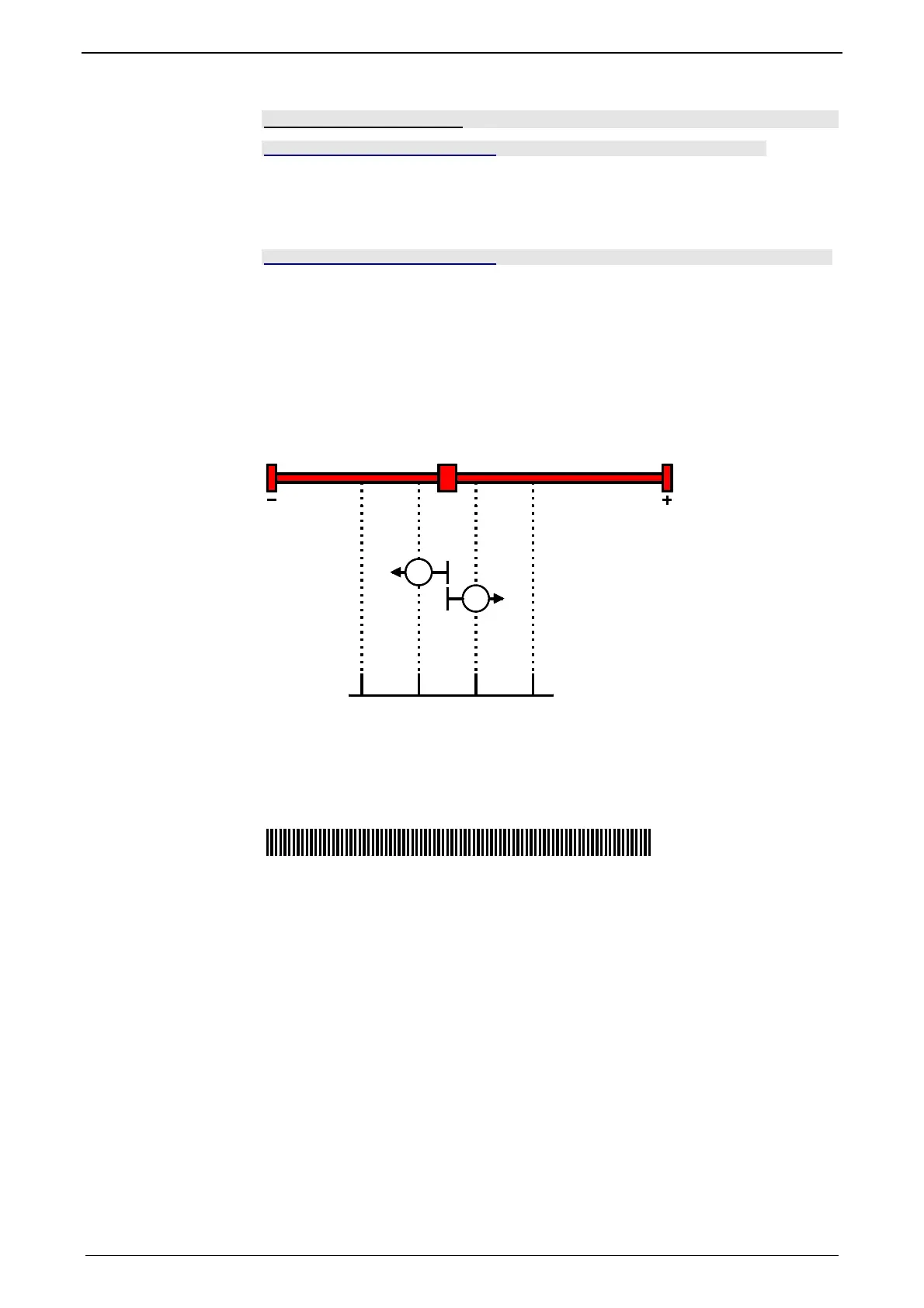

MN-M 33,34: MN at motor zero point
The motor reference point is now evaluated (no MN initiator):
MN-M 33:For a MN run, starting from the current position, the next motor zero point
in the negative travel direction is taken as the MN.
MN-M 34:For a MN run, starting from the current position, the next motor zero point
in the positive travel direction is taken as the MN.
33
34
1
1: Motor zero point
MN-M 130, 131: Determine absolute position via distance coding
Only for motor feedback with distance coding (the absolute position can be
determined via the distance value).
Compax3 determines the absolute position from the distance of two signals and
then stops the movement (does not automatically move to position 0).
1: Signals of the distance coding
Without home
switch
