Mounting
2-30 Hardware Description
Computer
System
Mounts
When using Information Center systems in a clinical environment, only some of the
components need to be available to the user - display, keyboard, mouse, speaker, recorder,
printer. The other components - processing unit, UPS, power supplies, video splitter - can be
placed in an out-of-the-way location to minimize clutter in the central monitoring area.
While these components can be placed on the floor or on shelves, hardware is also available
for mounting them compactly to a vertical surface where they take up little space and are

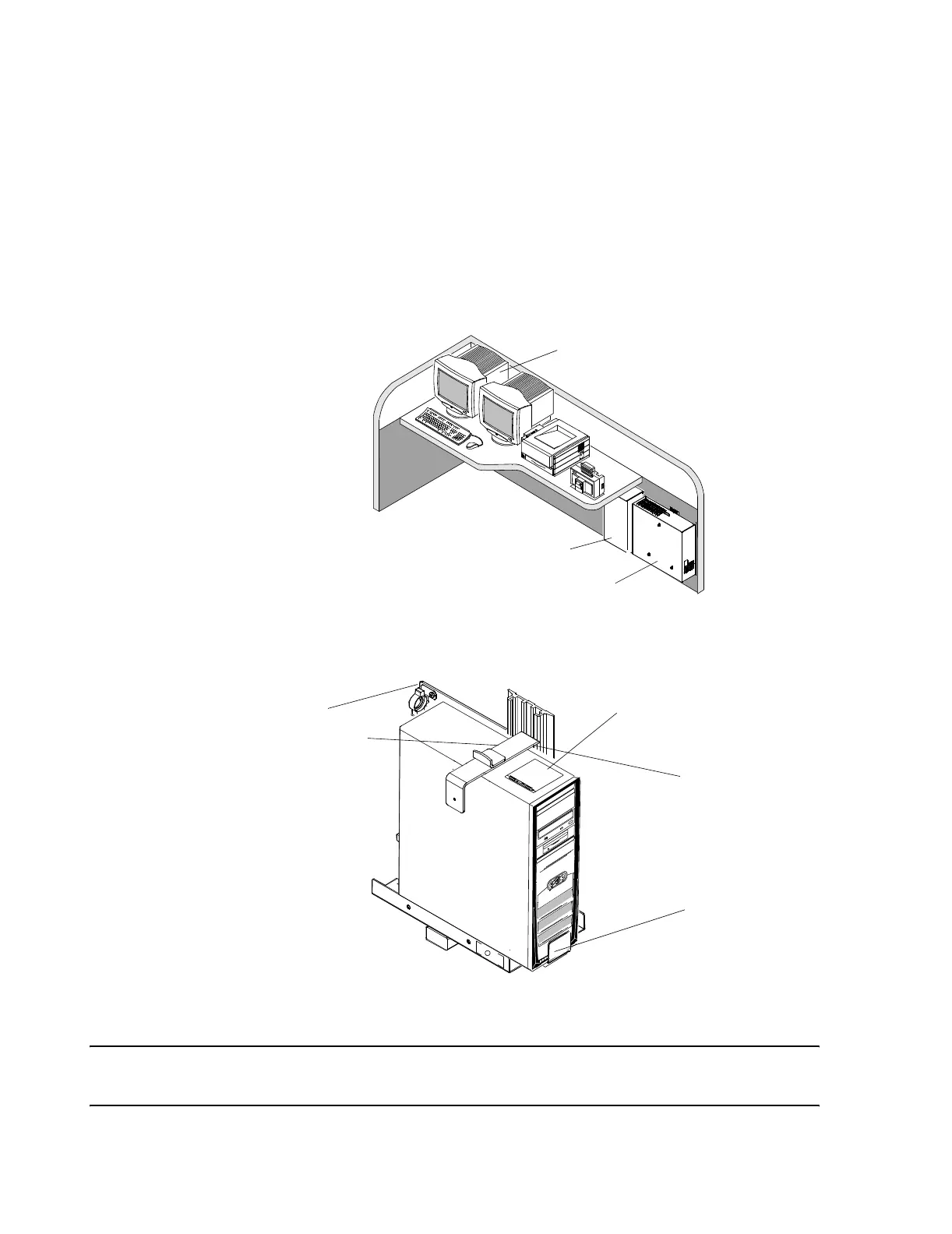

protected from accidental movement. Figure 2-31 shows a typical dual display Information
Center installation with wall mounts.
Figure 2-31 Clinical Installation with Wall Mount Hardware
Processing Unit
Mount
Hardware for mounting the processing unit on a vertical surface is shown in Figure 2-32
Figure 2-32 Processing Unit Mounting Hardware
Note If mounting the processing unit, the disk drive orientation may need to change. See the Note on
page 2-3.
Information Center
UPS Wall Mount
PC Wall Mount
Top arm/rail
1. Position PC on
lower bracket
2. Insert top
bracket/clamp
plate so it contacts
3. Insert Archive
Disk into disk
holder
Top bracket/clamp
in wall channel
stop flange
