Information Center System
1-8 Introducing the IntelliVue Information Center System
• Clinical Network connectivity for 2, 4, 6, or 8 Information Centers
• Web access to stored patient data from browser equipped PCs on the hospital LAN
• Export of derived 12-Lead information for EASI 12-Lead IntelliVue Patient Monitor
data in XML format
• HL7 formatted messages containing Information Center collected data can be output to
an external HL7 compliant receiver
• Alert Data Export
• Interface to Philips/Zymed Holter for Windows
Figure 1-5 M3154 Database Server
Large
Network
Database
System
Up to ten M3154 Database Servers can be interconnected on the hospital LAN. This
connectivity provides Information Centers with the ability to transfer patient data to a clinical
unit outside of its Database Server. The clinical operator selects a destination clinical unit
when discharging. Retrospective data, near real-time waves, parameters, and alarms for
patients across care units that are on separate database servers can also be reviewed. If a
M2385 Application Server is present, web-based applications can be displayed on the
Information Centers.
M3169 Small
Database
Server
The M3169 Database Server is a Server that provides database storage of patient monitoring
data for all devices on the Network. Information Center application software provides for
storage of 48 hours of patient monitoring data (full disclosure waveforms, physiologic
parameters, alarms, multi-lead arrhythmia, ST segments, and EASI 12-lead presentations)
from 48 patients. Patient monitoring data, including events and trends, can be reviewed by up
to 3 M3155 Information Centers and 3 Clients on the Network.

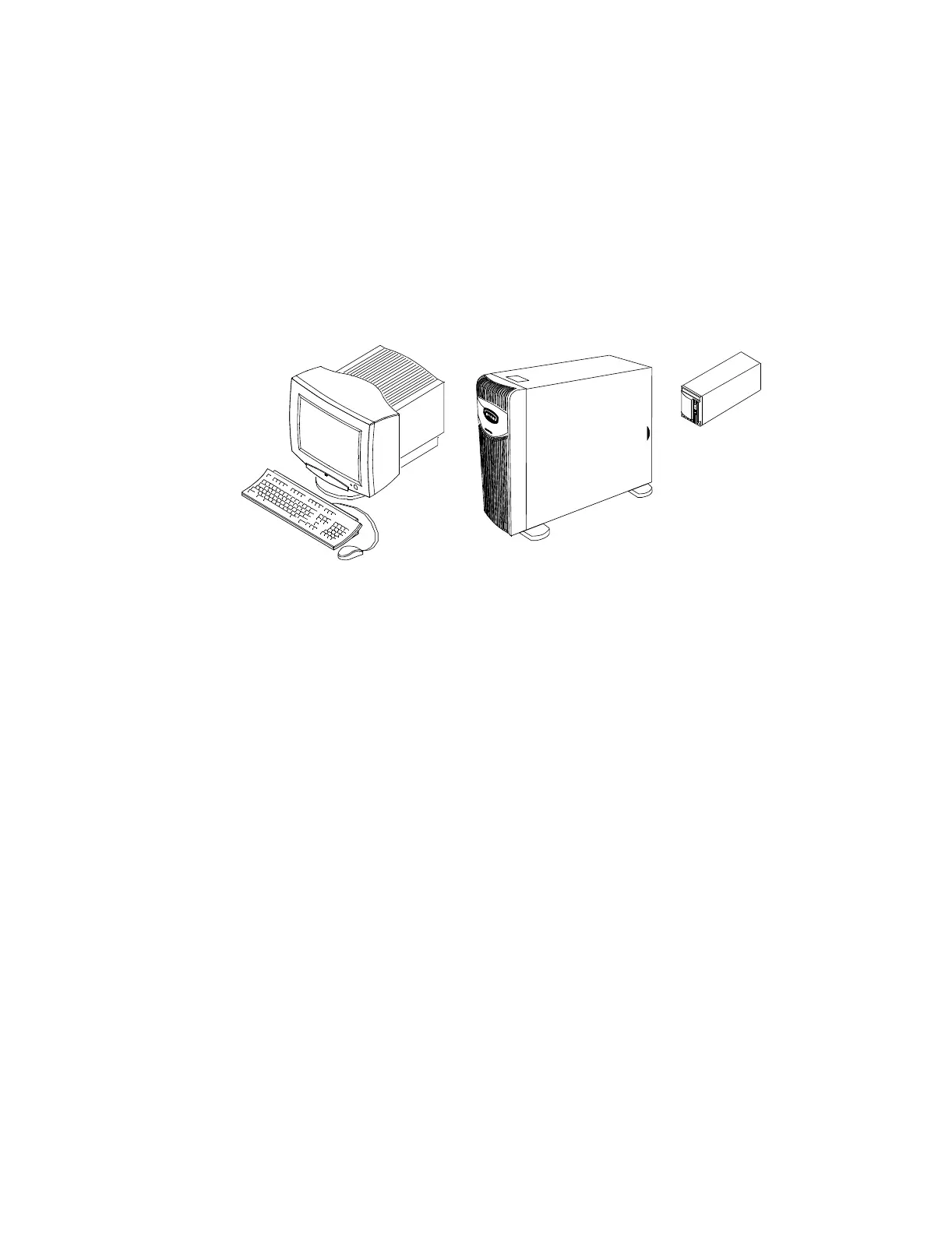

Standard components for the M3169 Database Server are shown in Figure 1-6 and include
the following:
• PC with:
– hard disk drive
– floppy disk drive
– CD ROM and disk drives
– 10BT/100TX Ethernet Network adapter card
• keyboard
•mouse
•UPS
Keyboard
Mouse
UPS
Display
Server
Repeater
