Information Center System
1-6 Introducing the IntelliVue Information Center System

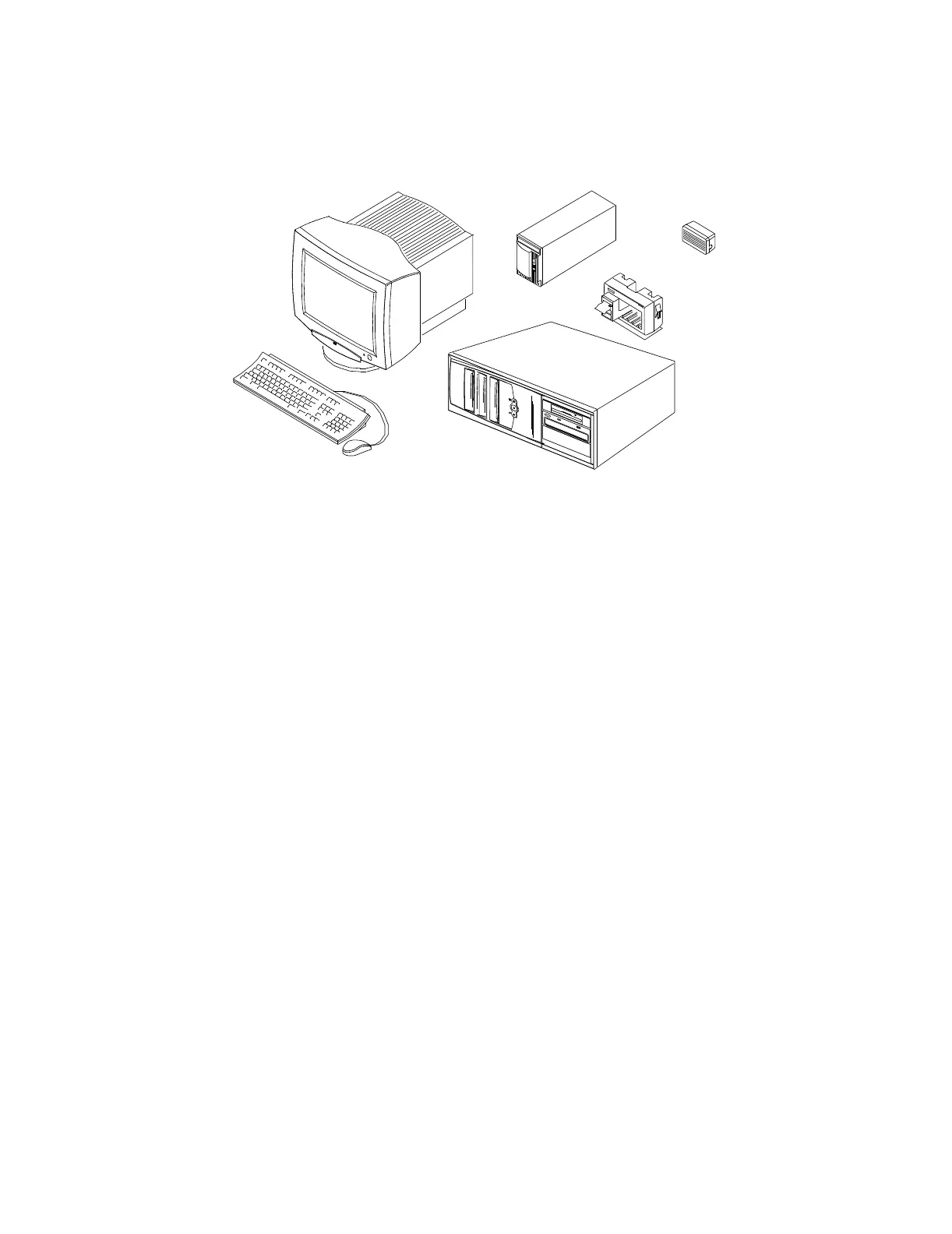

Figure 1-3 Basic Information Center Client Workstation
M3170
Patient Link
The M3170 Patient Link operates as a M3150 Information Center local database without a
display. The M3170 Patient Link provides a central location for bedside recordings and
reports initiated from SDN hardwired bedsides, M2/3/4 bedsides and IntelliVue Patient
Monitors. In addition, the Patient Link provides support for bed to bed overview and alarm
reflection for M3/4 bedsides and IntelliVue Patient Monitors. Patient Link cannot be used
with Telemetry besides. Patient names are not included on the recording annotation
M3170 Patient Link does not have a clinical user interface (i.e. there is no display connected).
It does not generate alert sounds and relies on the bedside monitor for visual and auditory
alarm notification. All Clinical User Settings and Patient Settings are set to the factory
defaults and cannot be changed. The only configuration changes that can be applied are those
in the Config Wizard.
Standard
Components
Each M3170 Patient Link includes the following standard components:
• Compaq D510 processing unit with:
– hard disk drive
– floppy disk drive
– CD ROM drive
– keyboard and mouse (required for installation and support only)
– Windows XP Operating System software
– Information Center application software
– SDN interface card
– 10BT/100TX Ethernet Network adapter card
• 2-Channel Recorder System
• Uninterruptible Power Supply (UPS)
18.5
Medium CRT
Keyboard
PC
Color Display
Mouse
UPS
Speaker
2 Channel
Recorder
To Next Page
