Network Names and IP Addresses
Hardware Installation
5-39

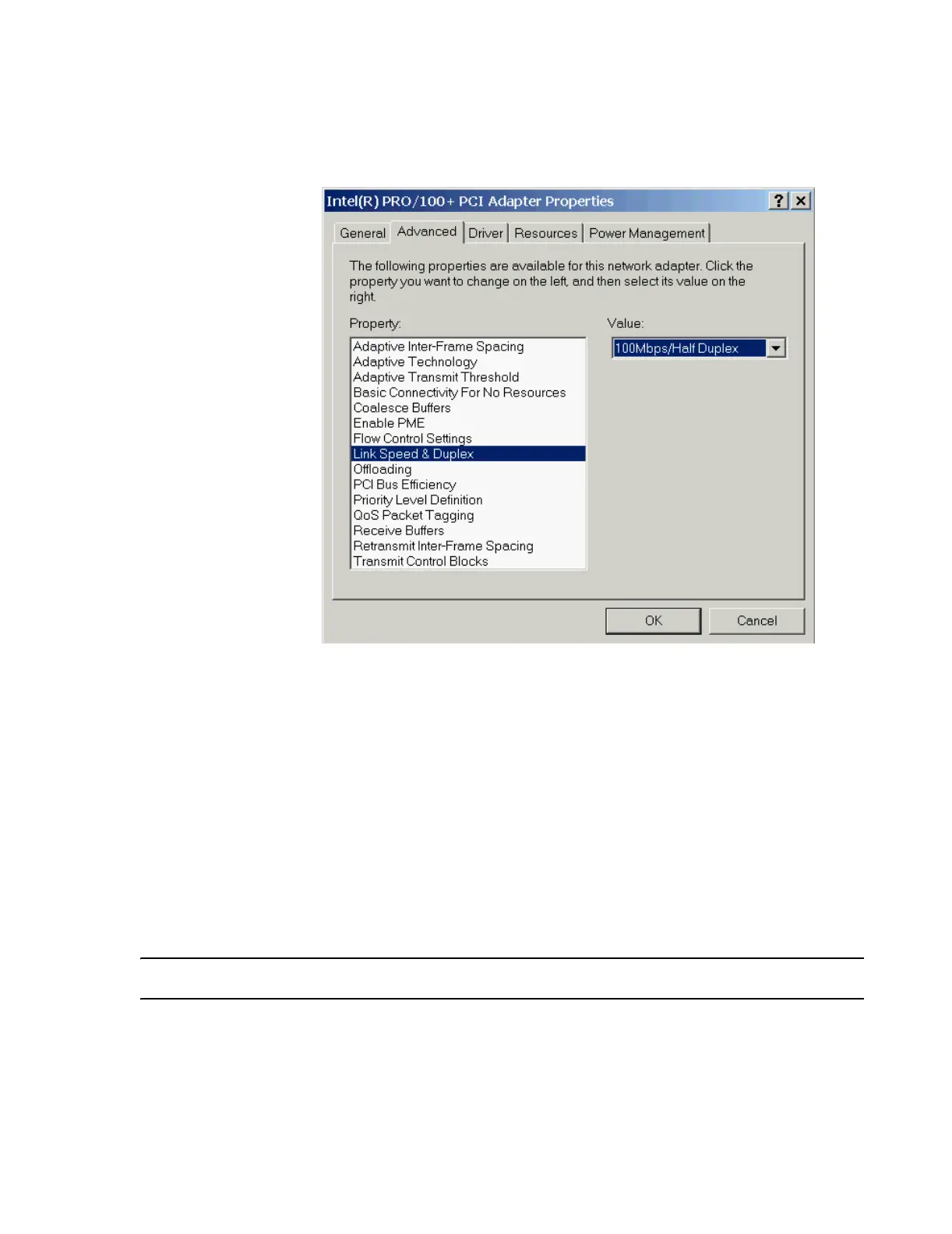

Step 15. Verify the value in the field shown in Figure 5-36.
Figure 5-36 PC HLAN Speed/Duplex Setting
Step 16. Click OK to close the window and return to the Network Connections window.
M3154 Database
Server
The following steps describe how to set Host Names and IP Addresses for the M3154
Database Server. After these have been set, the Network Interface Card (NIC)
configuration must also be verified. That procedure follows.
Step 1. Click on Start, Settings and Control Panel to open the Control Panel
window.
Step 2. Double click on the System icon in the Control Panel window to open the
System Properties window. Click on the Network Identification tab
Step 3. Click on Properties to change the Computer Name for this device to a Host
Name associated with its location in the hospital, e.g. ICU, CCU.
Note When selecting a Host Name, refer to the Note on page 5-34 for Host Names.
Step 4. To set the IP Address, click on Start->Settings->Network and Dial-Up
Connections.
Step 5. Right-click on the Monitoring LAN icon, and select Properties.
