Configuring the System
8-8 Start-up and Configuration

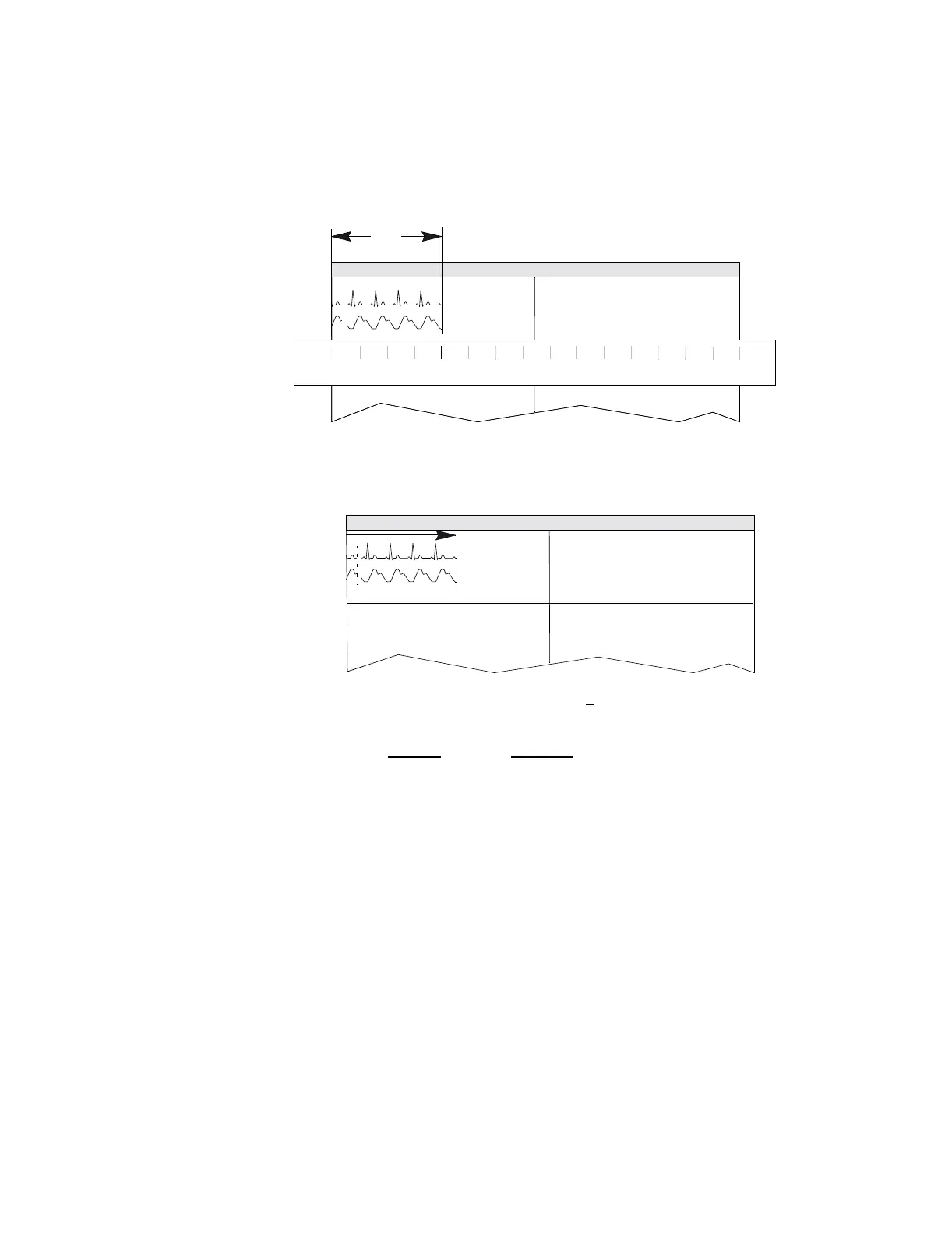

• Use the ruler to measure (in millimeters) the full width (W) of a waveform in a Patient
Sector of the Main Screen display as shown below. Use the ruler measurement
techniques of Step 5 of For CRT Displays:
• Measure (in seconds) the time (t) for 10 full sweeps of the erase bar for the same
waveform as shown below. The measurement shall be to the nearest second.
• To meet the sweep speed specification of 25 mm/s +
10%, the measured time (t) shall be
between:
Modem Test The following procedure tests a factory installed modem on a PC or server and external dial-
in access.
Step 1. Click Start in the Windows Main Menu and then Programs.
Step 2. Click Accessories in the Programs menu.
Step 3. Click Hyperterminal in the Accessories menu.
Step 4. Click HyperTerminal in the Hyperterminal menu.
If the Location Information window of Figure 8-2 appears:
• Select a country/region
• Enter an area or city code
• Select whether the phone is Tone dialing or Pulse dialing
0Width
(W)
Waveform Width in Millimeters (W)
Total Time of 10 Sweeps in Seconds (t)
(t)
10
9.1 x
W 11.1 x W
25
25
< t <
To Next Page
