Philips IntelliVue Series User Manual

Interconnecting the System
Hardware Installation
5-21
VL420 System

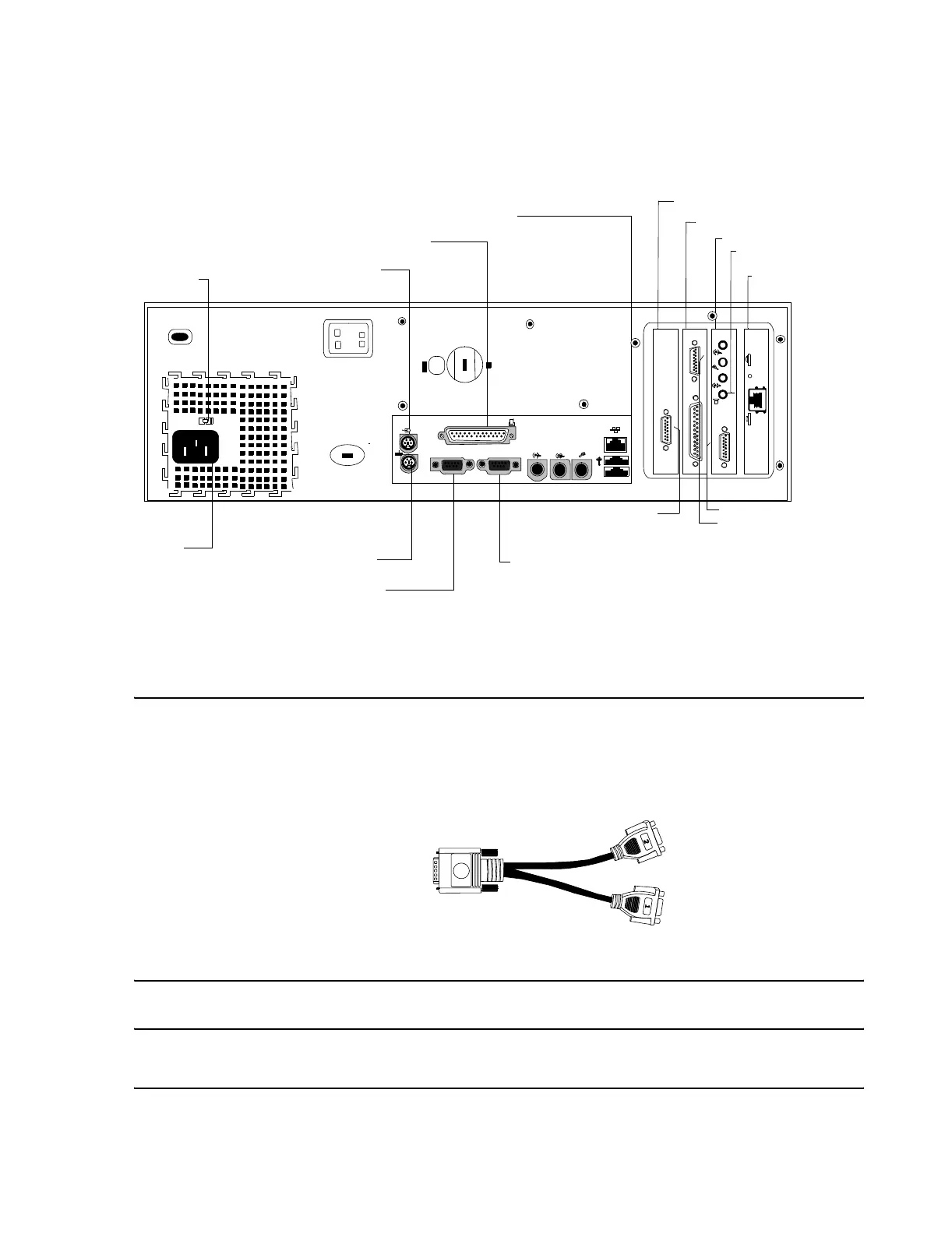

Figure 5-21 Plug Connections for VL420 PC Workstation
Note For Single Display systems, the Main Display is plugged into the 9-pin Main Display
connector on the rear of the PC.
For Dual Display systems, a Dual Video Card and Y-Cable are required. The Y-Cable plugs
into the 9-pin Display connector on the Dual Video Card. See Figure 5-21. The Main Display
then plugs into the Y-Cable connector labeled 1 and the Second Display plugs into the Y-Cable
connector labeled 2. The rear panel Main Display connector is not used.
When upgrading, the Video Memory Module already inserted in the slot must be replaced with
the new Second Video card.
Caution Single Display systems must not have a Dual Video Card installed. The Main Display
connector must be used.
Keyboard
Mouse/Trackball
UPS/Serial A
Printer
Input Voltage
Recorder
Speaker Plug *
Selection
2nd Video Card
SDN Card
Serial B
10/100 Ethernet Interface
Dual Display
Sound Card *
SDN Interface
AC Power
Input
* See Strain Relief Warning
specified with Sound Card
** See Dual Display Note below
Switch
(4 Channel Recorder)
-
Hospital LAN
NIC Card -
(Optional)
Connector **
To Dual Video
Card Connector
(1) To Main Display
(2) To Second Display
