Interconnecting the System
5-24 Hardware Installation
LC2000

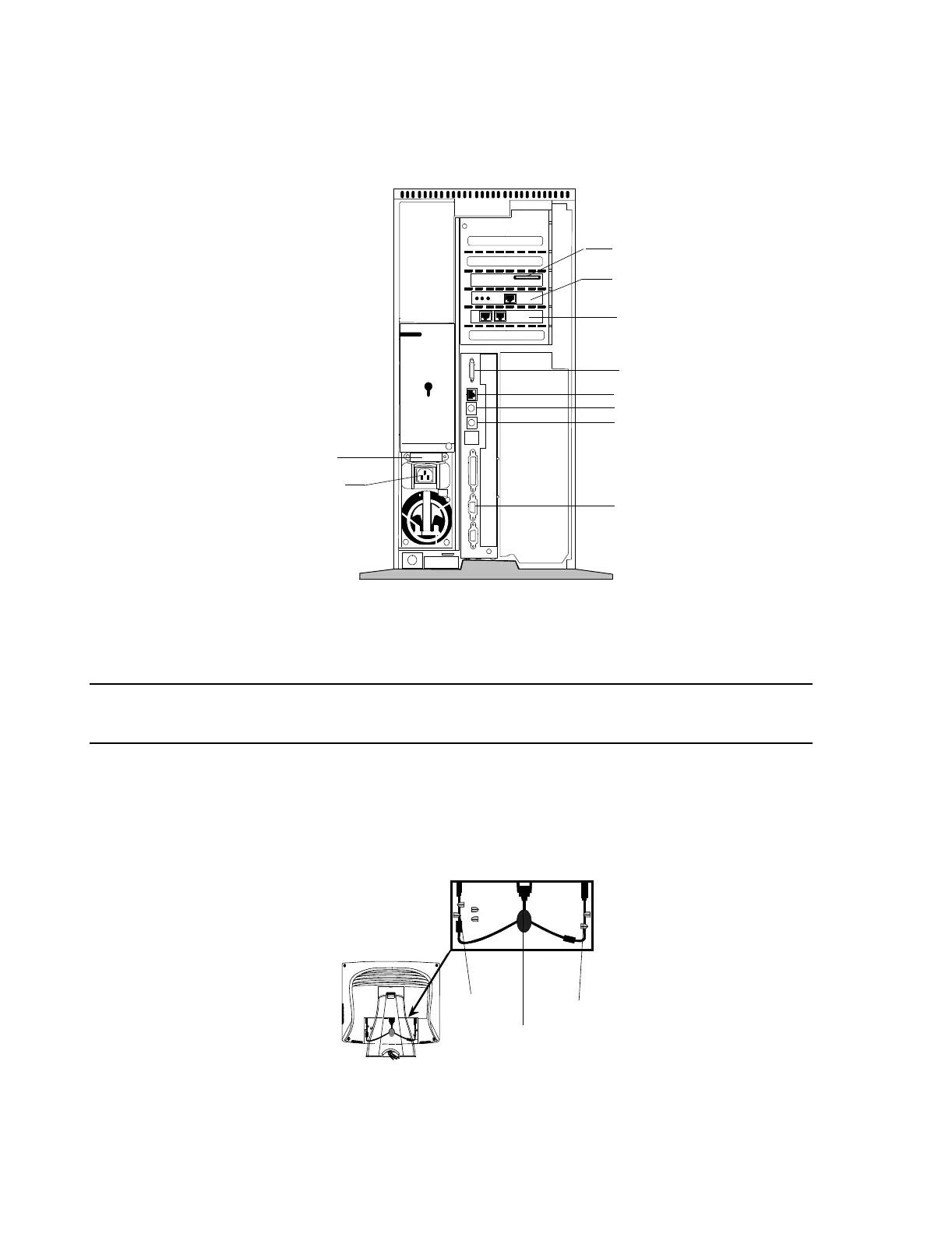

Figure 5-25 LC2000 Plug Connections
Touch Display The touch display has the following procedures that must be done at installation time.
Note When touch screens are used in Dual Display configuration, use of one stylus and holder for
only the right display may be prefered.
Cable
Connections
The rear panel of the touch display has three connections: one for the Power cord, one for
the Video cable (see Touch Display Stylus and Holder Mount), and one for the USB Cable
(see Figure 5-26). When the connections have been made, the cables can be thread through
the mounting stand.
Figure 5-26 Touch Display Panel Connections
AC Power Input
Video Display
LAN Connection
Keyboard
Mouse
(UPS) Serial Port - IOIOI
2nd LAN Card for
Hospital LAN (Optional)
Modem Card (US & Canada)
Power Supply
NetRAID 1MCard
USB Cable
Video Cable
Power
