Interconnecting the System
5-30 Hardware Installation
Keyboard-
Video-Mouse
Switch
The Keyboard-Video-Mouse (KVM) Switch provides for control of up to 4 Information
Centers with a single keyboard and mouse. It also permits a single display to serve as the
2nd (applications) display for all Information Centers. Figure 5-31 shows a wiring diagram
for 4 Information Centers connected to a KVM Switch. However, it can also be used for
only a keyboard or only a keyboard and mouse.
Detailed information on KVM Switch installation is given in the following Installation
Note, which is provided with the Switch and also contained in the Documentation CD-
ROM.
Note When installing the KVM Switch, keyboard and mouse cables on the USER PORTs must be
attached securely with a cable tie, either to the video plug (if present) or to the cable tie mount
provided, as shown in Figure 5-31.
When securing cables, be sure to provide strain relief loops and cinch cable ties tightly.

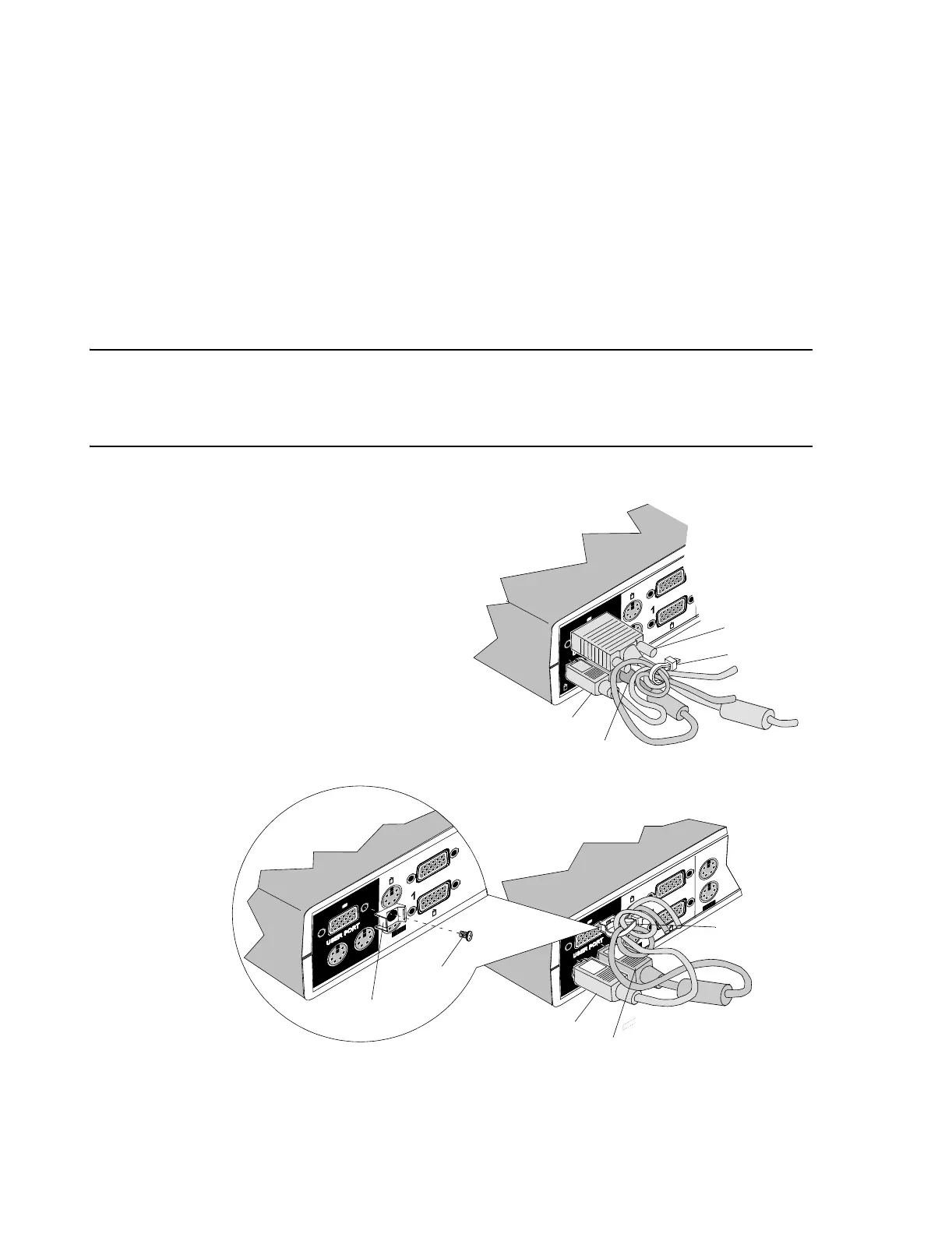

Figure 5-31 Securing Keyboard and Mouse Cables on KVM Switch
Video Plug
Keyboard Plug
Mouse/Trackball
Plug
(secure)
Cable Tie
Cable Tie
Mount
4-40
x 3/16 in.
Screw
Mouse/Trackball
Plug
Keyboard Plug
Cable
Tie
Securing Cables to Video Plug
Securing Cables to Cable Tie Mount
