2-38 Hardware Description
A typical SDN installation for an Information Center using UTP cable is shown in Figure 2-
38. SDN on UTP installation materials for Philips installations are given in SDN
Installation Materials, Table 1-31..

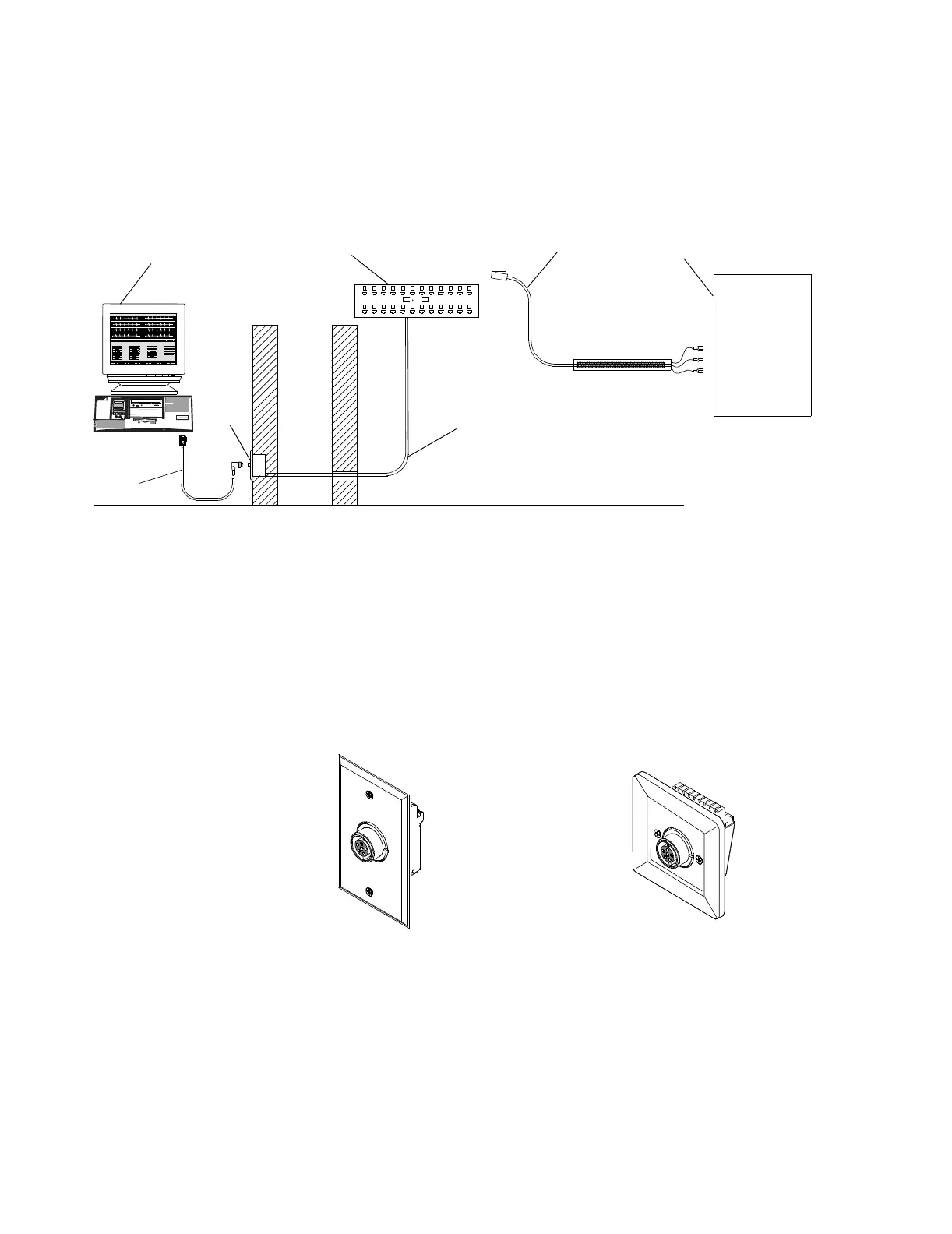

Figure 2-38 Typical SDN for an Information Center System Using UTP
Wall Box Kits Wall box kits for connecting Philips LDC to SDN/UTP wiring are available from Philips.
These are special Philips wall box kits designed to fit into standard U.S. electrical wall boxes
[NEMA, single or dual gang with conduit knockouts, minimum depth = 4.0 cm (1.6 in.)] and
typical European wall boxes [minimum depth = 4.0 cm (1.6 in.)]. SDN/UTP Wall Box Kits
for both U.S. and European installations are shown in Figure 2-39. Wall box kits for SDN
installations using SDC and XSDC are also available from Philips.
Detailed descriptions of proper installation of wall box kits are provided in the Installation
Note Installing SDN Using UTP Cable and are included with the wall box kit. Ordering
information for wall box kits is provided in SDN Installation Materials.
Figure 2-39 SDN UTP Wall boxes for Philips Connections
Wall
UTP Cable
Patch
Patch SCC
Panel
Cable
Box
Information
Center
LDC
U.S. Wall Box Kit
European Wall Box Kit
