The Recorder Rack also includes a Bracket Stand Assembly for providing a stable base for the
Recorder Rack assembly on a flat surface and two blank Rack panels for use when only one
Philips Recorder is used. See Figure 2-17.

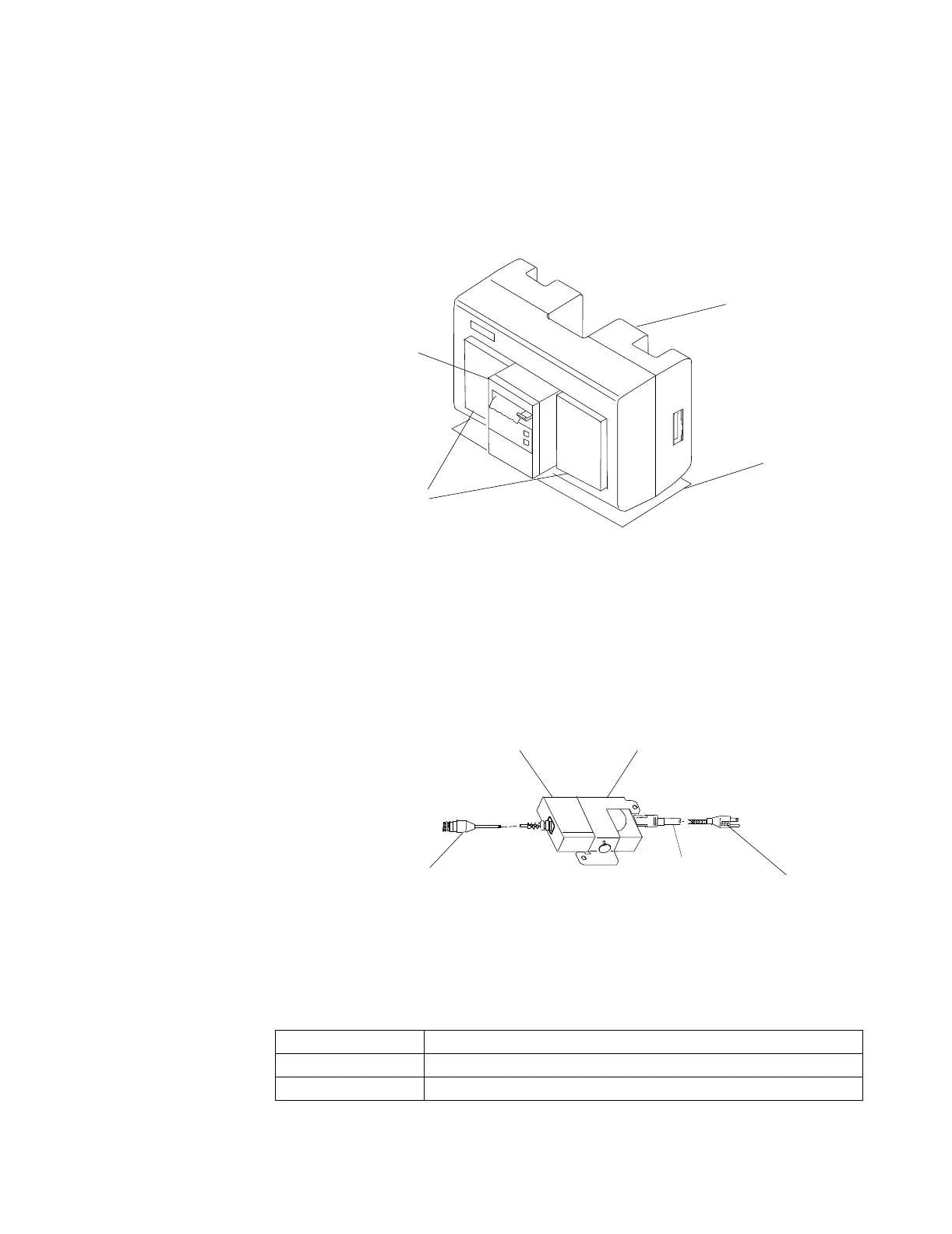

Figure 2-17 Recorder Rack with Philips Recorder and Blank Panels
60 VDC Power
Supply
The M3180-60040 60VDC Power Supply is a regulated DC power supply that provides the
60VDC power to the Recorder Rack. Power is supplied via a special Recorder Cable that also
connects the signal from the processing unit. See Figure 2-15.
A mounting bracket is also provided with the Power Supply for mounting it to a surface in an
out-of-the-way location. Installation of a Ferrite Bead Block onto the 230V power cord is
used to suppress potential conductive emissions coming from the 2-channel recorder’s power
supply. See Figure 2-18.
Figure 2-18 60VDC Recorder Rack Power Supply
The operation of the M1276A #201 Recorder Rack and M3180-60040 60VDC Power Supply
are described in the Philips M1276A #201 Parameter Module Rack Service and
Installation Guide. The following table lists the components of the Philips Recorder System.
Bracket
Stand
Recorder
Module
Blank
Panels
Recorder
Rack
Table 2-1. Philips Recorder System Components
Philips Part Number Description
M1116B #201 Recorder Module(s)
M1276-60002 Recorder Rack Assembly
Ferrite Bead
60VDC
Output
Line
Cord
Mounting
Bracket
Power
Supply
Block
