Recorder Rack/
Power Supply
Cable
Pin connections for cables interconnecting the Philips Recorder and 60VDC Recorder Power
Supply are given in Figure 2-42.

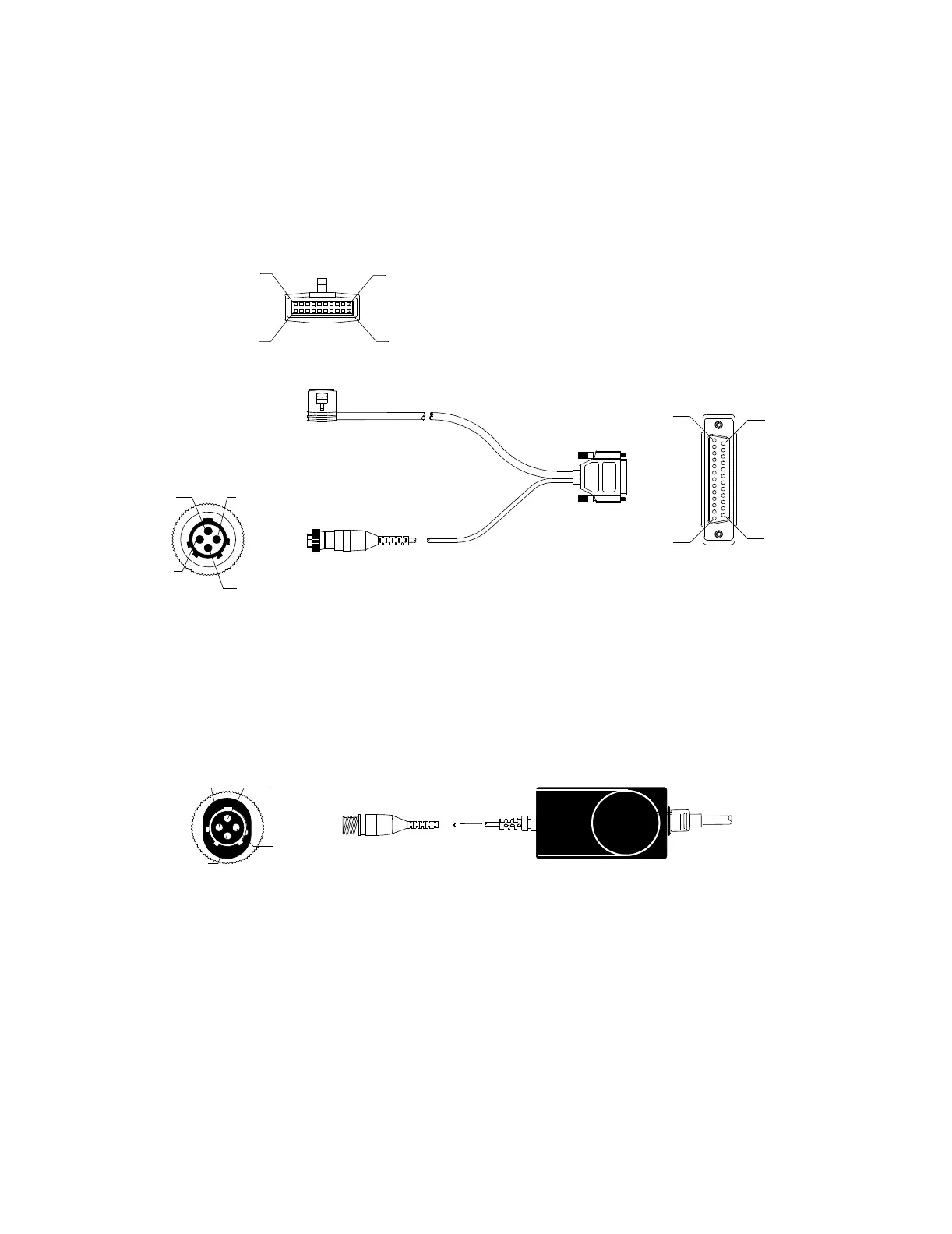

Figure 2-42 Pin Connections for Philips 2 Channel Recorders
Philips Recorder Cable
Socket 1
Socket 25
Socket 14
Socket 13
Socket 1
Socket 10
Socket 11
Socket 20
Pin 1
Pin 2
Pin 3
Pin 4
Socket
1 - Orange: ADDR_A
2 - Brown: ADDR_C
3 - White: ADDR_E
4 - Yellow: [TxM_IN]
5 - Gray: [RxM_OUT]
6 - Violet: [SYNC_IN]
7
8
9 - White/Brown: DGND
10 - 2x Red-Inner: +60VDC
Socket
11 - Inner Shield
12 - 2X Blue Inner: POWER GROUND
13 - White/Green: CNC_OUT
14
15 - White/Orange: NO SIGNAL
16 - Turquoise: SYNC_IN
17 - Red: RxM_OUT
18 - Blue: TxM_IN
19 - Black: ADDR_D
20 - Green: ADDR_B
Socket
1
2
3
4
5
6
7 - White/Brown: DGND
8 - Yellow: [TxM_IN]
9 - White: ADDR_E
10 - Brown: ADDR_C
Socket
14 - 2X Blue Inner: POWER GROU
N
15 - White/Green: CNC_OUT
16 - Gray: [RxM_OUT]
17 - Red: RxM_OUT
18 - Violet: [SYNC_IN]
19 - Turquois: SYNC_IN
20 - NNER SHIELD
21 - Blue: TxM_IN
22 - Black: ADDR_D
23 - Green: ADDR_B
11 - Orange: ADDR_A
12
13
24 - White/Orange: NO SIGNAL
25
Pin 1 - Black: POWER GROUND
Pin 2
Pin 3 - OUTER SHIELD
Pin 4 - Red: 60VDC
Recorder Rack
Processing Unit
60VDC Power Supply
Socket 1
Socket 3
Socket 4
Socket 1 - Black: POWER GROUND
Socket 2
Socket 3 - OUTER SHIELD
Socket 4 - Red: 60VDC
Philips 2-Channel Recorder 60VDC Power Supply
AC Power
Socket 2
Recorder Rack
Cable
