Philips IntelliVue Series User Manual

Locating System Components
Hardware Installation
5-15
M3154
Database
Server
Installation
The M3154 Database Server should be installed in its intended location. This includes the
Server, display, keyboard, and, mouse. The Server has 4 wheels on its base and is intended
for sitting on the floor. The display, keyboard, and mouse are intended for a work surface.
Step 1. Install the Database Server components in their intended positions.
Step 2. Install the 1000 VA UPS with the proper voltage for the Net Server as follows:
–Turn Off the UPS On/Off switches.
– Connect the battery wire of the 1000 VA UPS.
– Connect the UPS input power cord to a properly grounded electrical output
– Connect the Server power cord to a UPS battery backup outlet.
– Connect the Philips provided 9 pin UPS communication cable (gray) to the
computer interface port of the UPS and the Serial A port on the rear of the
Server. See Figure 5-15.

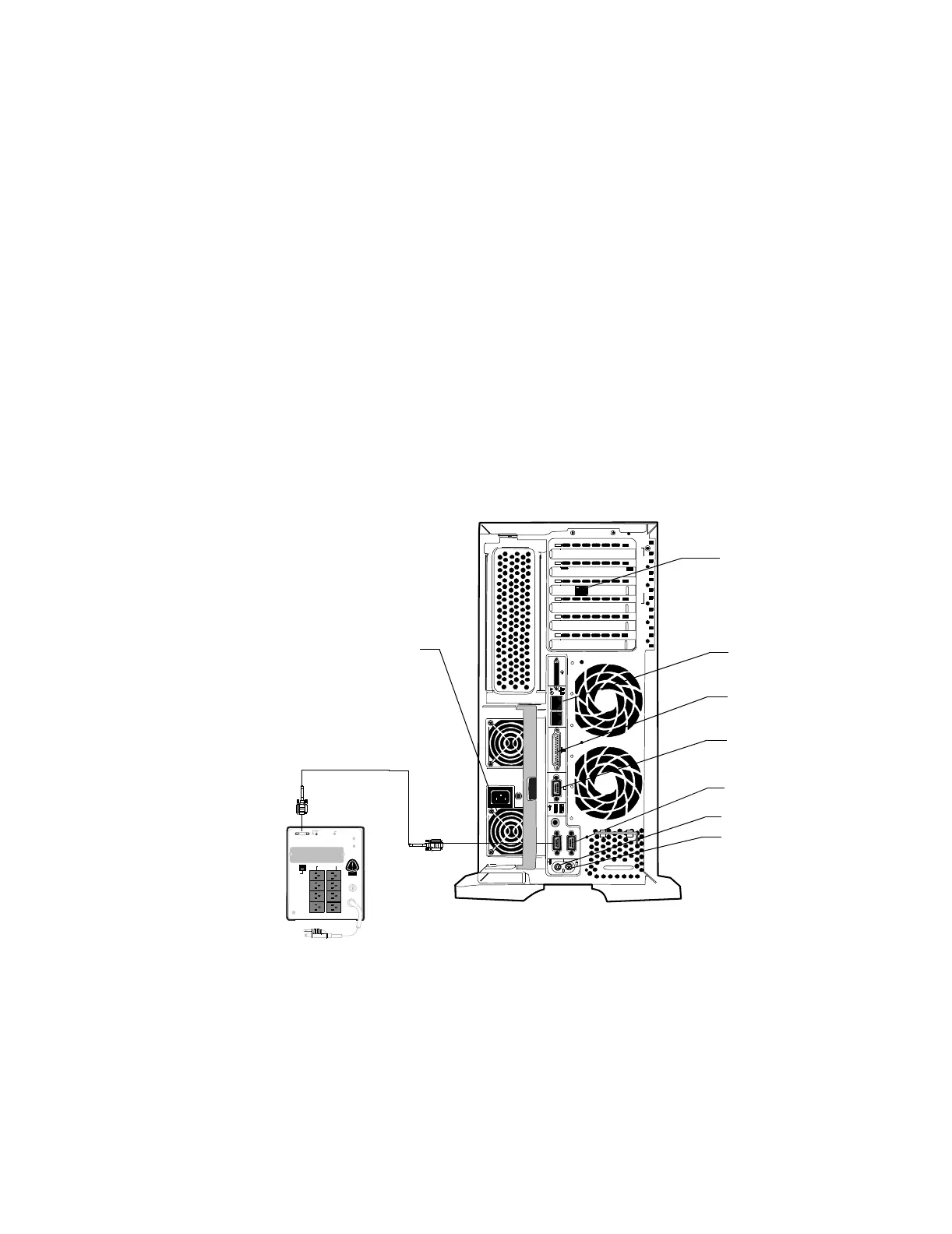

Figure 5-15 ML370 G3 UPS/Server Communication Cable Connection
Server to
Hospital
Intranet
If Information Center Web (Option #C22) has been purchased, interconnect the Database
Server to the Hospital’s intranet using proper cabling. This is a 100 Mbit/s connection.
TVS
USB
SEN-
SITE
OUTPUT 120-
50/60 Hz
INPU
Keyboard Connector
Mouse Connector
Display Connector
Parallel Connector
Clinical Network LAN
Serial Connector B
Power Cord Connector
Hospital LAN
(Optional)Card
Philips 9 Pin UPS/Server
Communication
Cable (gray)
Connector
