Philips IntelliVue Series User Manual

Interconnecting the System
Hardware Installation
5-23
ML370 G3

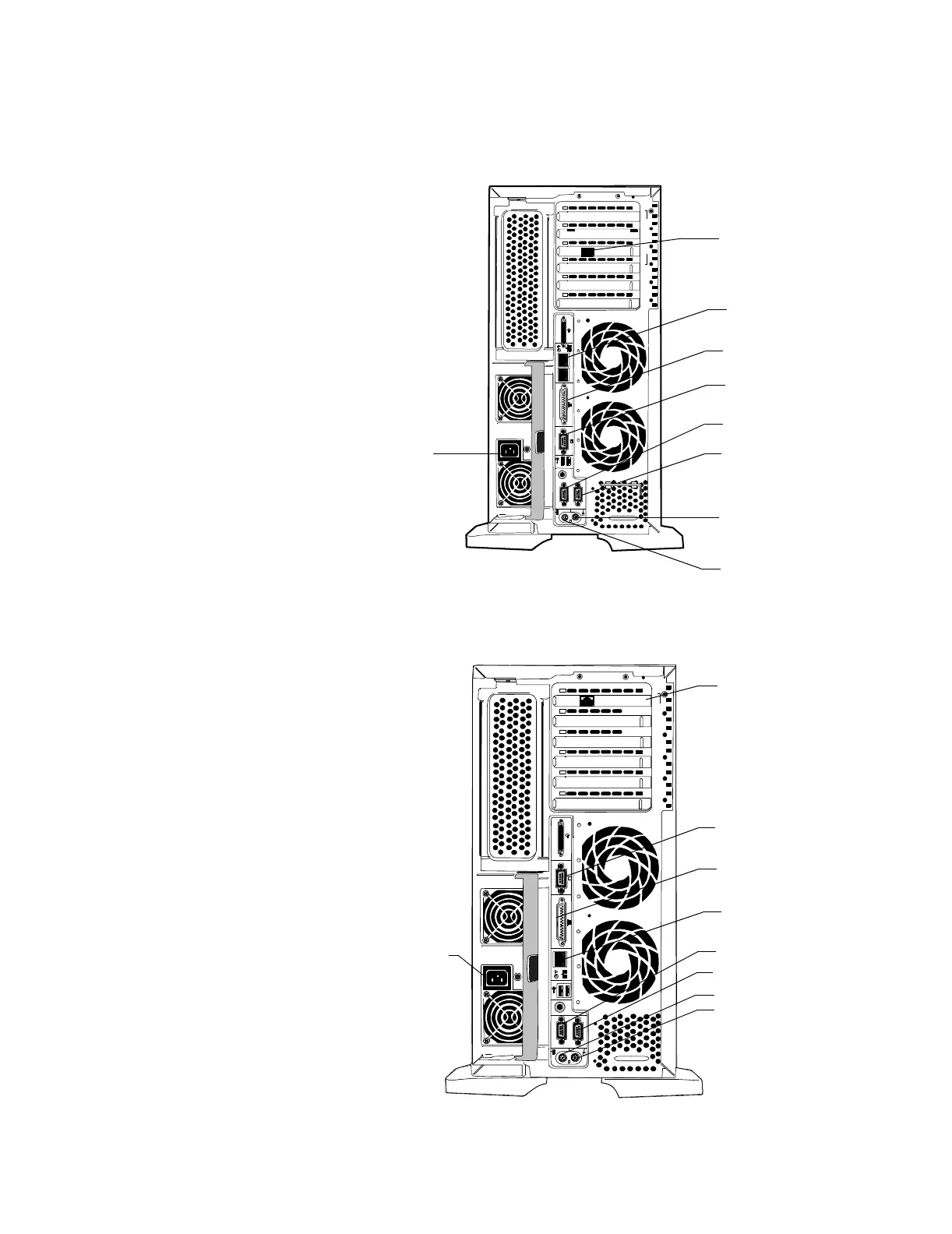

Figure 5-23 ML370 G3 Plug Connections
ML370 G2
Figure 5-24 ML370 G2 Plug Connections
Keyboard Connector
Mouse Connector
Display Connector
Parallel Connector
LAN Connector for
Serial Connector A
Serial Connector B
Power Cord Connector
Second LAN Card for
Hospital LAN (Optional)
Clinical Network
6 5 4 3 2 1
Keyboard Connector
Mouse Connector
Display Connector
Parallel Connector
LAN Connector for
Serial Connector A
Serial Connector B
Power Cord Connector
Second LAN Card for
Hospital LAN (Optional)
Clinical Network
