System Components
2-14 Hardware Description
• Recorder Cable, which connects the signal from the processing unit and the 60VDC
power to the Module Rack.

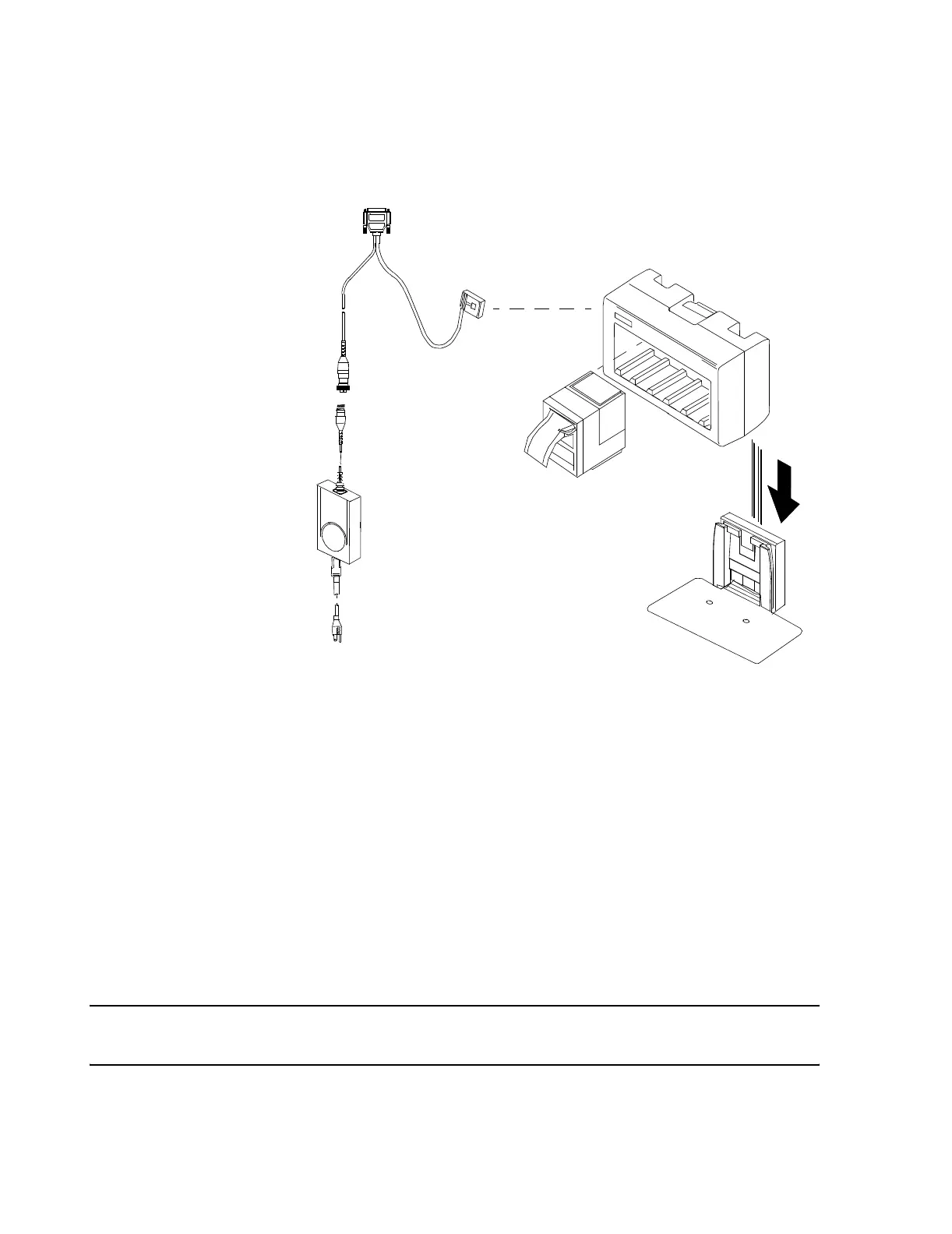

Figure 2-15 Philips 2-Channel Recorder System
Recorder Module The M1116B #201 Thermal Array Recorder Module is a thermal array recorder that
provides high resolution, high quality waveforms. The grid and waveforms are printed
simultaneously to assure accurate registration. It has recording capability for up to three
waveforms with multiple lines of annotation and provides the following annotations for
each recording:
• Patient name (as in the Admit window)
• Patient Medical Record number (as in the Admit window)
• Bed label
• Date and time of the first waveform printed
• Alarm/INOP message of the highest priority, most recent event
• Patient parameters available at the time of recording
• Recorder speed
Note Refer to the IntelliVue Information Center Instructions for Use for detailed operating
procedures.
Features
Recorder
Cable
Bracket Stand
Assembly
60VDC
Power
Supply
M1116B #201
Recorder
M1276A #201
Module Rack
Data
Cable
