System Components
2-24 Hardware Description
Uninterruptible
Power Supply
An Uninterruptible Power Supply (UPS) is provided with each Information Center and
Database Server. It provides up to 90 seconds of battery power to maintain system operation
and eliminate time consuming software rebooting during short power transitions (e.g. power
generation tests).
Caution The Philips 9 pin UPS communication cable (gray) must be used when connecting the
devices to the UPS. Do not use the black COM cable that ships with the UPS.
Warning UPSs are shipped without their internal battery wire connected. Before use, the battery
wire must be connected.
Only Voltage Outputs labeled BATTERY BACKUP should be used for UPS protection.
The UPS for the Information Centers, Clients, Patient Link and M3169 Database Server
is rated at 650 VA and comes in three versions -- 100-127 VAC (50/60 Hz), 100 VAC (50/
60Hz), and 220-240 VAC (50/60 Hz). The versions look similar and are shown in Figure 2-25
along with typical UPS front and rear panels.

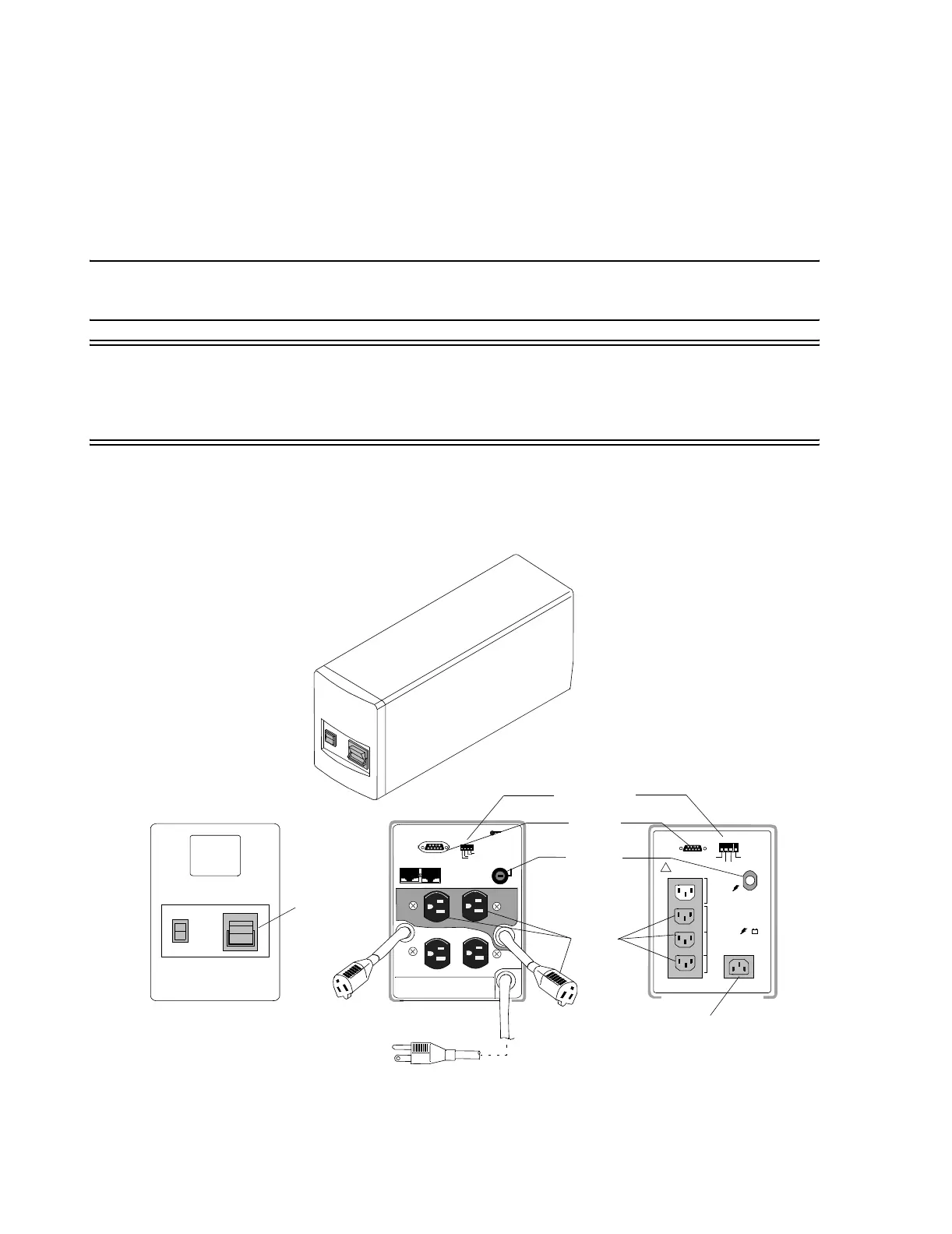

Figure 2-25 650V UPS
OVERLOAD
PROCTECTOR
UPS OUTPUT
120V 50/60 Hz
INPUT
TOTAL
4 3 2 1
COMPUTER
INTERFACE PORT
SITE
WARNING
FAULT
ACCESSORY
SURGE
PROTECTION
On/Off
Front Panel
I/O Port
Switch
Overload
Protector
Reset
Switch
DIP Switches
Rear Panel 230V
230V AC in
UPS
BATTERY
BACKUP
OUTPUT
CURRENT
12A MAX
120V-
50-60 Hz
12A
4 3 2 1
!
FULL-TIME SURGE
SURGE PROTECTION
l
0
Test
PROTECTION
AND BATTERY BACKUP
650 VA 400W)
220-240V-
3.0A, 50/60Hz
+
Outputs
Rear Panel 120V
To Next Page
