System Components
Hardware Description
2-25
The UPS for the M3154 Database Server is 1000 VA and comes in 3 versions -- 100 VAC
(50-60Hz), 120 VAC (50-60 Hz), and 230 VAC (50-60 Hz). It is shown in Figure 2-26 along
with typical front and rear panels.

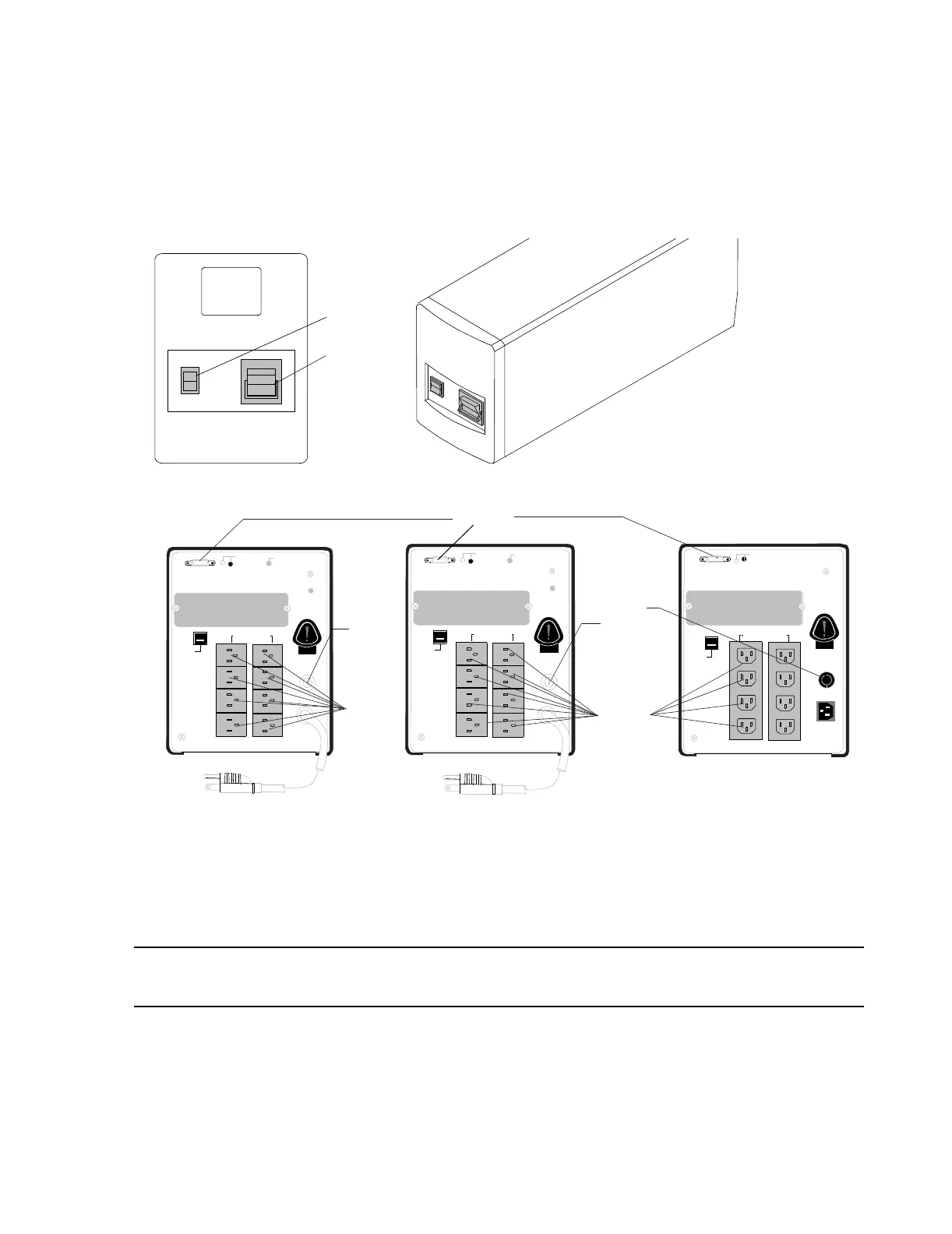

Figure 2-26 1000 VA UPS for M3154 Database Server
Dip Switches UPSs have rear panel DIP switches that must be set in specific positions for the UPS to
operate properly. Dip switch settings for 120V and 230V models are shown in Figure 2-27.
Note The switch settings of Figure 2-27 must be made during installation since they are shipped
with all switches on OFF (down).
TVSS GND
USB PORT
SENSITIVITY
SITE WARNING FAULT
OUTPUT 120-50/60 Hz
1000 Model VA 670W
1500 Model VA 969 W
INPUT
120V 50-60 Hz
12A MAX
On/Off
Front Panel
Switch
Test
Switch
l
0
Test
Rear Panel 120 V
Rear Panel 230 V
I/O Port
Overload
Protector
Reset
Switch
UPS
Outputs
1000 VA UPS
SENSITIVITY
OVE RL OAD
PROTECTOR
INPUT
220V-240 50-60 Hz
7A MAX
TVSS GND
USB PORT
OUTPUT 220-240-50/60 Hz
1000 Model VA 670W 4.5A
MAX
Rear Panel 100 V
TVSS GND
USB PORT
SENSITIVITY
SITE WARNING FAULT
OUTPUT 120-50/60 Hz
1000 Model VA 670W
1500 Model VA 969 W
OVE RL OAD
PROTECTOR
INPUT
120V 50-60 Hz
12A MAX
Reset
Switch
UPS
Outputs
