Locating System Components
Hardware Installation
5-7
The procedure for mounting the swivel mount hardware and display is described in detail in the
Installation Note supplied with that option.

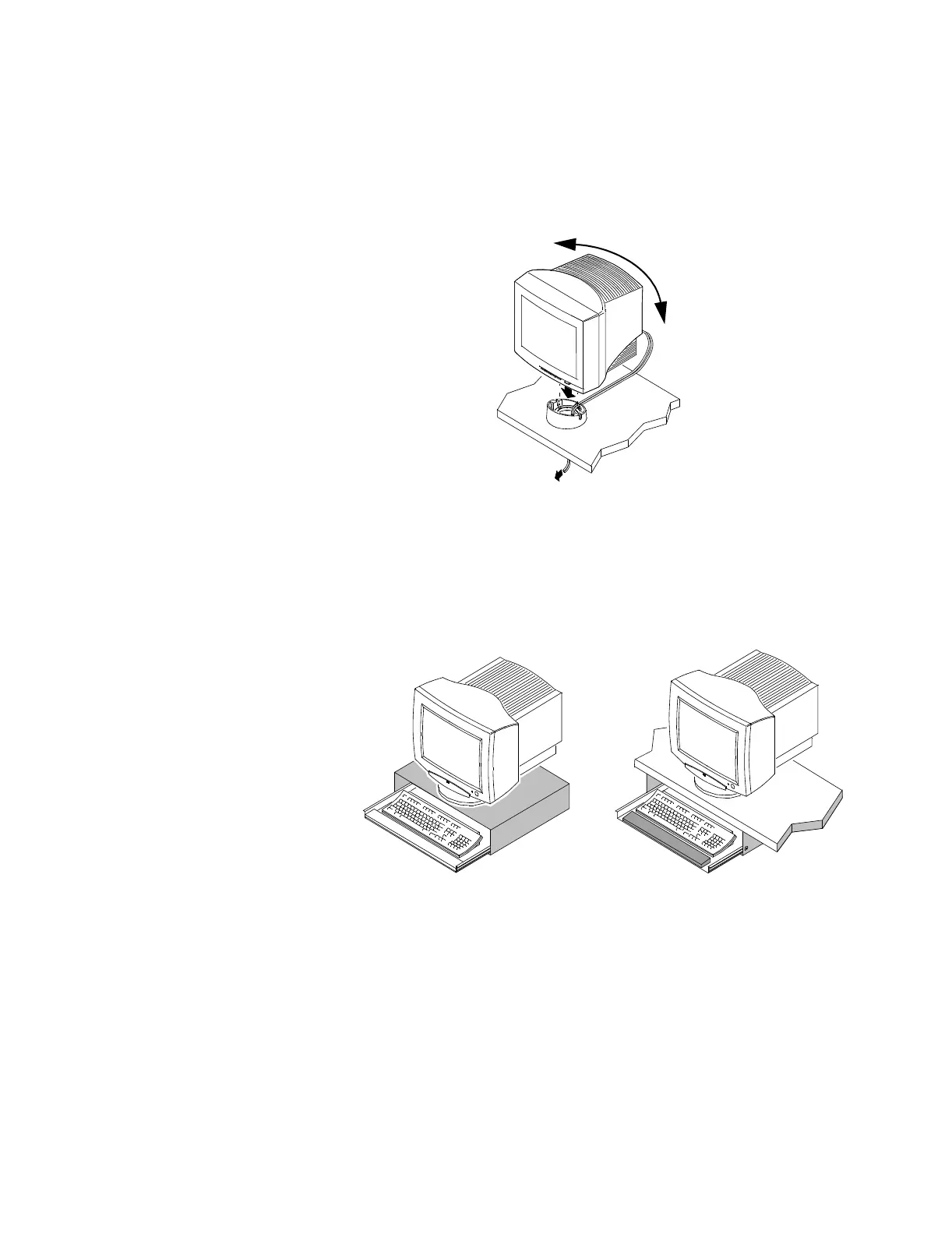

Figure 5-6 M3180 #A05 Permanent Swivel for Medium CRT Displays
Keyboard
Mounting
Options
Two work surface installation options are available for the computer keyboard -- a table top
garage (PN M3180A #A09) and an under table drawer (PN M3180A #A08). See Figure 5-
7.These options permit putting the keyboard out of the way when not being used to provide
additional work surface area. Procedures for installing these units are described in installation
notes that come with the units.
Figure 5-7 Computer Keyboard Mounting Options
270
o
18.5
18.5
Table Top
Under Table
Garage
Drawer
