Computer Cards
2-46 Hardware Description
Computer Cards
Within a typical Information Center processing unit there are four PC cards that tailor the
system to Information Center applications. These are a Dual Video Graphics Card (for
M3150 systems), the PC System Board (mother board), an Audio Sound Card, and an
SDN Card. See figures below for placement in the PC workstation.
Dual Video
Graphics Card
The Dual Display Video Graphics Card permits the Information Center to double its display
area. In this optional configuration, the Main Screen appears on the primary display and the
Patient Window and control screens appear on the second display.
When this option is purchased as part of an initial Information Center installation, the Dual
Video Graphics Card has been pre-installed and the Information Center software
preconfigured for operation. When purchased as an upgrade option, the Dual Display upgrade
kit includes an Installation Note that describes installation and configuration.
Note When installing a upgrade of the system, installation of a dual display card in a single display
system is not allowed.
Installation of the Dual Video Graphics card into the processing unit is described in the PCs
Familiarization Guide provided in the Information Center Service Documentation CD-

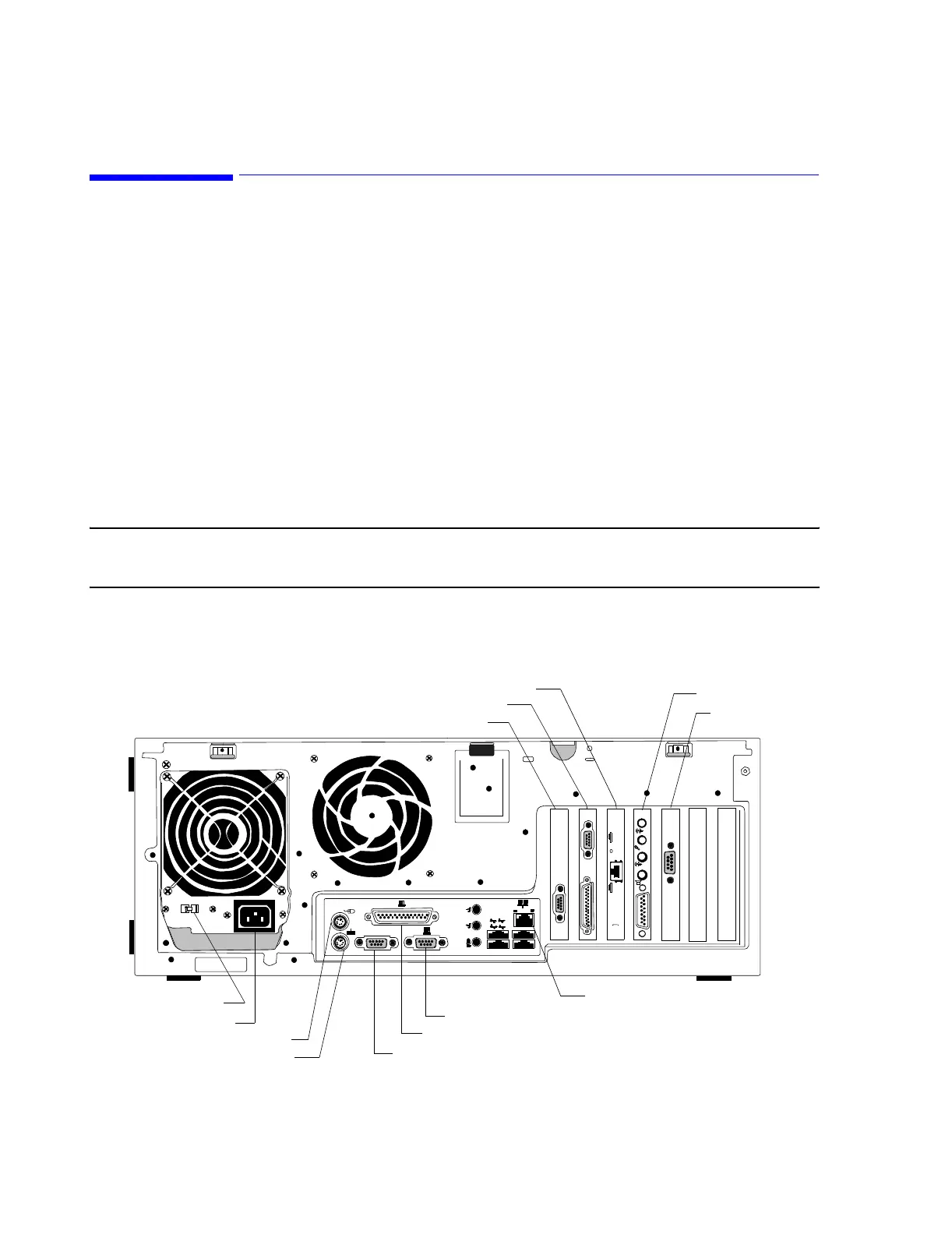

ROM. See the figures below for video card placement in the D510 PC.
Power Cord Connector
Voltage Select Switch
Mouse Connector
Keyboard Connector
Serial Connector (COM A)
Display Connector (not used if Dual Display)
Parallel Connector
Sound Card
Dual Video Card
SDN Card
Serial Connector
(COM B) Card
(Optional)
LAN Connector (clinical)
10BT
100TX
-
(Optional) 2nd NIC (Hospital) LAN Card
To Next Page
