Clinical Applications
Introducing the IntelliVue Information Center System
1-29
Clinical Applications
The Information Center is a patient monitoring central station that provides a wide variety of
clinical monitoring applications. The primary application is the central display of
physiological waveforms and parameters from patients connected to networked bedside and
telemetry monitors. Information Center applications derived from these measured data include
alarm annunciation, arrhythmia analysis, ST segment analysis (for telemetry monitors), and
extensive patient data history review capability.
Patient
Monitoring
Information Center application software provides the display of physiologic waves and
parameters for up to 16 patients from bedside and telemetry monitors connected to an
Information Center via the CareNet.
Typical Plug-in
Modules
The Information Center can display the outputs of the variety of Plug-in modules that can be
used with Philips’ bedside monitoring systems some sample modules are shown below - refer
to the Information Center Instructions for Use and to Table 1-6.

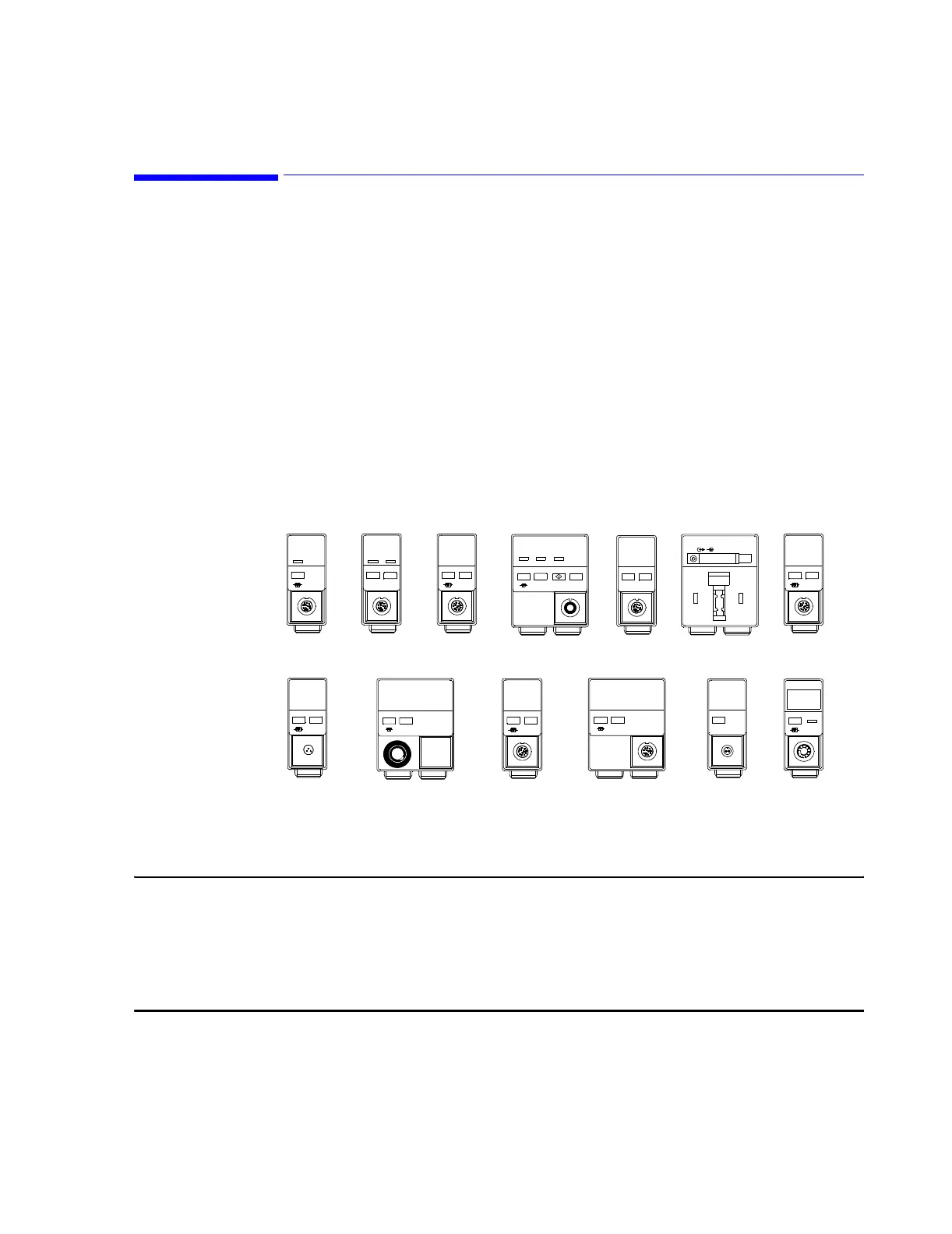

Figure 1-19 Typical Plug-in Modules (not inclusive) Used in Philips Bedside
Monitoring Systems
Note VueLink modules provide SDN interfaces with external monitoring devices. There are three
VueLink module options, each interfacing with a specific device group:
• Stand-alone parameter devices
• Ventilators
• Gas analyzers
Several external devices are supported within each device group.
CO
2
CAL
CO
2
M1016A
T
PRESS
ZERO
PRESS
M1006A
T
START
STOP
NBP
M1008B
T
NBP
STAT
ECG
ECG
M1001A
T
ECG
ECG/RESP
M1002A
T
RESP
SpO
PLETH
SpO2/PLETH
M1030A
T
TEMP
TEMP
M1029A
T
M1015A
tcpO
2
/tcpCO
2
M1018A
T
NBP
STAT
SvO
2
M1021A
T
SvO
2
CALFlO
2
21%CAL
FlO
2
M1017A
T
C.O.
C.O.
M1012A
T
START
VueLink
VueLink
M1032A
T
M1001A/B M1002A/B
M1006A/B
M1008A/B M1012A
M1015A M1016A
M1017A
M1018A
M1020A
M1021A
M1029A M1032A
ECG ECG/Resp
Press
NPB CO
Sidestream CO
2
CO
2
FIO
2
tcpO
2
/tcpCO
2
SvO
2
SpO
2
/Pleth
Temp VueLink
