System Components
2-18 Hardware Description
Note The complete list of replaceable parts is given in the Service Documentation CD-ROM -
Replaceable Parts List Product Family.
Speaker An external Speaker is provided with the Information Center system to assure that alarm
tones can be clearly heard at the central monitoring station. There may also be a speaker
internal to the processing unit, but it may be located distant from the central station so that an
external speaker is also required.
The speaker can be attached to the speaker bracket with double-sided tape and the bracket
screwed to the rear of the Recorder Rack as shown in Figure 2-19.

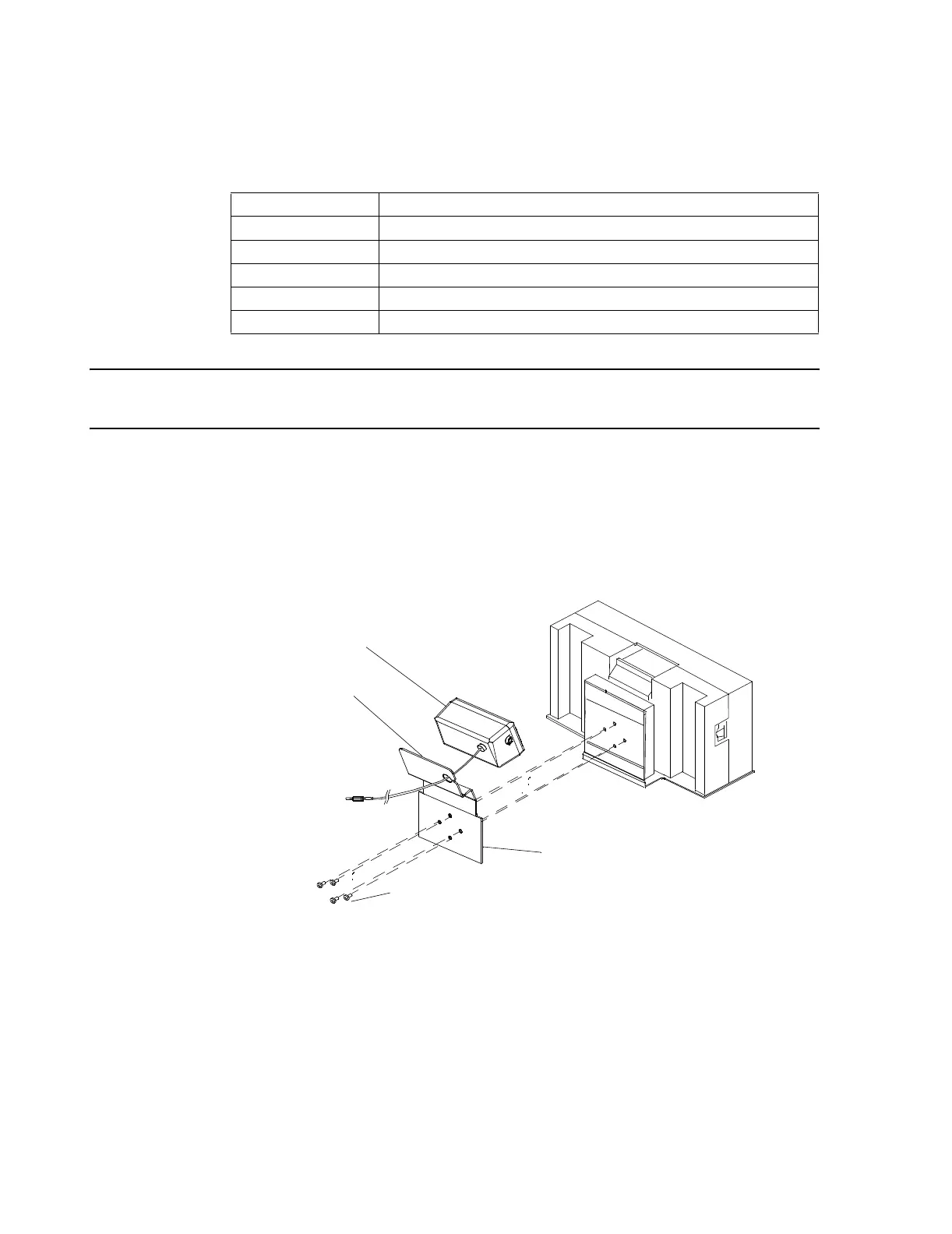

Figure 2-19 Mounting of External Speaker
Philips 4-Channel
Recorder
(Optional)
The Information Center also supports an optional 4-channel Recorder, Model M3160 (not
available in all geographies) on M3150 Information Centers, M3170 Patient Link, and on
Database Systems. Recordings are obtainable from both SDN bedsides (not for M2/M3/M4/
IntelliVue patient monitors) and from IntelliVue Information Centers.
M2300-40011 Rack Blank Panels (2)
M3180-60400 Bracket Stand Assembly
M3180-60040 60VDC Power Supply
M3180-60170 Recorder Cable 1m to PC/3m to rack standard
M3180-60150 Recorder Cable 1m to PC/6m to rack optional
Table 2-1. Philips Recorder System Components
Philips Part Number Description
Speaker
Double-
Speaker
Bracket
Mounting
Screws
Sided
Tape
To Next Page
