System Components
Hardware Description
2-19
The M3160 4-channel recorder includes a 24 Vdc power supply and cable, a serial interface
cable, and a box of 24 rolls of paper. Refer to the table below for items included with the
M3160 4-Channel Recorder.
The M3160A 4-Channel Recorder shown below is a fixed-head thermal line printer that can
produce up to 4 waveform tracings on a 112 mm wide paper strip. Annotation and grid
markings are included on the tracings. The resolution is 8 dots/mm. Various wave and grid
formats can be selected via the appropriate application. The M3160 recorder is only supported
in Information Center systems in limited geographies. When upgrading existing system PCs
BIOS changes may be required for the 4-channel recorder to connect properly to the Serial B
Port. See Troubleshooting and Repair section of this manual for details.

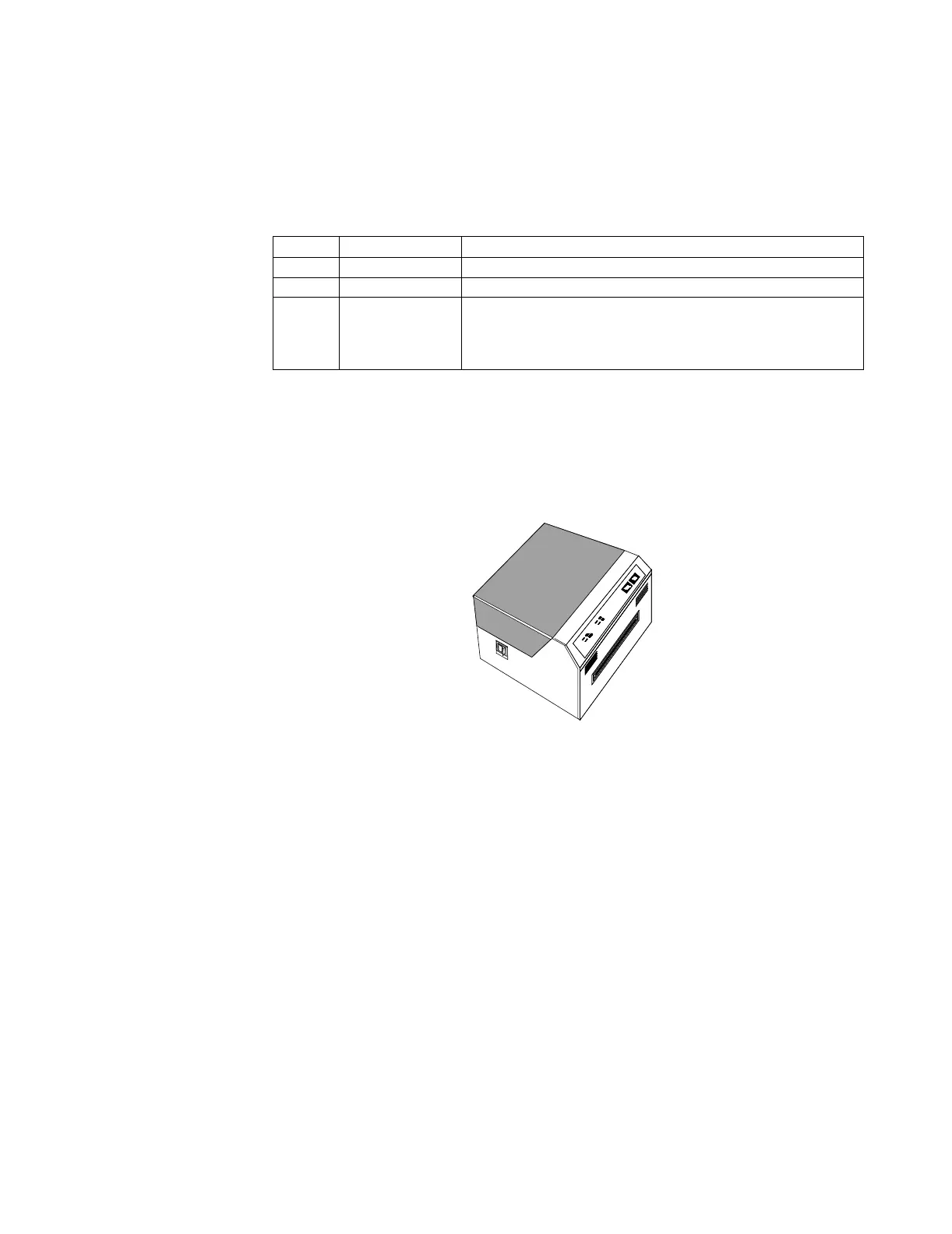

Figure 2-20 M3160 4-Channel Recorder
Controls and Indicators for the model 4-channel recorder are shown below. Complete user
instructions for use with the Information Center(s) are described in detail in the Information
Center Instructions for Use.
Qty Part Number Description
1 M3160A 4-Channel Recorder with 24Vdc Power Supply and Cable
1 CAB-CTG 09452 Serial Interface Cable (7.6m, 25ft.)
1 PSE11268 24 Rolls included - order additional paper separately via part number
PSE11268 = 24 rolls of 112 mm W x 68 m L thermal paper. Paper
changing instructions are described in the Maintenance Section of
this manual.
