Locating System Components
5-16 Hardware Installation
Printer
Installation
Install all printers that connect to switches as follows:
When connected to a network, a JetDirect, 10Base-T Ethernet card must be installed in the
LaserJet Printer. This card comes with Option M3159A #A02. A 10 Mbit/s, UTP cable with
an RJ-45 connector is then used for the connection.
The Printer is the 2300L model manufactured by Hewlett-Packard and shown in Figure 5-
16. Front panel controls for the 2300L are shown in Figure 5-17. Rear panel cable
connections are shown in
Note See the LaserJet 2300 Printer User’s Manual for procedures for properly unpacking and setting
up the printer.

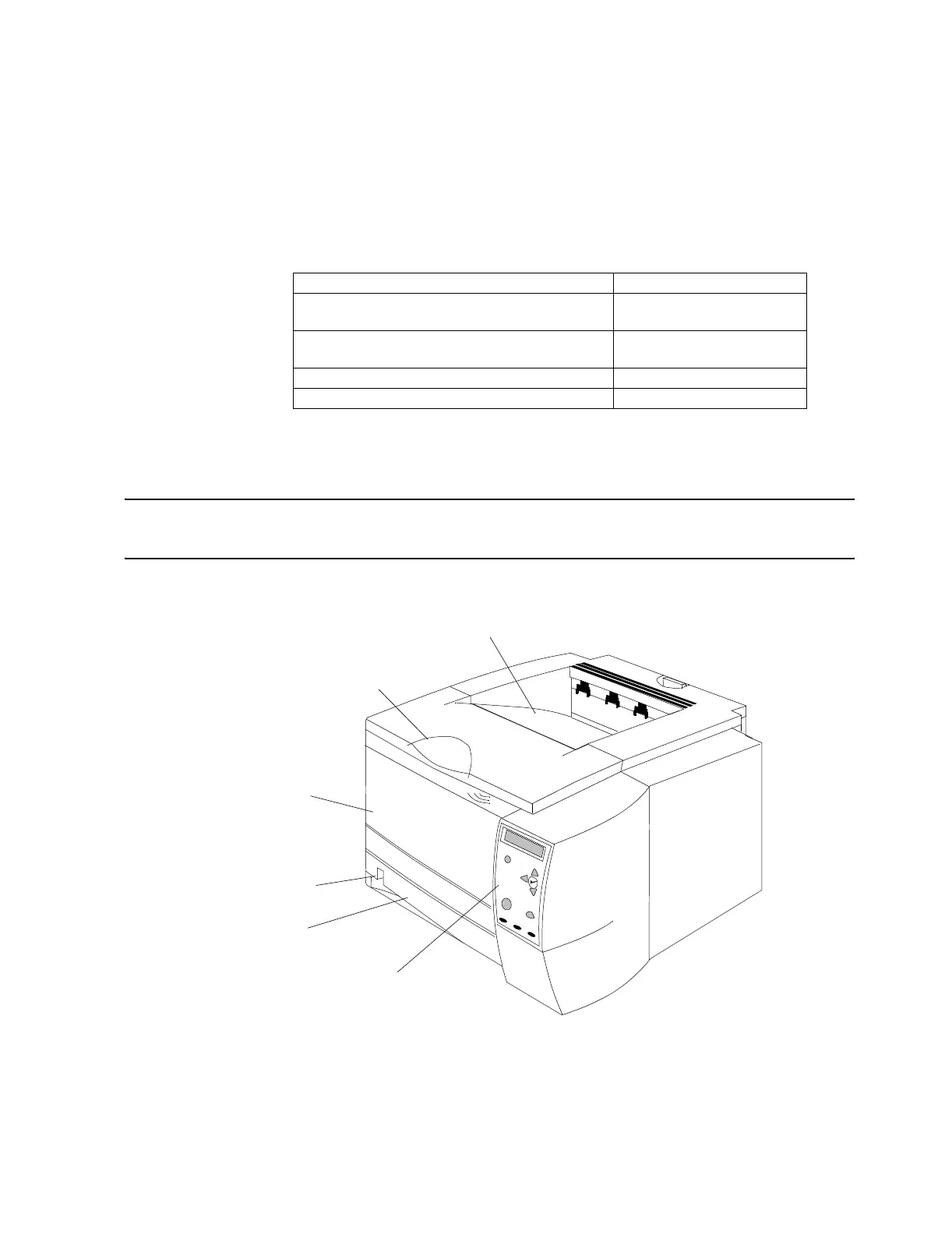

Figure 5-16 2300L LaserJet Printer
Device Maximum # of Printers
M3150 Information Center (local database);
M3170 Patient Link
2
M3154 Database Server system (connection to M3155
Information Centers)
8
Large Network M3154 Database System 80
M3169 Small Database Server System 4
Top cover
(access to print cartridge
and serial/model #)
Tray 1
(pull down)
Paper Level
Tray 2
Top Output Bin
Control Panel
Indicator
