Philips IntelliVue Series User Manual

System Components
Hardware Description
2-15
The front panel of the Philips M1116B Recorder Module is shown in Figure 2-16. The front
panel indicator and controls do the following:
1 - Continue Indicator - An LED that blinks twice when the module is first plugged
in, indicating that the recorder self-test has completed successfully. It remains lighted
during continuous recordings.
2 - RUN/CONT Key - Pressing this key makes a current recording continuous (if
permitted).
3 - STOP key - Pressing this key stops the current recording.

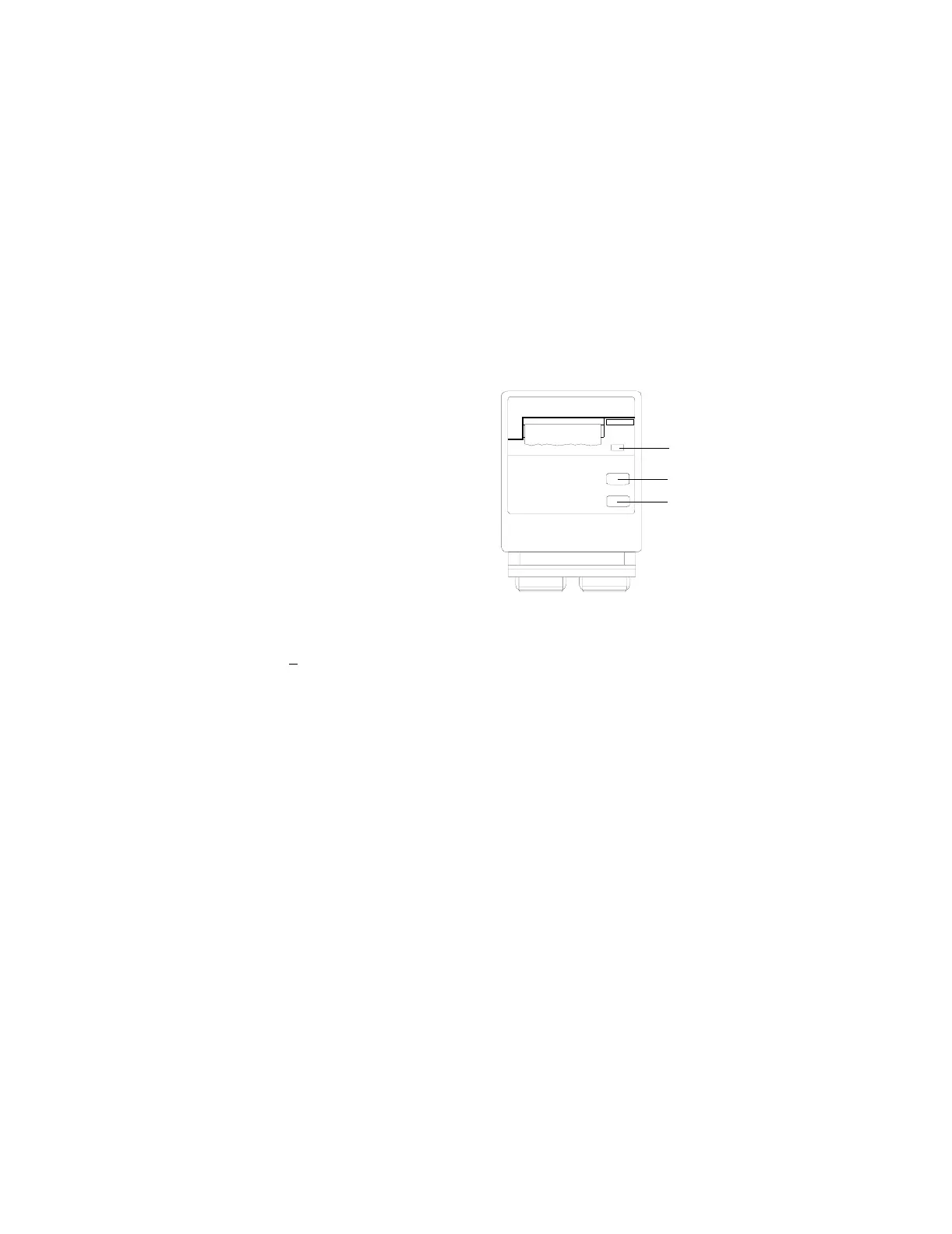

Figure 2-16 M1116B Recorder Module Front Panel Controls
The Philips 2-Channel Recorder has the following recorder speeds. Recorder speed accuracy
is +
2%.
50 mm/s 300 cm/min.
25 mm/s 150 cm/min.
6.25 mm/s 37.5 cm/min.
The Recorder print head has the following characteristics:
• Width: 50 mm (2 in)
• Resolution: 8 dots/mm (200 dots/in.)
It can produce one 40 mm waveform or two 20 mm waveforms.
Types of Recordings
The Philips Recorder can generate recordings automatically when alarm events occur or
manually when requested. The following types of recordings can be generated from either an
IntelliVue Information Center system or a bedside monitor:
• Real-time
• Delayed
•Stored
RUN/
STOP
REC M1116A
CONT
Continue Indicator
Run/Cont Key
Stop Key
M1116B
