System Components
Hardware Description
2-7

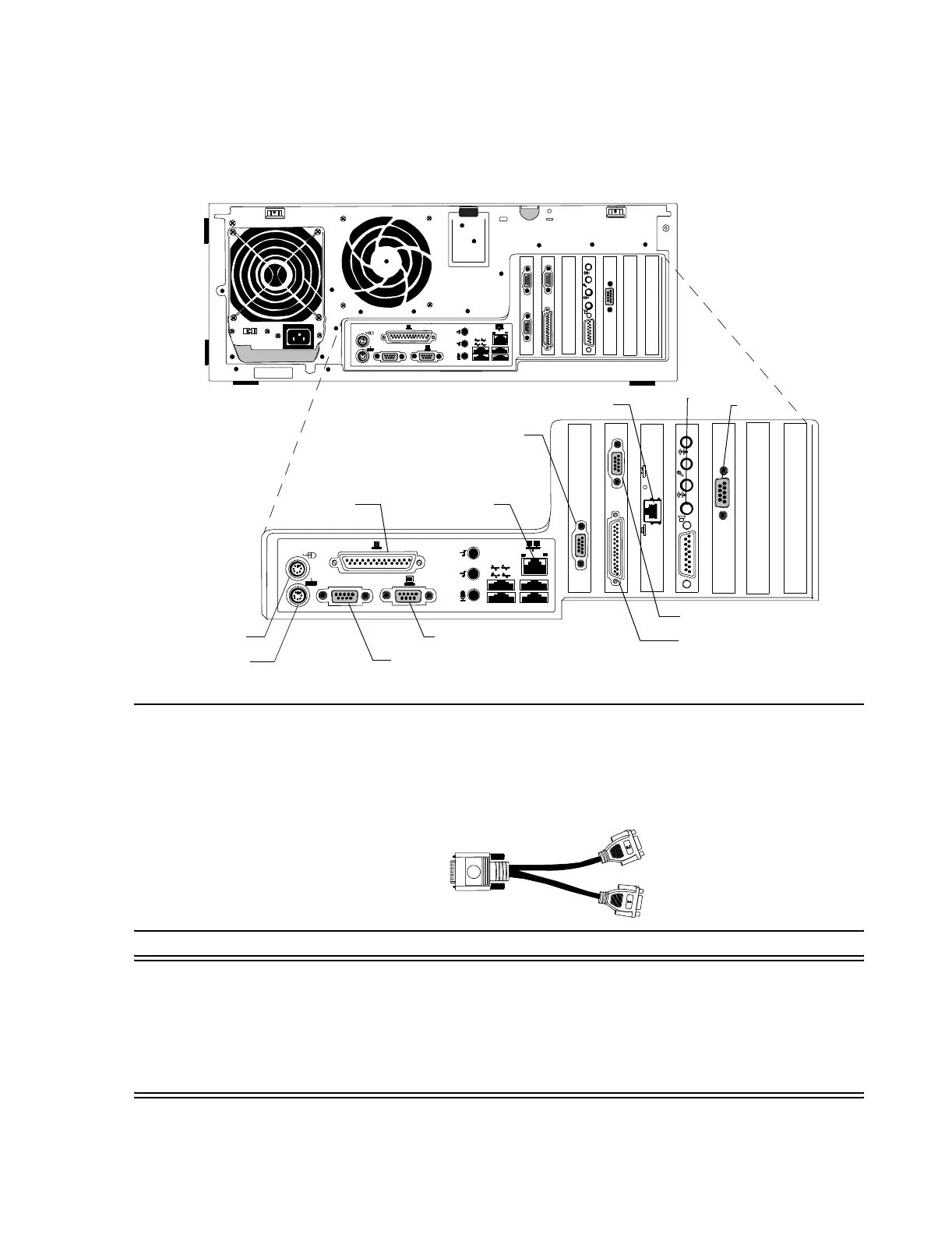

Figure 2-5 Plug Connections for D510 Information Center Systems
Note For Single Display systems, the Main Display is plugged into the 9-pin Main Display
connector on the rear of the PC.
For Dual Display systems, a Dual Video Card and Y-Cable are required. The Y-Cable plugs
into the 9-pin Display connector on the Dual Video Card. The Main Display then plugs into the
Y-Cable connector labeled 1 and the Second Display plugs into the Y-Cable connector labeled
2. The rear panel Main Display connector is not used.
Warning Cables with plugs not firmly attached by screw connections must be secured to prevent
accidental unplugging. Make certain that the speaker cable cannot accidentally be pulled
out because it annunciates alarms. Use the Strain Relief Kit (M3150-60019) provided and
secure the speaker cable to another cable that is secured with a screw connection. When
securing all cables, be sure to provide strain relief loops and cinch cable ties securely. See
Figure 2-45 on page 2-47.
Mouse
Keyboard
UPS
Main Display*
Printer Clinical Network
Speaker
4-Channel
Ext. Modem
(Optional)
Y-Cable*
SDN
2-Channel
* See Note
Recorder Rack
(Single Display)
(Dual Display)
10BT
100TX
-
Hospital LAN NIC Card (Optional)
Recorder or
To Dual Video
Card Connector
(1) To Main Display
(2) To Second Display
To Next Page
