LCT (A698)
SM 3-23 A229
Installation

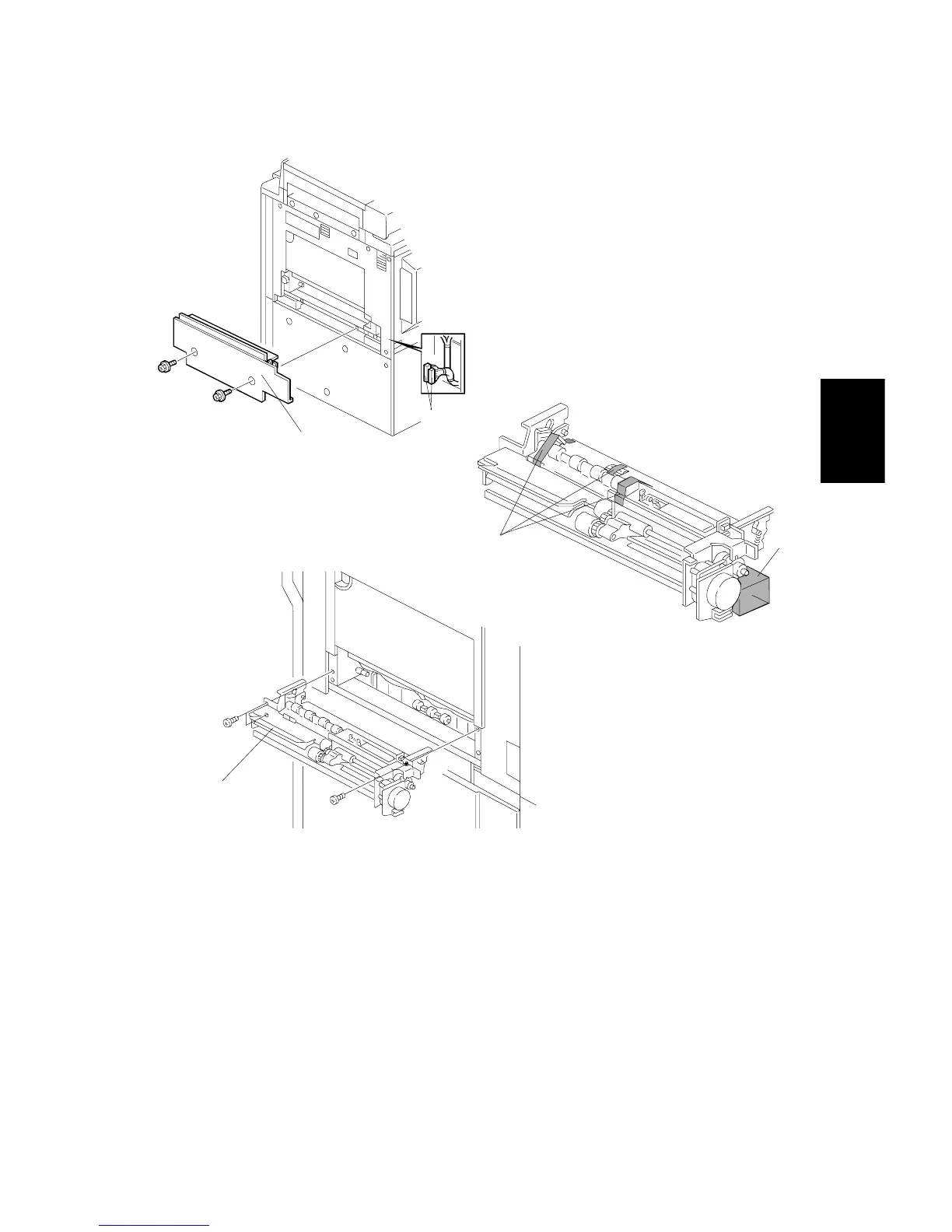

5. Remove the feed unit cover [A] (2 screws) and free the LCT connectors [B].
6. Remove the shipping retainers [C].
7. Install the LCT feed unit [D] in the copier (3 screws - M4 x 8).
A698I504.WMF
A698I505.WMF
A698I506.WMF
[A]
[B]
[C]
[C]
[D]
