You have now configured all transitions with jump destinations in the master recipe. Save your
recipe.

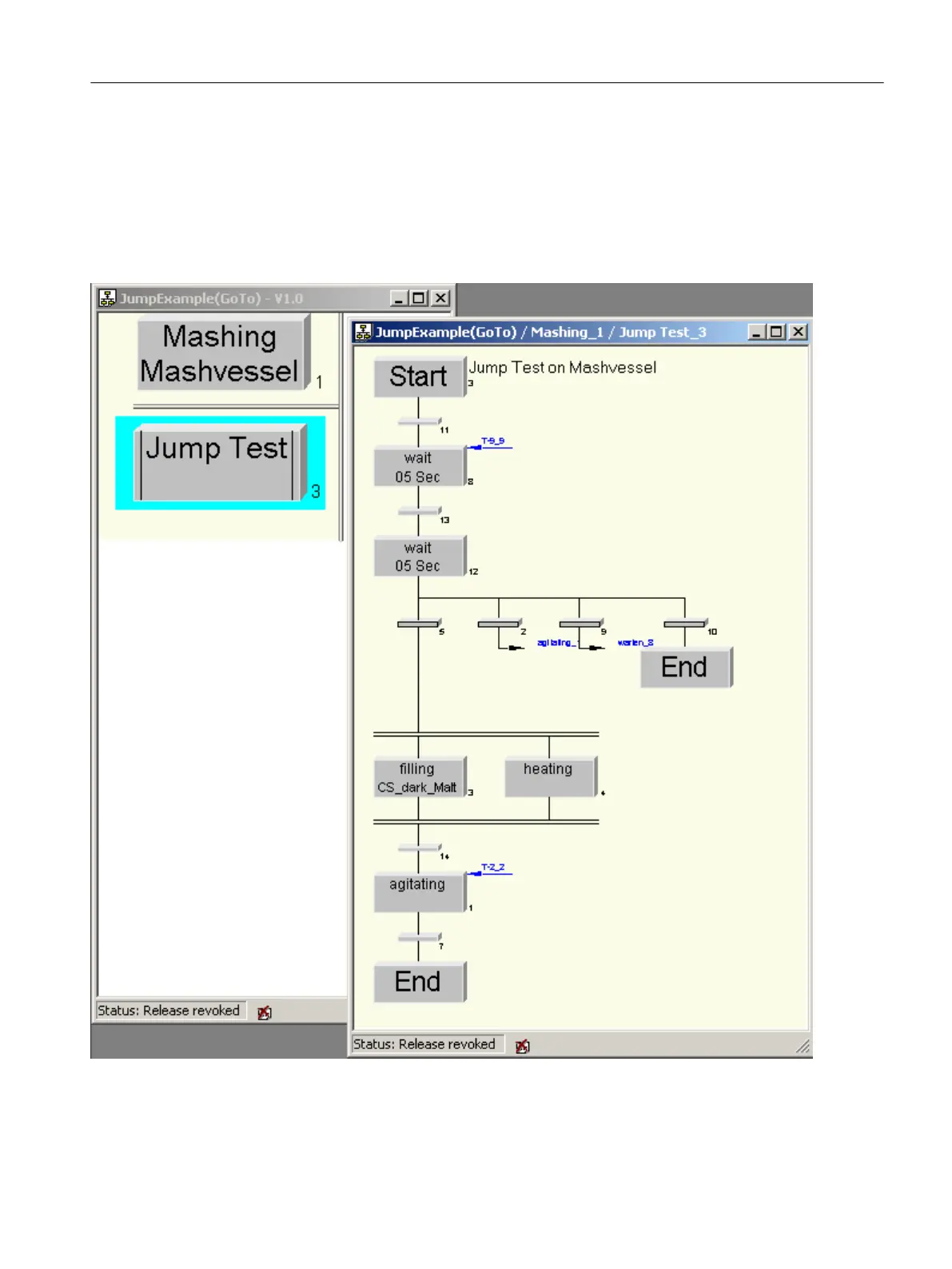

Recipe following configuration in the Recipe Editor
Your master recipe appears as follows after configuration.
Image 10-11 Final recipe for release
BATCH Recipe Editor
10.4 Creating recipes
SIMATIC BATCH V8.2
Operating Manual, 02/2016, A5E35958174-AA 553
