BD25A-AC Series
B-21
BD25A-AC SERIES BRUSHLESS SERVO AMPLIFIERS
Model: BD25A20AC
120 VAC, 50-60 Hz, Single Supply Operation
FEATURES:
• Surface-mount technology
• Small size, low cost, ease of use
• Input signal isolation
• Hall sensor input isolation
• Four quadrant regenerative operation
• Hall sensor commutation
• Agency Approvals:

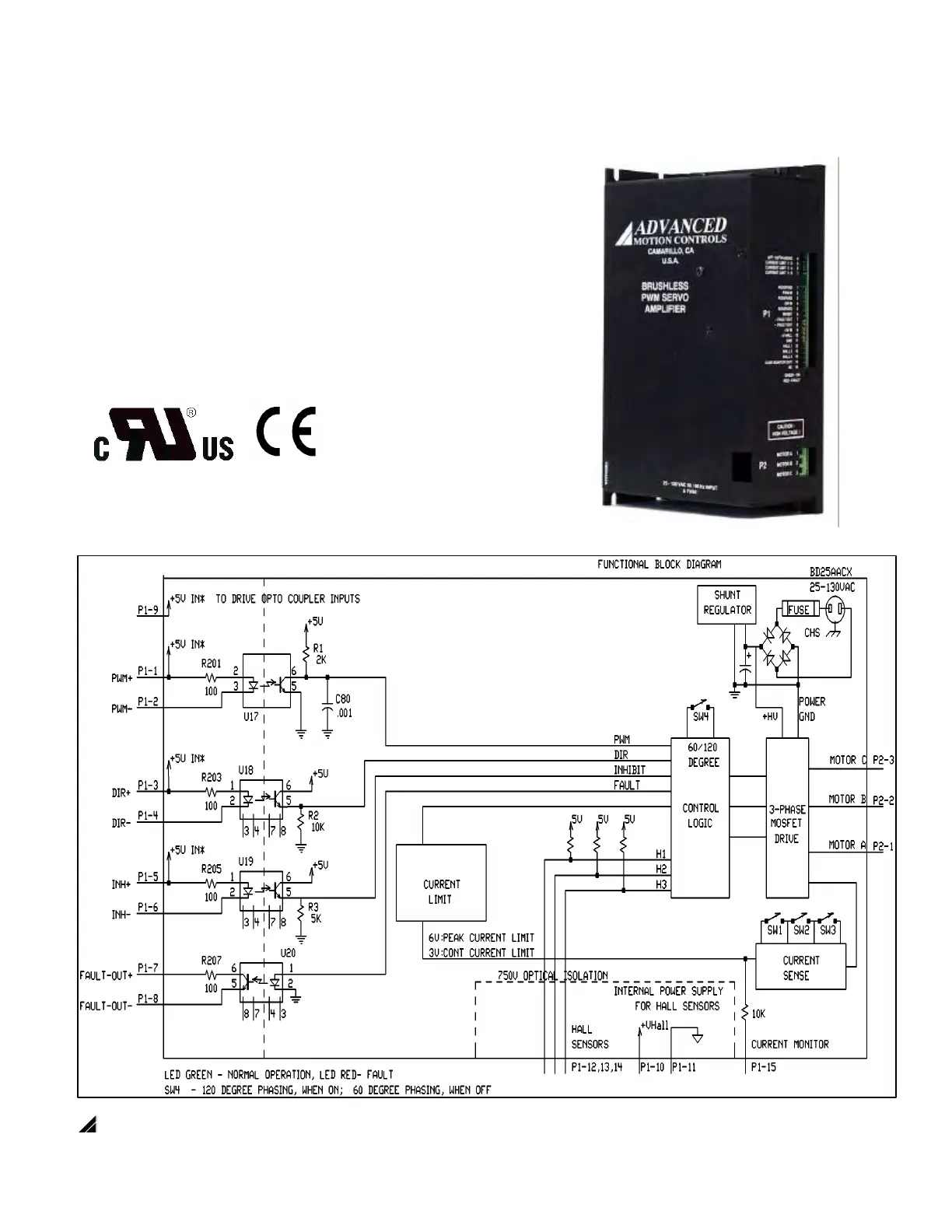

BLOCK DIAGRAM:
ADVANCED MOTION CONTROLS
3629 Vista Mercado, Camarillo, CA 93012 Tel: (805) 389-1935, Fax: (805) 389-1165
