SETTING UP A B5 STATION
This section describes how to install the B5 digital I/O brain board on a compatible mounting rack. It also
discusses B5 configuration issues, including how to set jumpers for the address, watchdog, and reset
line. Finally, it addresses how to install a terminator board when a B5 station is at one end of a Pamux
system and describes the LED indicators.
INSTALLING THE B5 ON A MOUNTING RACK
The B5 brain board measures 4.6 by 4.5 inches. It includes a 50-pin female connector to attach to a
digital I/O mounting rack. At the top of the brain board are two 50-pin male header connectors used to
link the brain board to the Pamux bus. For the last brain board on a Pamux bus, one of these connectors
holds the terminator board.

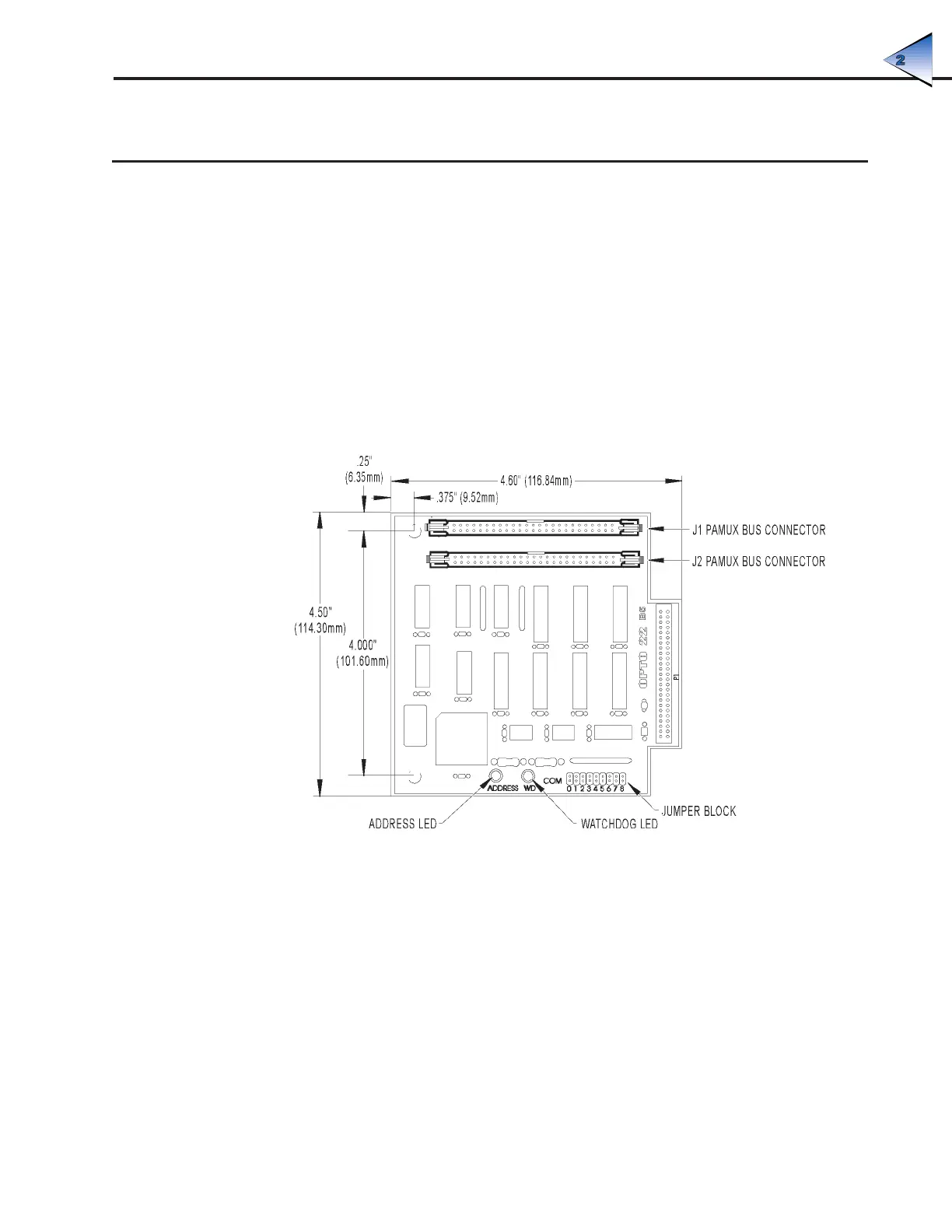

Figure 2-10 is a detailed illustration of the B5 along with its dimensions.
Figure 2-10: Dimensions of the B5 Brain Board
