28 Pamux User’s Guide
The following I/O mounting racks are available for the Pamux B5 brain board:
• G4PB8H — 8-channels of single-point G4 digital I/O
• G4PB16H — 16-channels of single-point G4 digital I/O
• G4PB16HC — 16-channels of single-point G4 digital I/O
• G4PB16J/K/L — 16-channels of integrated single-point digital inputs
• PB4H — 4-channels of single-point standard digital I/O
• PB8H — 8-channels of single-point standard digital I/O
• PB16H — 16-channels of single-point standard digital I/O
• PB16HC — 16-channels of single-point standard digital I/O
• PB16HQ — 4-channels of quad pak I/O (four points per module)
• PB16J/K/L — 16-channels of integrated single-point digital inputs
• SNAPD4M — 16-channels of SNAP digital I/O
• SNAPD4MC — 16-channels of SNAP digital with tie points
• SNAPD4MC-P — 16-channels of SNAP digital with pluggable connectors.

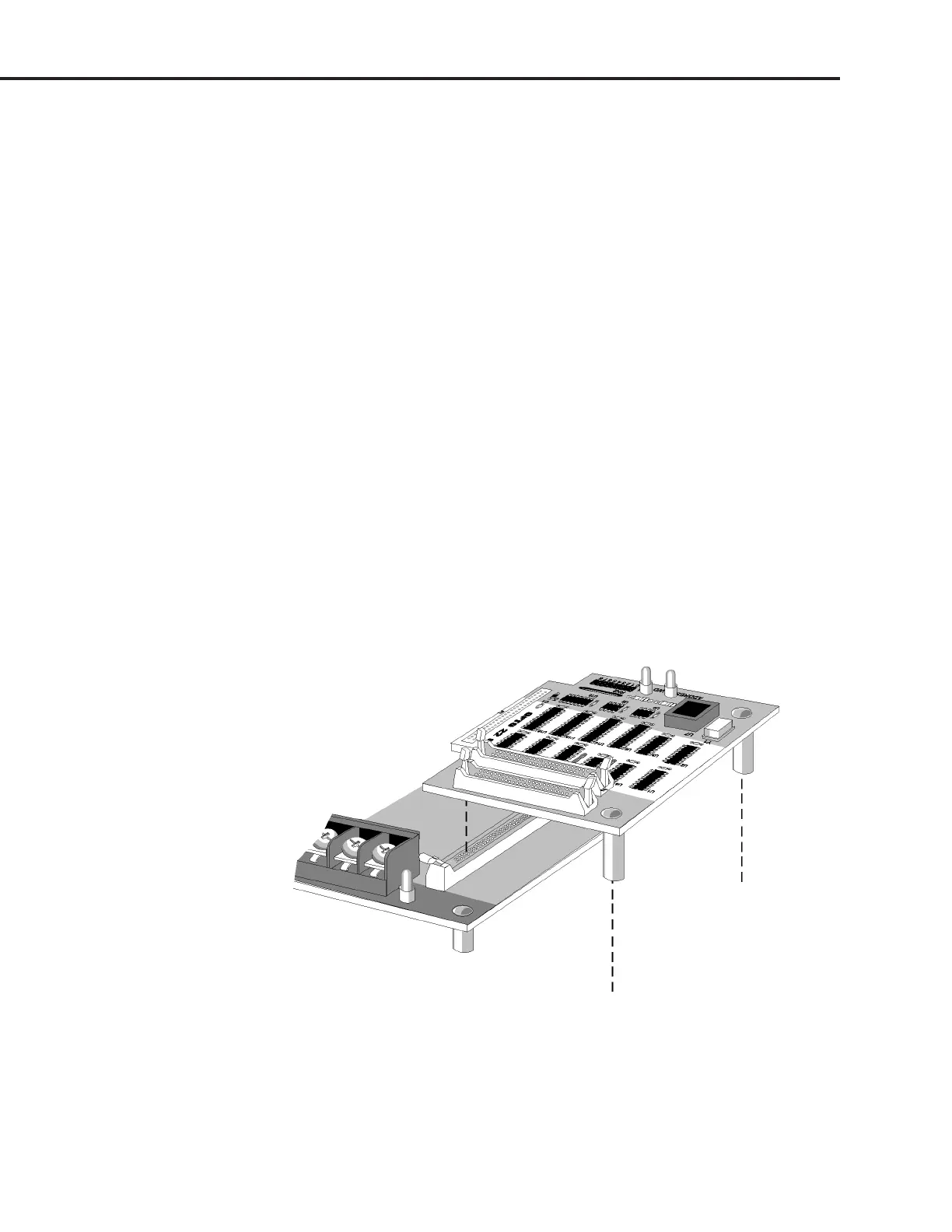

Figure 2-11 shows how the B5 brain board mounts on these racks.
Figure 2-11: Installation of the B5 on a Mounting Rack
SYSTEM SETUP
