Pamux User’s Guide 33

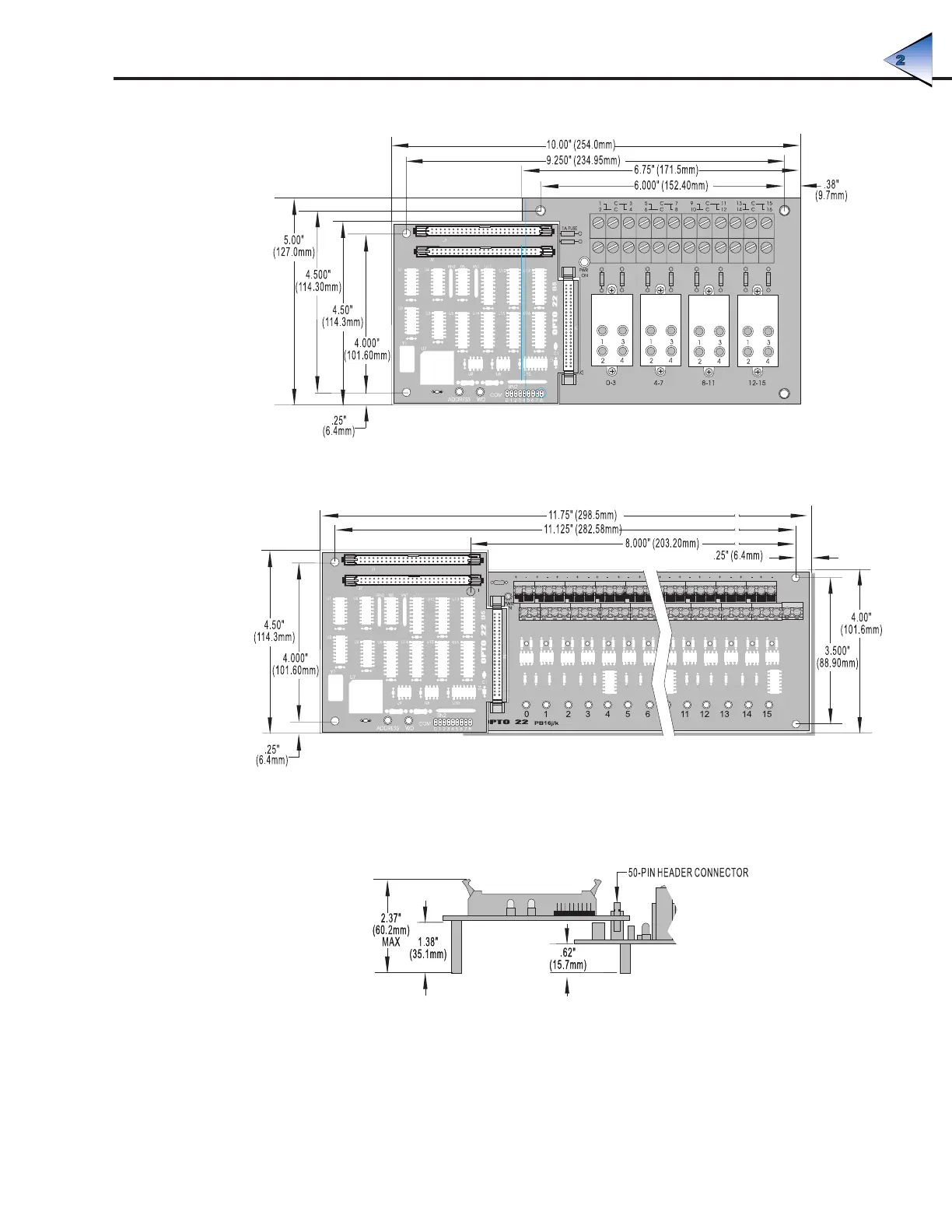

Figure 2-20: Mounting Dimensions of the PB16HQ with a B5 Installed
Figure 2-21: Mounting Dimensions of the PB16J/K/L with a B5 Installed
Figure 2-22 shows the vertical dimensions of the B5 mounted on any rack except the PB16HQ.
Figure 2-22: Vertical Dimensions of the B5 Mounted on Racks other than the PB16HQ
SYSTEM SETUP
