G4PB16I MOUNTING RACK
18 G4 Digital I/O Family Data Book

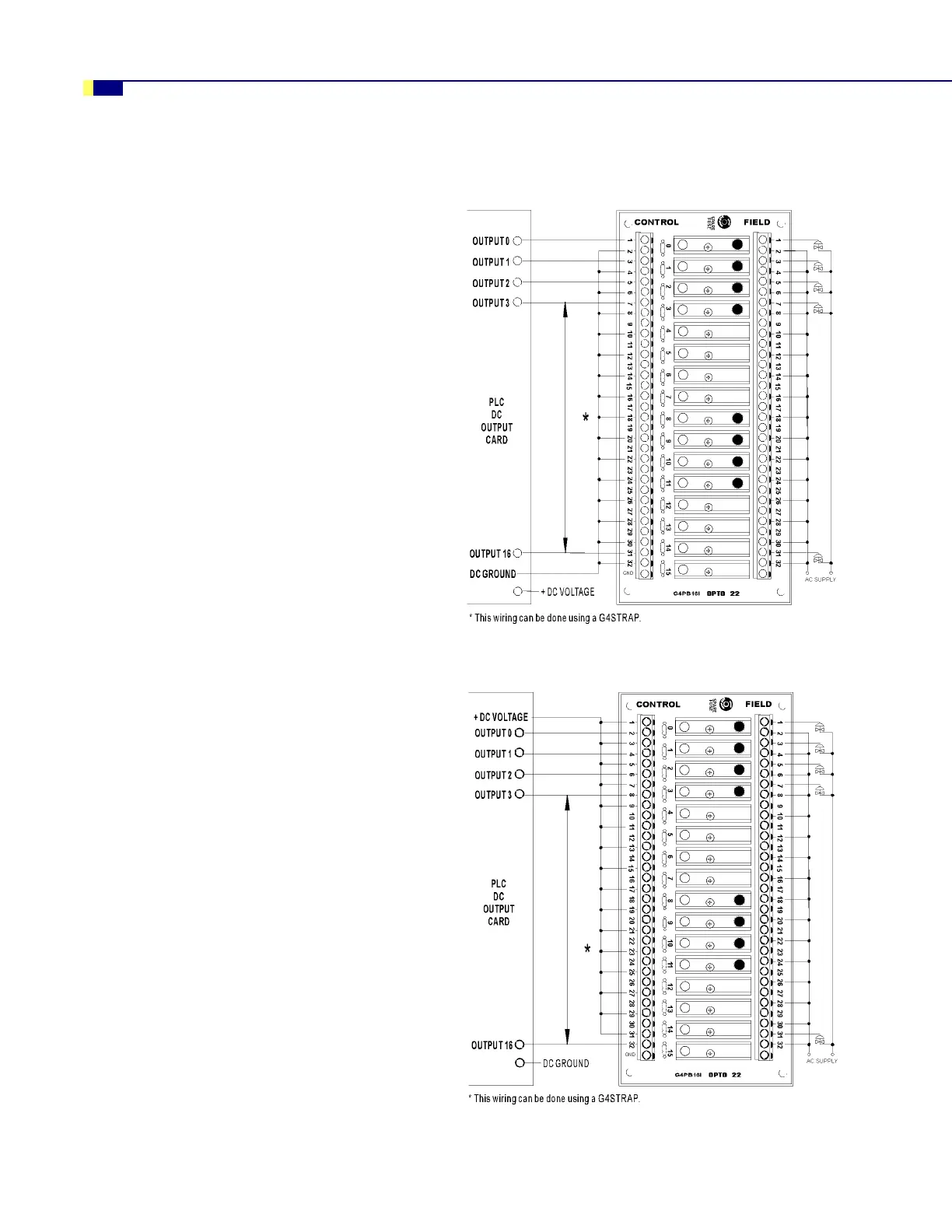

Application Examples—G4PB16I
For wiring G4 digital output modules (except dry contact modules):
Positive-True Logic
Connection to PLC
Negative-True Logic
Connection to PLC
