Atmospheric Single-Arm Robot Manual
4000-0016 Rev A
110

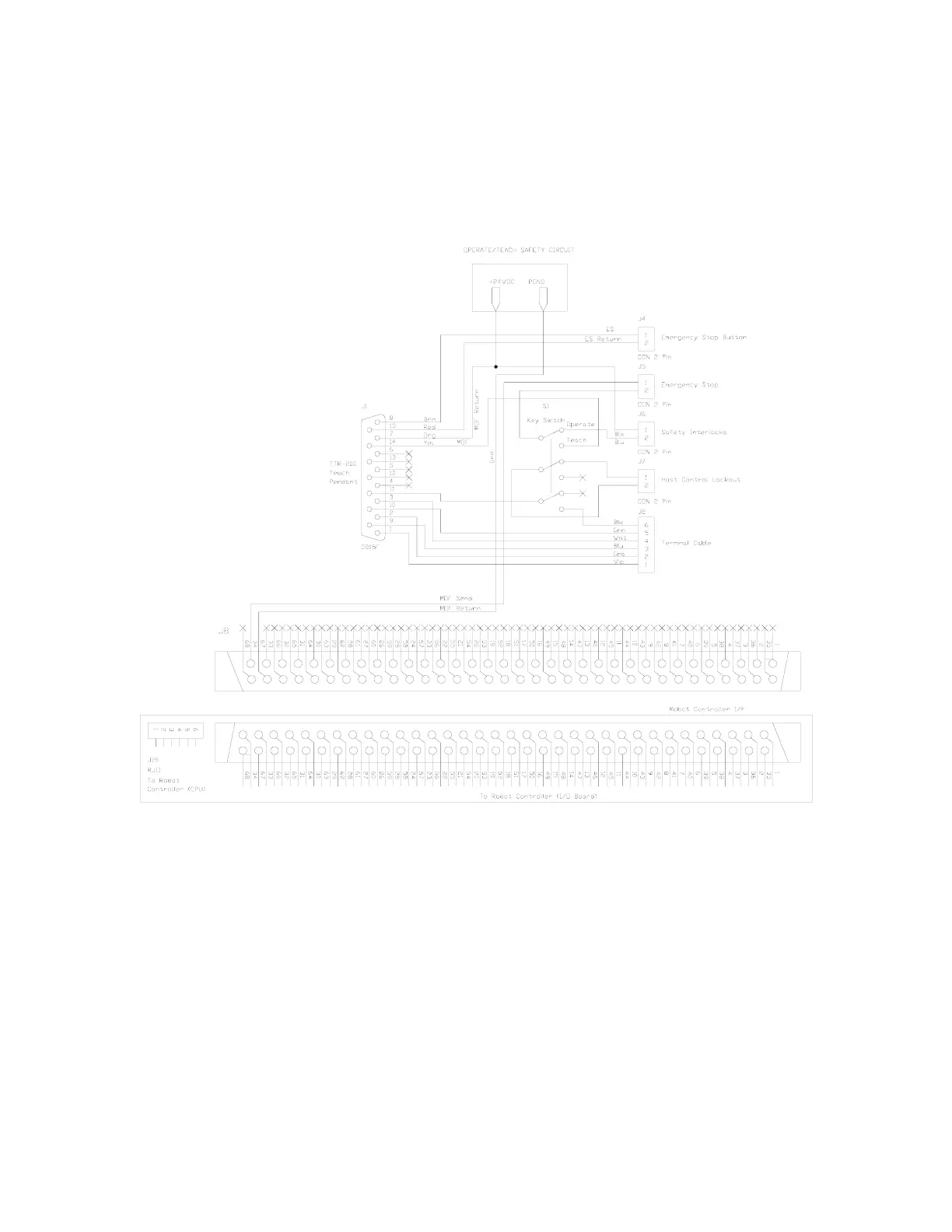

The next two schematics show the connections for the TTR-200 Teach
Pendant. Equipe recommends that you use the default DB37
configuration, the first schematic, or alternatively, the DB68
configuration, the second schematic.
RJ12
To Next Page
