Strasbaugh nTellect (Model 7AF) Wafer Grinder
11 - 142 Version 1.2 - June 2004
SPIN-RINSE STATION
SPIN-RINSE MOTOR DRIVE BELT ADJUSTMENT

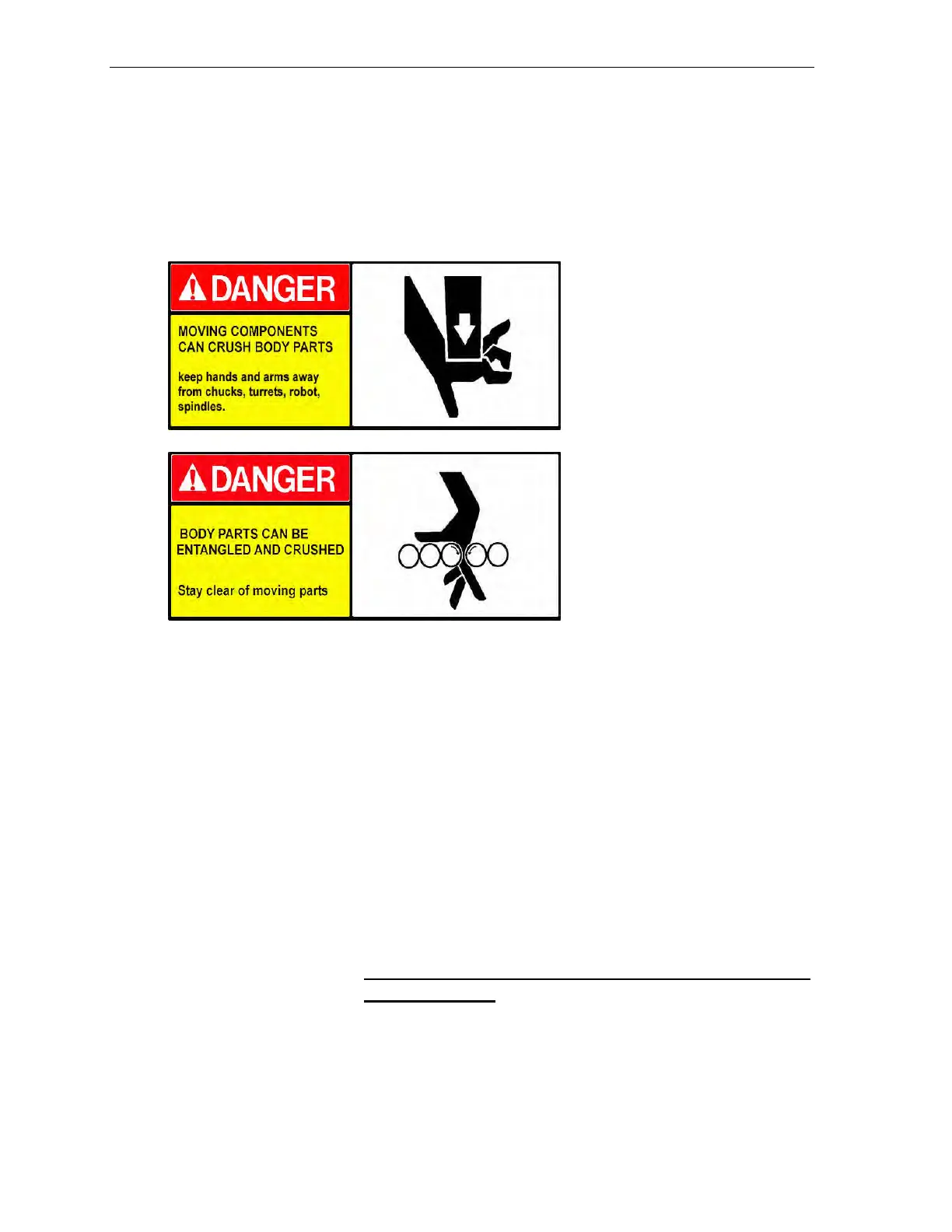

A. BEFORE YOU BEGIN
Tools Required
• 5/32-in. hex key
B. CHECK PRESENT CALIBRATION
1. Open door 10.
2. Check the tension of the spin-rinse motor drive belt:
a. Press the belt at midspan with your finger.
GOAL: The belt should deflect 1/8 in. at center of belt span with
2 LBS. pressure.
