PAGE 2 (EXP) RATIO: The expander ratio (RTIO) can be adjusted from 1:1 (no expansion) to
1:20 (heavy expansion) in the following discrete steps: 1:1, 5:4, 4:3, 3:2,
5:3, 2:1, 3:1, 5:1, 7:1, 10:1, 20:1. The SW key functions as the expander
ON/OFF key.
ATTACK TIME: The expander attack time (ATCK) can be adjusted within a 200 µs to 1 ms
range, in 9 discrete steps (0.2 ms, 0.3 ms, 0.4 ms, 0.5 ms, 0.6 ms, 0.7 ms,
0.8 ms, 0.9 ms, 1 ms).
RELEASE TIME: The expander release time (RLSE) can be adjusted within a 10 ms through
10 s range, in discrete steps (10 ms, 20 ms, 30 ms, 50 ms, 100 ms, 200 ms,
300 ms, 500 ms, 1 s, 2 s, 3 s, 5 s, 10 s).
THRESHOLD: The expander threshold level (THRS) can be adjusted in 1 dB steps from
0 dB
FS
to –96 dB
FS
.

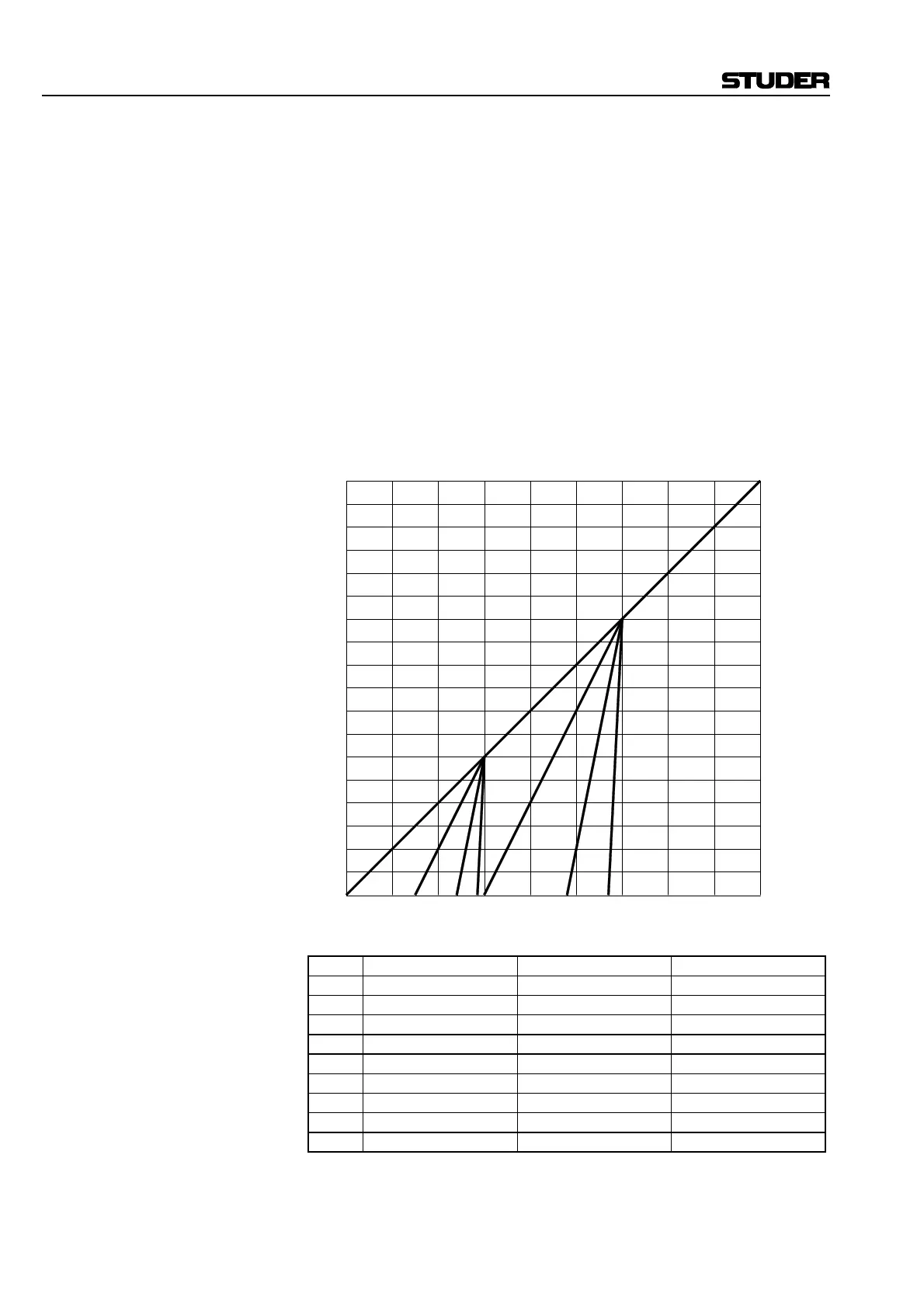

Curve Expander Threshold [dB] Slope
1
OFF any any
1
ON –96 any
1
ON –30 1:1
2
ON –60 2:1
3
ON –60 5:1
4
ON –60 20:1
5
ON –30 2:1
6
ON –30 5:1
7
ON –30 20:1
0
–5
–10
–15
–20
–25
–30
–35
–40
–45
–50
–55
–60
–65
–70
–75
–80
–85
–90
–10
–20
–30
–40
–50
–60
–70
–80
–90
0
Input level
[dBFS]
Output level
[dBFS]
2 3 4 5 6 71
