D950/Vista Digital Mixing System
Date printed: 05.08.03 SW V3.3 ConfigTool 7-21

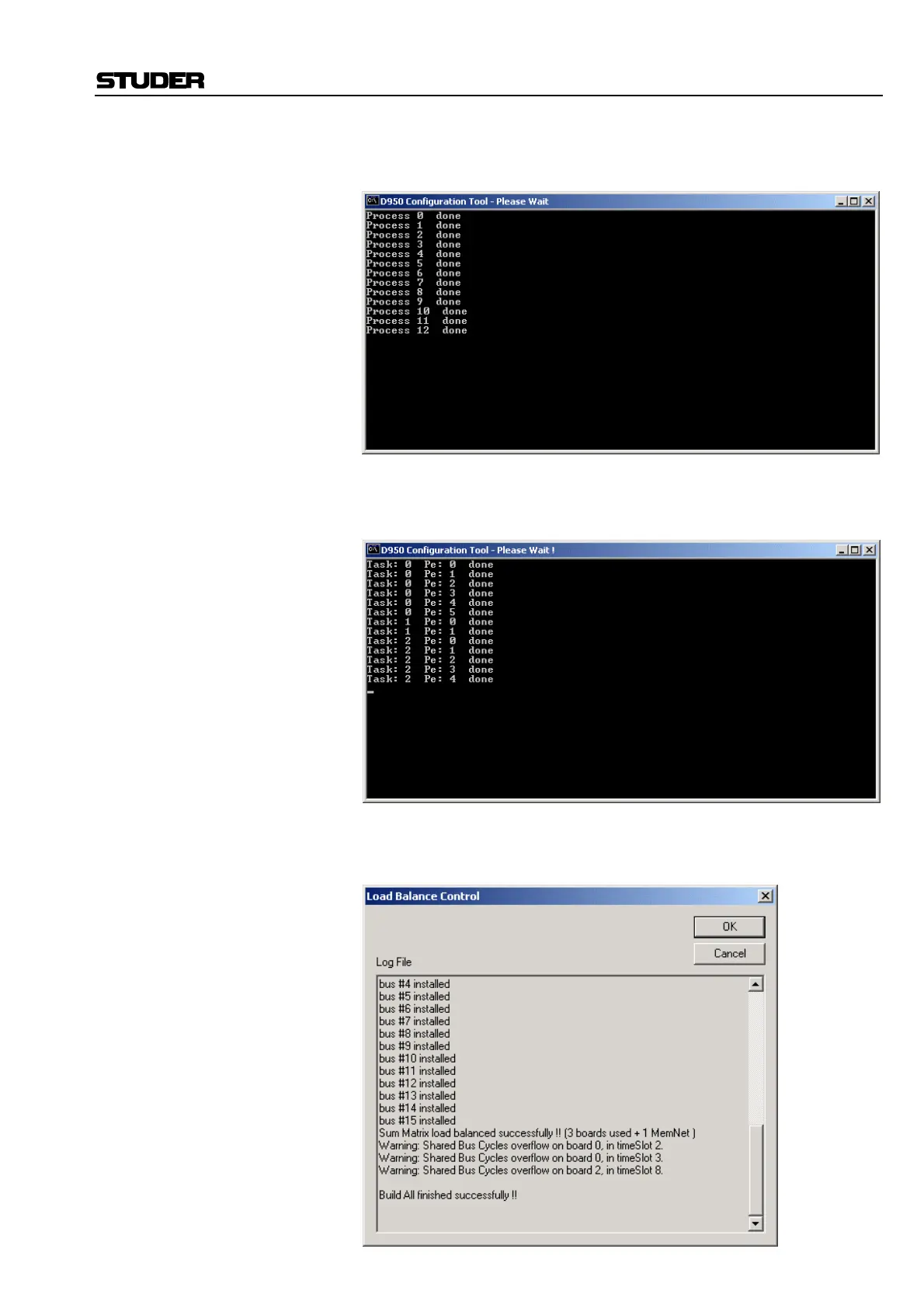

Compile Processes A DSP compiler/assembler generates all the individual DSP files needed to
perform EQ, Dynamics, Summing, etc.
First all channels and then all the summing buses are allocated to the re-
quired DSP board processors. Then the final core file is assembled from
individual components:
Finished ... And finally, the finished core and core knowledge files are automatically
stored. You only have to click OK to finish the whole process after the
message “Build All finished successfully!”.
