D950 Digital Mixing System
Date printed: 03.09.03 SW V3.3 Desk Operation 3-23

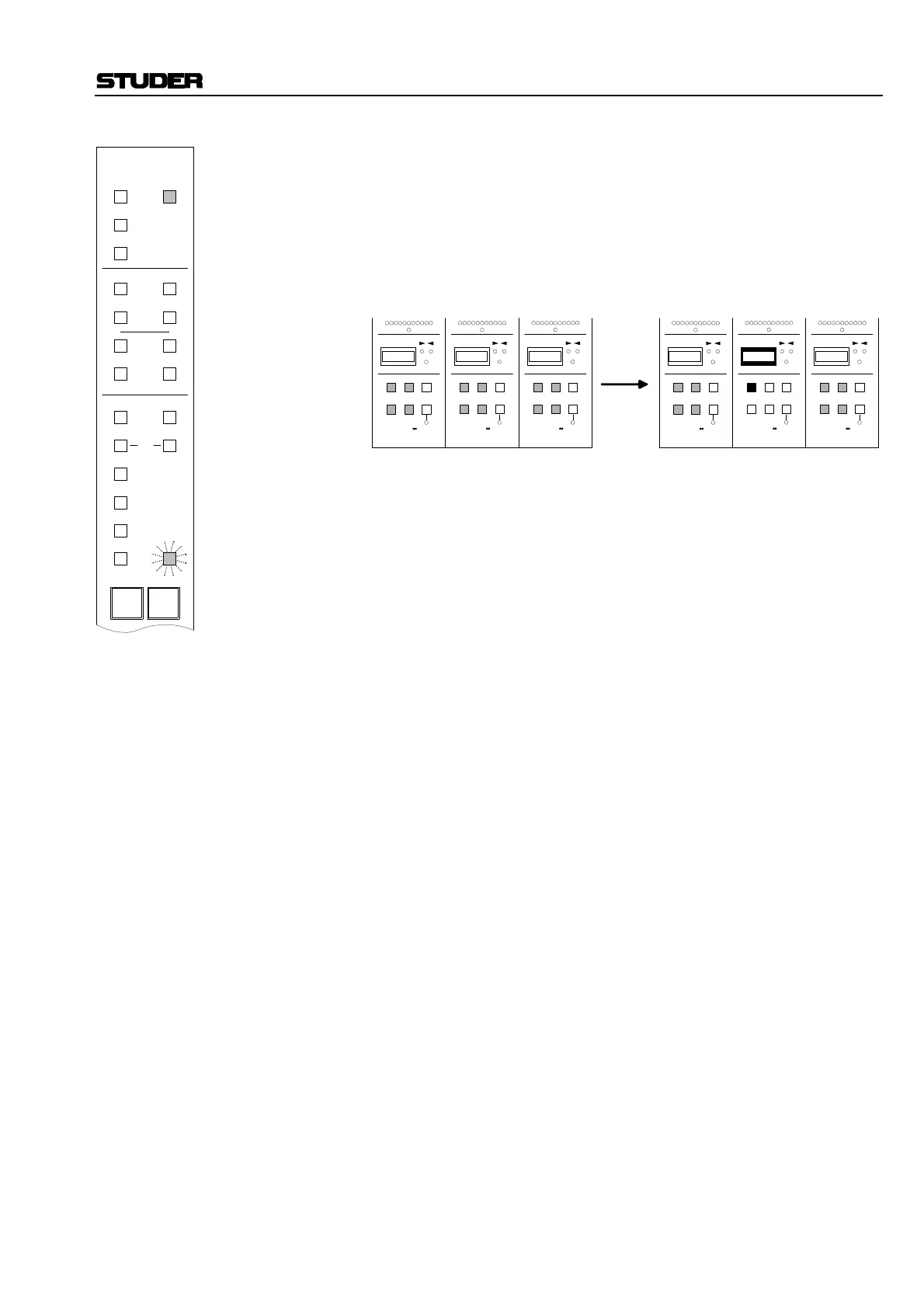

Example: Local assignment and adjustment
• Press ASN SEL on the channel strip; the ASN SEL key will flash.
The flashing ASN SEL key indicates a select assignment mode.
• Press DIR OUT on the channel strip to control the Direct Output’s pa-
rameter.
• Pressing the SW key will toggle the Direct Output on and off.
• The rotary encoder will control the Direct Output level between –∞ dB
and +10 dB.
