Networking Reference
Humphrey Field Analyzer II-
i
series User Manual 2660021145640 A
I-22
Setting Up Exporting to Non-DICOM EMR/PMS Systems and
DICOM Systems using DICOM Gateway 1.0
Note: It is strongly recommended that you use the
EasyConnect
RCT in Easy Mode instead of
manually configuring your network settings on your HFA II-
i
instruments (see “EasyConnect RCT
1.0,” on page G-1).
HFA-NET Pro is a licensed software utility that allows you to export information from your HFA II-
i
to
either a non-DICOM Electronic Medical Records (EMR) system or Patient Management System
(PMS). To use HFA-NET Pro to export data and image files from the HFA II-
i
to EMR or a PMS, it is
necessary for you to have licensed HFA-NET Pro on your HFA II-
i
with Carl Zeiss Meditec and to have
an operational EMR/PMS that is compatible with the HFA II-
i
.
Once you have purchased and licensed the DICOM Gat
eway 1.0, and purchased and installed a
DICOM system, see the
HFA II-i DICOM Gateway 1.0 User Manual
for detailed procedures to install
and configure your DICOM Gateway 1.0 software.
Once you have licensed HFA-NET Pro and purchased and
licensed the DICOM Gateway 1.0, and
purchased and installed an EMR system or a PMS, you can use the following steps to set up the
EMR/PMS Export feature.
1 Select MAIN MENU>
SYSTEM SETUP
>COMMUNICATIONS SETUP>EMR/PMS EXPORT SETUP to
reach the screen that is shown in Figure I.26.

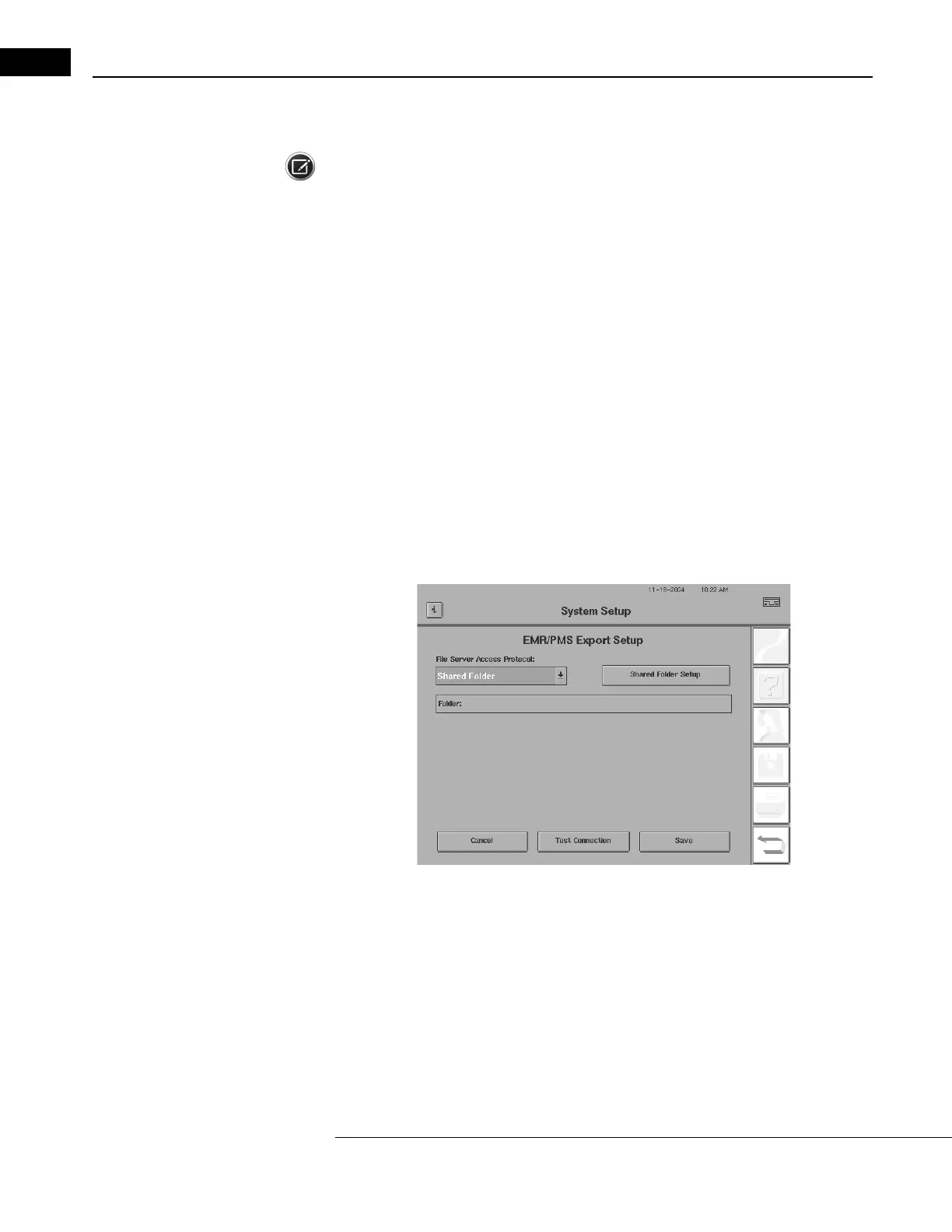

Figure I.26 EMR/PMS Export Setup Screen
2 In the File Server Access Protocol drop-down box, select either FTP or Shared Folder. If you
selected FTP, go to “Setting Up FTP,” on page I-9. If you selected Shared Folder, go to “Setting
Up a Shared Folder,” on page I-11. Upon completion of one of those setup procedures, press
SAVE.
