General Operation
Humphrey Field Analyzer II-
i
series User Manual 2660021145640 A
2-16
Note: The time and date display appears in the upper right-hand corner of the screen, in the format
specified above.
Printing or Saving the System Log
1 Start at the System Setup screen. Select PRINT/SAVE SYSTEM LOG.
2 The instrument will automatically start to print the System Log if you press PRINT.
Note: The length of time to print the log will vary, depending on
the size of the system log.
The System Log can also be saved to a USB storage device as a text file,
which can be read on a
computer.
1 Start at the System Setup screen. Select PRINT/SAVE SYSTEM LOG.
2 Insert a USB storage device into a USB port on the HFA II-
i
.
3 Press SAVE. A dialog appears prompting you to select a USB storage device (Figure 2.7).

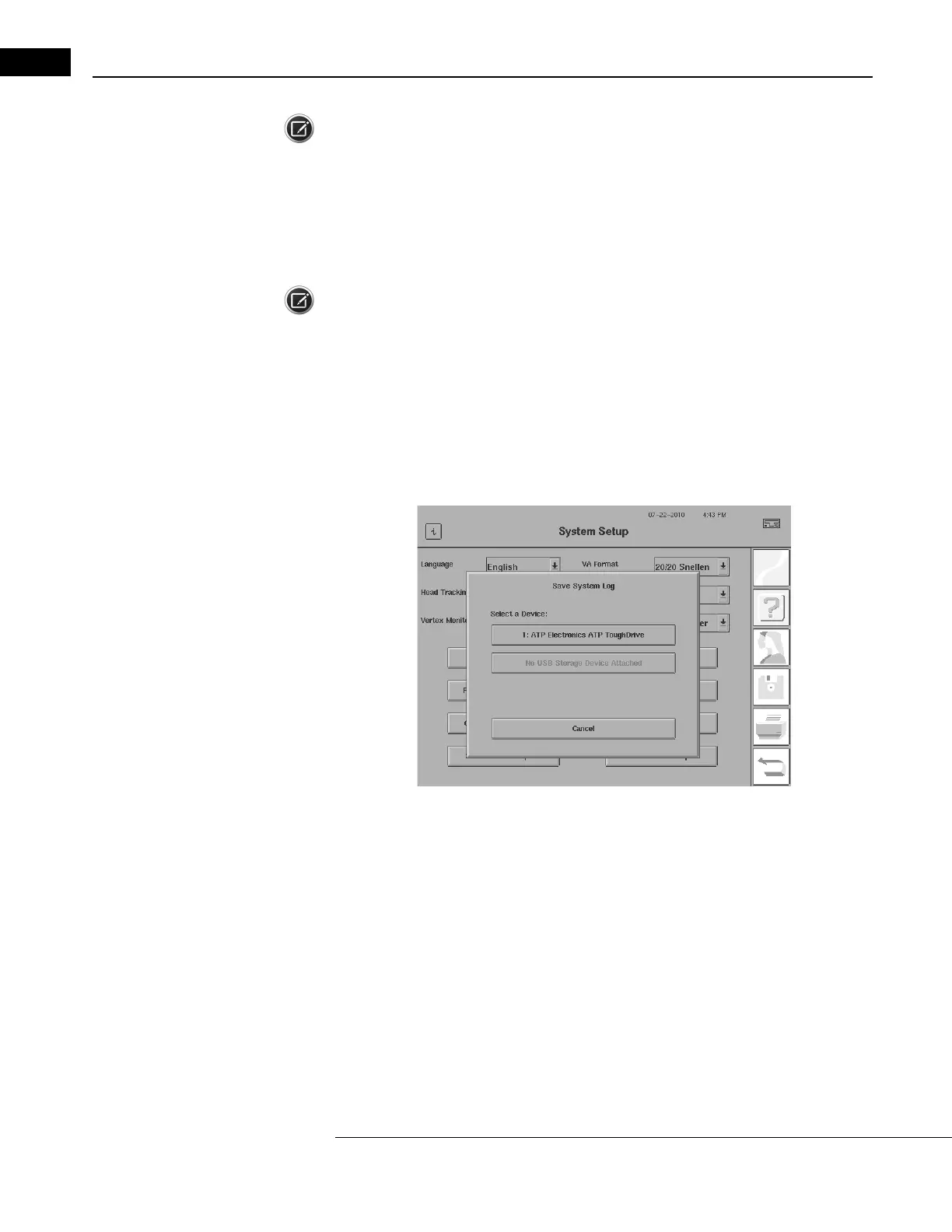

Figure 2.7 Save System Log Dialog
4 Select the desired USB storage device by pressing the button with its device name.
5 The System Log is saved as a text file with the name “syslog.txt” to the “.../hfa/log” folder of
the selected USB storage device. If a previous System Log has been saved to this USB storage
device, old logs will be renamed “syslog.bk1”, “syslog.bk2”, etc. All logs can be opened with a
standard text editor.
