DICOM Gateway 2.0 (Optional)
Humphrey Field Analyzer II- i series User Manual 2660021145640 A
H-4
7 Enter a unique AE Title for each HFA instrument. Input a total of up to 16 characters and
spaces, using the pop-up keyboard. Press ENTER.
Input your DICOM Gateway settings:
8 Select IP ADDRESS.
9 Input the IP Address of the HFA Gateway Computer (the computer where you installed the
DICOM Gateway 2.0 software), using the pop-up keypad. Press ENTER.
10Select PORT.
11Input the Port Number (the number entered in the Gateway Port of the DICOM Gateway 2.0
software), using the pop-up keypad. Press ENTER.
Enable/Disable DICOM Ga
teway Services:
12Select SERVICES to display the DICOM Gateway Services screen (Figure H.2).

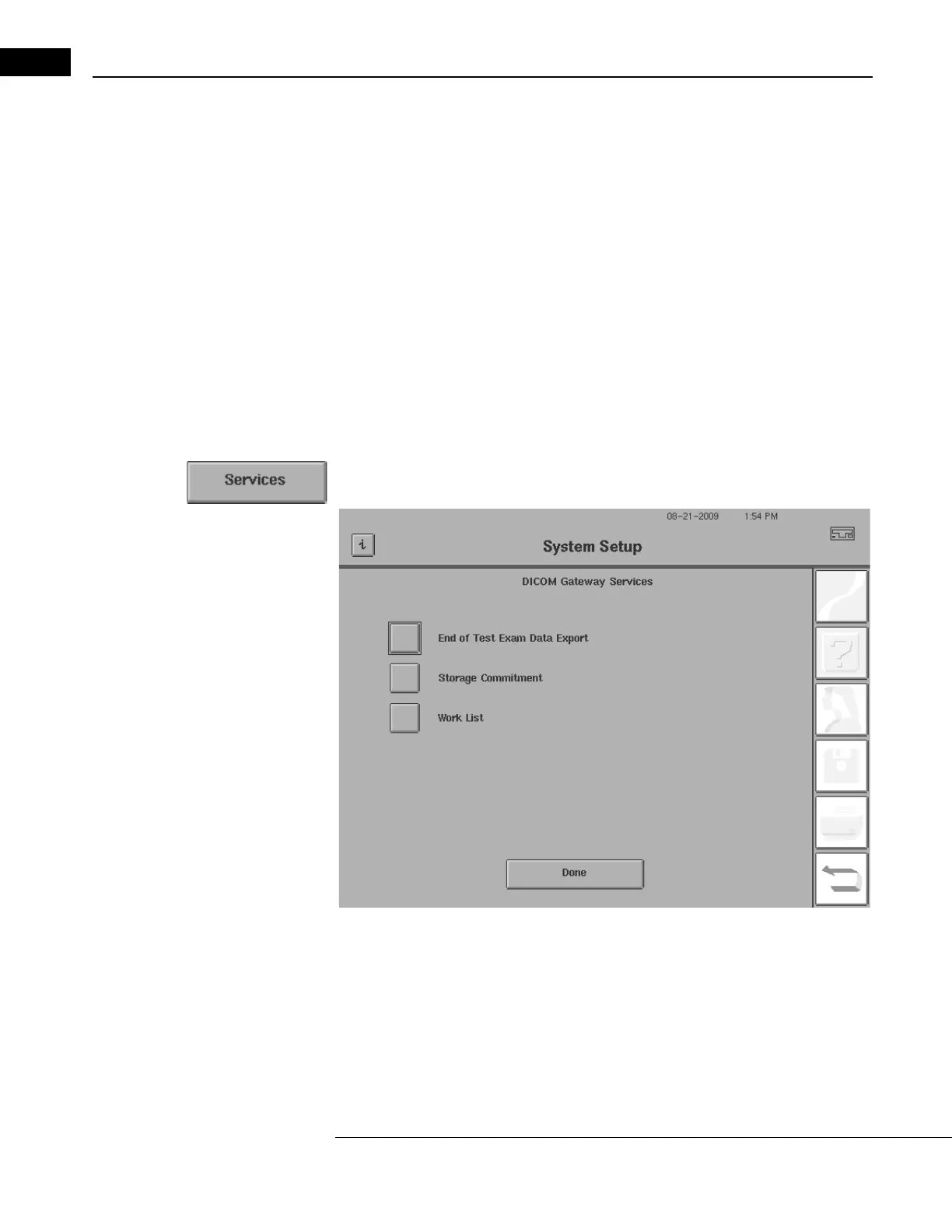

Figure H.2 DICOM Gateway Services Screen
To enable a service, click the button next to service so that an “X” is displayed. Select DONE to
return to the DICOM Gateway Setup screen. Your selections will only be saved when you select
SAVE on the DICOM Gateway Setup screen.
• END OF TEST EXAM DATA EXPORT 
Enable this service if you wish to automatically export raw IOD exam data to the DICOM
storage provider at the end of an exam (when the exam is saved). Enabling this will also
automatically retrieve new raw exam data and GPA Exam Selection from the DICOM Archive for
the patient taking the exam.
