Humphrey Field Analyzer II-
i
series User Manual 2660021145640 A
Care and Cleaning
15-9
Operating the Printrex Printer
The operating instructions for the Printrex Thermal Line printer are given below. When you see the
red stripe appear on the printout, it is time to change the paper roll.
Note: If you are using an optional HP LaserJet or LaserJet-c
ompatible printer, refer to the printer
documentation for operating instructions.

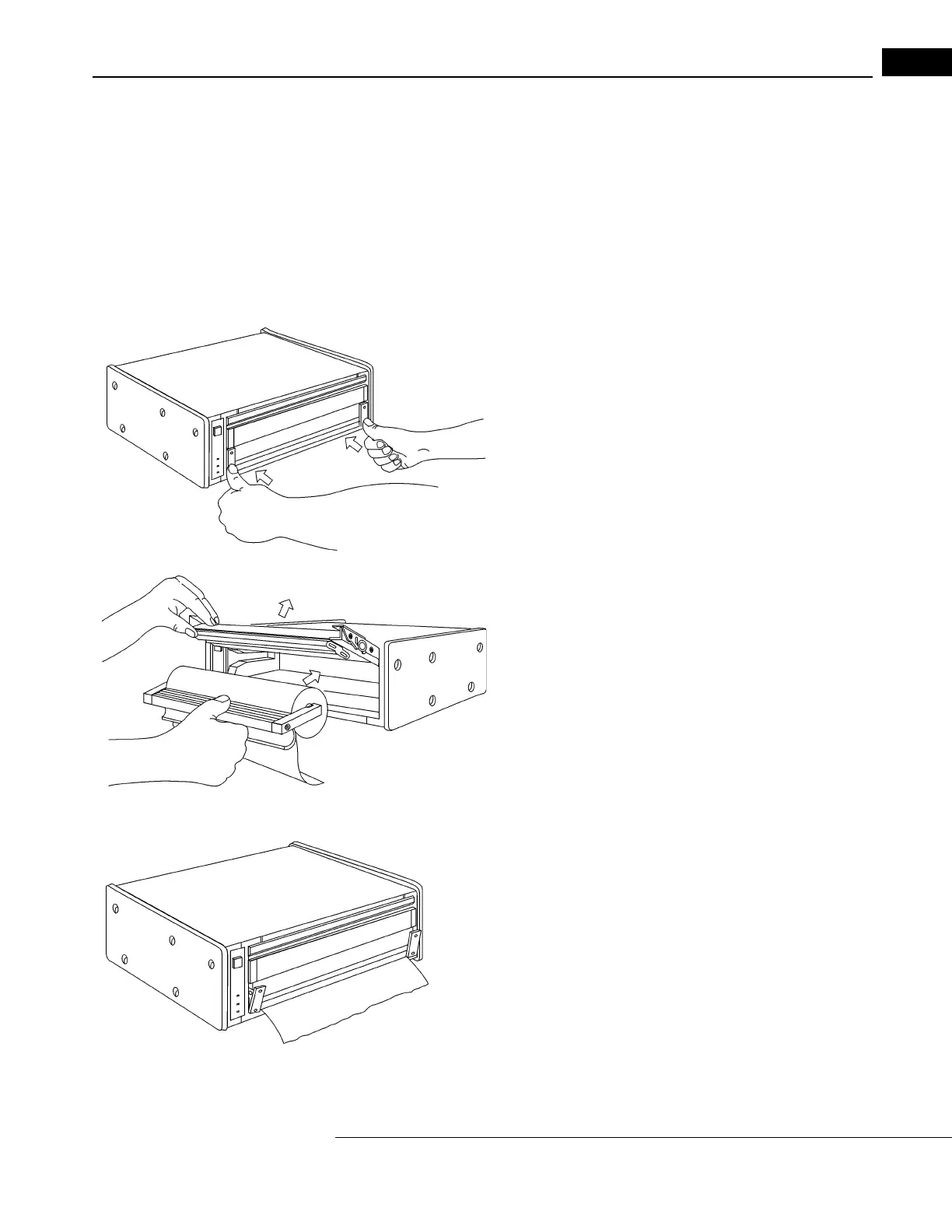

Loading Paper
Loading paper is extremely simple because it does not have to
be threaded or aligned.
1Unlock the door of the printer by pressing on the open circles
printed on the two latches at the lower corners of the door. Pull up
on the latches to open the door.
2Remove the paper roll holder from the printer and remove the
paper roll bar from the holder. Slip the empty core off the bar.
3Slip the paper roll bar through the core of the new paper roll and
install the paper roll on the holder so the paper feeds from the top of
the roll toward the front of the holder. Feed a few inches of paper
from the roll so it will extend over the platen after insertion.
4Insert the paper roll in the printer and close the door with the
latches unlocked. Press on the solid circles printed on the door
latches to lock them. The Paper Empty and Error lights should go out
when the door is latched.
5Tear off the extra paper. For best results, hold the paper up at a
45 degree angle and tear from the right or left.
