Humphrey Field Analyzer II- i series User Manual 2660021145640 A
Setting-Up Tests
3-17

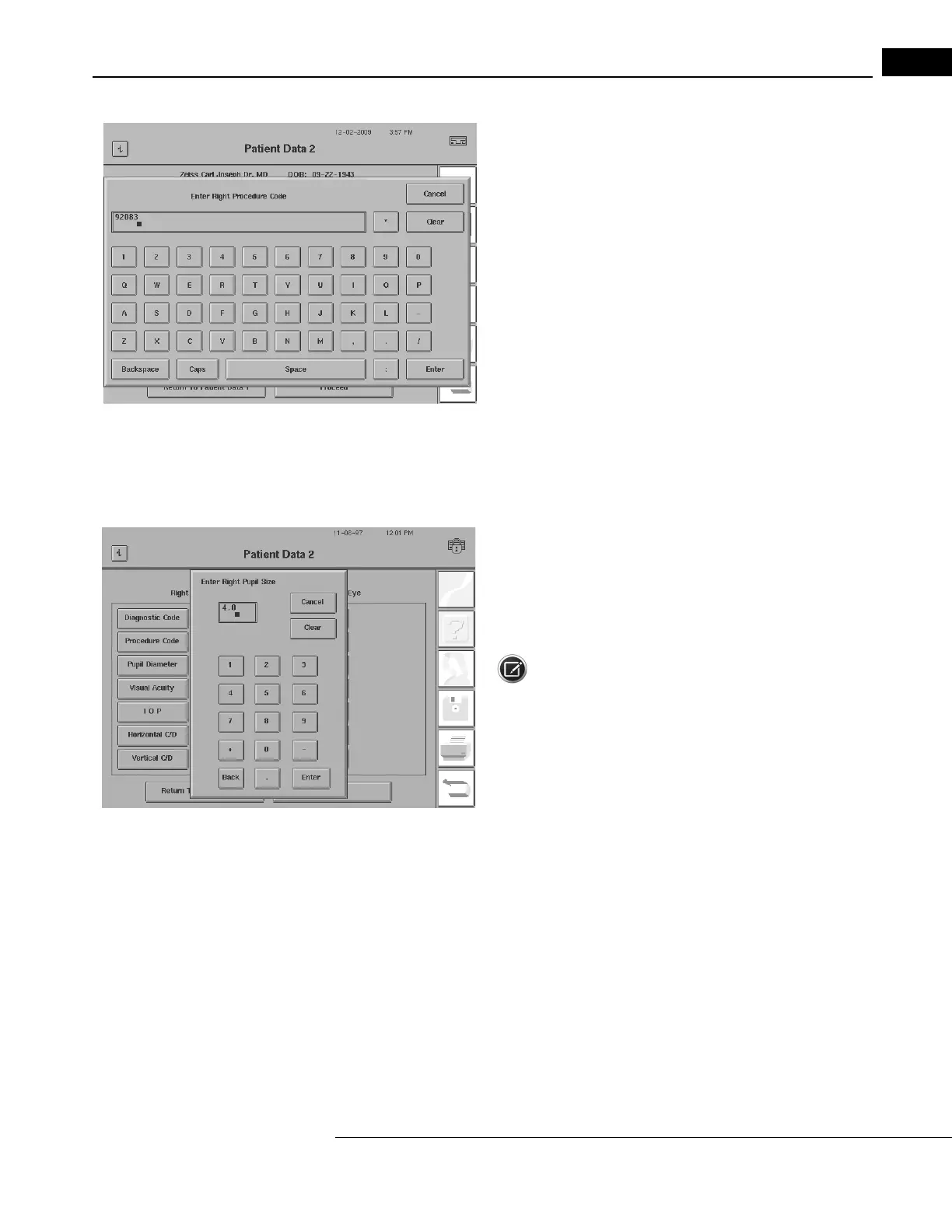

5Enter up to 14 characters from the pop-up keyboard, then ENTER.
6Repeat Steps 4-5 for the other eye.
Entering Pupil Diameter and Visual Acuity
1 From the Patient Data 2 screen, choose PUPIL DIAMETER.
2Enter up to 4 characters (0 to 14.5; a decimal point counts as one
character) from the pop-up keypad, then ENTER.
3Repeat Steps 1-2 for the other eye. The pupil diameter value will
also appear on the printout.
Note: If you are using the Autopupil feature (Model 750
i
only), you need not enter a pupil diameter. The automatic pupil
measurement will be entered and noted with an asterisk (*) on the
Patient Data 2 screen. You must have initialized Gaze Tracking for
Autopupil to work.
4From the Patient Data 2 screen, choose VISUAL ACUITY.
